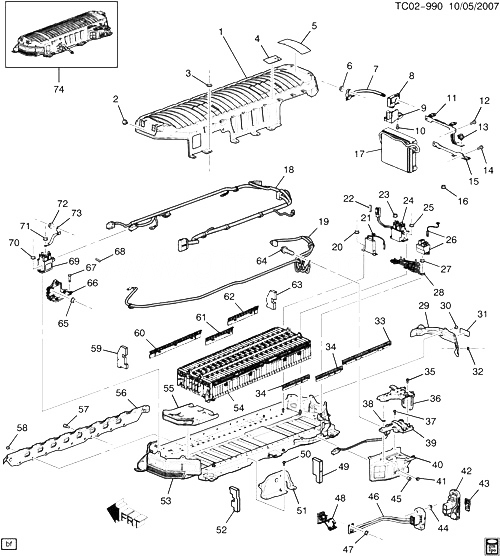

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, BAT (*KIT2) |
|
2008-2009 |
|
| 002 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 003 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 004 |
25788330 |
LABEL, BAT DISPOSAL (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 005 |
15906947 |
LABEL, HIGH VOLTAGE CONN CAUTION (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 006 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 007 |
|
CABLE, BAT (*KIT2) |
|
2008-2009 |
|
| 008 |
25870512 |
SENSOR, DRV MOT BAT CUR (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 009 |
|
BRACKET, BAT CUR (*KIT2) |
|
2008-2009 |
|
| 010 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 011 |
|
BRACKET, BAT CUR (*KIT2) |
|
2008-2009 |
|
| 012 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 013 |
25925265 |
CLIP, BAT CBL (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 013 |
25925268 |
CLIP, BAT CBL (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
04 |
| 014 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 015 |
|
BRACKET, BAT CUR (*KIT2) |
|
2008-2009 |
|
| 016 |
|
ГАЙКА, DRV MOT BAT CBL TERM (*KIT2) |
|
2008-2009 |
|
| 017 |
20805382 |
MODULE, DRV MOT GEN BAT CONT (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 017 |
25870516 |
MODULE, DRV MOT GEN BAT CONT (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 018 |
|
HARNESS, DRV MOT BAT CONT MDL (СМ. ГРУППУ 02.000 АККУМУЛЯТОР/DRIVE MOTOR ЧАСТЬ 1 ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (*KIT1, KIT2) |
|
2008-2009 |
|
| 019 |
|
HARNESS, DRV MOT BAT POS NEG CBL (*KIT1, KIT2) |
|
2008-2009 |
|
| 020 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 021 |
25870514 |
RESISTOR, DRV MOT BAT INV CUR LIM (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 023 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 024 |
25870515 |
RELAY, DRV MOT BAT POS HIGH VOLTAGE CONTACTOR (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 025 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 026 |
25871271 |
RELAY, DRV MOT PWR INV CUR LIM (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 027 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 028 |
|
RELAY, DRV MOT BAT POS (*KIT2) |
|
2008-2009 |
|
| 029 |
25926175 |
COVER, DRV MOT BAT (RIGHT SIDE) (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 030 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 031 |
15906948 |
LABEL, BAT WRNG (LOCATED ON АККУМУЛЯТОР) (*KIT2) |
CK1 (06-43) (HP2) |
2008-2009 |
01 |
| 031 |
25954276 |
LABEL, BAT WRNG (FIRST RESPONDER CAUTION LABEL) (*KIT2) |
CK1 (HP2) |
2008-2009 |
01 |
| 032 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 033 |
|
COVER, BAT TERM (*KIT1, KIT2) |
|
2008-2009 |
|
| 034 |
|
COVER, BAT TERM (*KIT1, KIT2) |
|
2008-2009 |
|
| 035 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (BAT NEG CBL TERM) (*KIT1, KIT2)
|
2008-2009 |
04 |
|
| 036 |
25905443 |
COVER, BAT NEG CBL TERM (HIGH VOLTAGE TERMINAL COVER LABELED 5443) (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 037 |
|
БОЛТ, DRV MOT BAT (*KIT1, KIT2) |
|
2008-2009 |
|
| 038 |
|
ГАЙКА, DRV MOT BAT (*KIT1, KIT2) |
|
2008-2009 |
|
| 039 |
|
EXTENSION, DRV MOT BAT CBL TERM (*KIT1, KIT2) |
|
2008-2009 |
|
| 040 |
25925282 |
ШЛАНГИ, DRV MOT BAT HIGH VOLTAGE MAN DISCONNECT KNOB (*KIT1, KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 041 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 042 |
15293650 |
LEVER, DRV MOT BAT HIGH VOLTAGE MAN DISCONNECT (INCLS 43) (*KIT2) |
CK1 (HP2) |
2008-2009 |
01 |
| 043 |
|
LABEL, HIGH VOLTAGE DISCONNECT (PART OF 42) (*KIT2) |
|
2008-2009 |
|
| 044 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 045 |
|
RETAINER, BAT CBL TERM (*KIT2) |
|
2008-2009 |
|
| 046 |
|
CABLE, BAT DISCONNECT SW (*KIT1, KIT2) |
|
2008-2009 |
|
| 047 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 048 |
|
COVER, BAT POS NEG CBL (*KIT2) |
|
2008-2009 |
|
| 049 |
|
SEAL, DRV MOT BAT (*KIT1, KIT2) |
|
2008-2009 |
|
| 050 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 051 |
|
COVER, BAT (*KIT2) |
|
2008-2009 |
|
| 052 |
|
SEAL, DRV MOT BAT (*KIT1, KIT2) |
|
2008-2009 |
|
| 053 |
|
CARRIER, GEN BAT (*KIT2) |
|
2008-2009 |
|
| 054 |
|
АККУМУЛЯТОР, DRV MOT GEN (*KIT1, KIT2) |
|
2008-2009 |
|
| 055 |
|
DUCT, DRV MOT BAT CLG AIR INL (СМ. ГРУППУ 02.000 АККУМУЛЯТОР/DRIVE MOTOR ЧАСТЬ 1 ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (*KIT1, KIT2) |
|
2008-2009 |
|
| 056 |
25926173 |
COVER, DRV MOT BAT (FRT) (*KIT2) |
CK1 (06) (HP2) |
2008-2009 |
01 |
| 057 |
|
RETAINER, BAT (*KIT2) |
|
2008-2009 |
|
| 058 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 059 |
|
SEAL, DRV MOT BAT (*KIT1, KIT2) |
|
2008-2009 |
|
| 060 |
|
COVER, BAT TERM (*KIT1, KIT2) |
|
2008-2009 |
|
| 061 |
|
COVER, BAT TERM (*KIT1, KIT2) |
|
2008-2009 |
|
| 062 |
|
COVER, BAT TERM (*KIT1, KIT2) |
|
2008-2009 |
|
| 063 |
|
SEAL, DRV MOT BAT (*KIT1, KIT2) |
|
2008-2009 |
|
| 064 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 065 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 066 |
|
RELAY, DRV MOT BAT NEG (*KIT2) |
|
2008-2009 |
|
| 067 |
|
БОЛТ, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 068 |
|
RETAINER, BAT (*KIT2) |
|
2008-2009 |
|
| 069 |
|
RELAY, DRV MOT BAT NEG HIGH VOLTAGE CONTACTOR (*KIT2) |
|
2008-2009 |
|
| 070 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 071 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 072 |
|
ГАЙКА, DRV MOT BAT (*KIT2) |
|
2008-2009 |
|
| 073 |
|
CABLE, DRV MOT BAT NEG RLY (*KIT1, KIT2) |
|
2008-2009 |
|
| 074 |
|
АККУМУЛЯТОР, DRV MOT GEN (SEE ЧАСТЬ 1 FOR ADDITIONAL COMPONENTS) (*KIT2) |
|
2008-2009 |
|
| K02 |
19180442 |
АККУМУЛЯТОР KIT, DRV MOT (INCLS COMPLETE АККУМУЛЯТОР ASM, NEG TERM CVR 4 SCREWS) (INCLS 74) |
CK1 (06) (HP2) |
2008-2009 |
01 |
