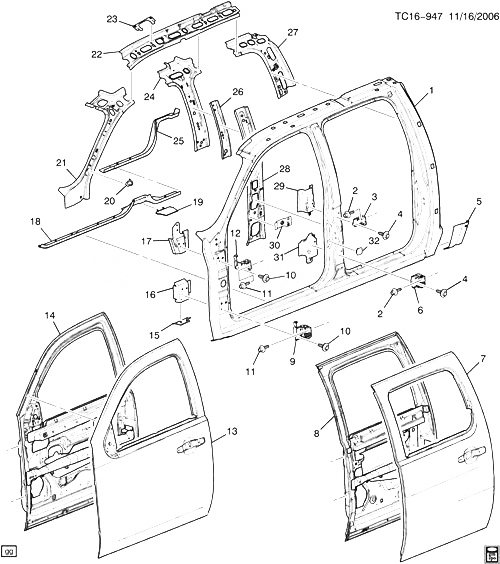

(TC16-947) - 2007-2009 CK109,2(06-36) КУЗОВНЫЕ ДЕТАЛИ SIDE FRONT CADILLAC - ESCALADE EXT (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25775329 FRAME, S/D OPG (INCLS 16, 17, 29, 31) CK1 (36) 2007-2009 01
001 25775330 FRAME, S/D OPG (INCLS 16, 17, 29, 31) CK1 (36) 2007-2009 01
002 11609733 БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/D HGE (DR SI)) 2007-2009 06
003 25854397 HINGE, RR S/D UPR (BODY DR SIDE) (REPL T/W 11562286 - QTY 1) CK1, 2, 3 2007-2009 01
003 25854398 HINGE, RR S/D UPR (BODY DR SIDE) (REPL T/W 11562286 - QTY 1) CK1, 2, 3 2007-2009 01
004 11609733 БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/D HGE (BODY SI)) 2007-2009 08
005 15202518 EXTENSION, RR S/D OPG FRM CK1, 2 (06-36) 2007-2009 01
005 15202519 EXTENSION, RR S/D OPG FRM CK1, 2 (06-36) 2007-2009 01
006 25958200 HINGE, RR S/D LWR (BODY DR SIDE) CK1, 2, 3 2007-2009 01
006 25958201 HINGE, RR S/D LWR (BODY DR SIDE) CK1, 2, 3 2007-2009 01
007 20773440 PANEL, RR S/D OTR (PART OF 8) CK109 (36) (MSL, Z75) 2007-2009 01
007 20773441 PANEL, RR S/D OTR (PART OF 8) CK109 (06-36) (Z75) 2008-2009 01
008 15907036 DOOR, RR SI (INCLS 7) (W/O HINGES) CK109 (06-36) (Z75) 2007-2009 01
008 15907037 DOOR, RR SI (INCLS 7) (W/O HINGES) CK109 (06-36) (Z75) 2007-2009 01
009 25958196 HINGE, FRT S/D LWR (BODY DR SIDE) CK1, 2, 3 2007-2009 01
009 25958197 HINGE, FRT S/D LWR (BODY DR SIDE) CK1, 2, 3 2007-2009 01
010 11609733 БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (FRT S/D HGE (BODY SI)) 2007-2009 12
011 11609733 БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (FRT S/D HGE (DR SI)) 2007-2009 06
012 25854415 HINGE, FRT S/D UPR (BODY DR SIDE) (REPL T/W 11562286 - QTY 1) CK1, 2, 3 2007-2009 01
012 25854416 HINGE, FRT S/D UPR (BODY DR SIDE) (REPL T/W 11562286 - QTY 1) CK1, 2, 3 2007-2009 01
013 25891763 PANEL, FRT S/D OTR (PART OF 14) CK1, 2 (06-36) (Z75) 2009-2009 01
013 25891764 PANEL, FRT S/D OTR (PART OF 14) CK1, 2 (06-36) (Z75) 2009-2009 01
014 15228568 DOOR, FRT SI (INCLS 13) (W/O HINGES) CK1, 2 (06-36) (Z75) 2007-2009 01
014 25912653 DOOR, FRT SI (INCLS 13) (W/O HINGES) CK1, 2 (06-36) (Z75) 2007-2009 01
015 15837057 INSULATOR, S/D OPG FRM (LWR FRT BODY H-PLR) CK1, 2, 3 2007-2009 01
015 15837058 INSULATOR, S/D OPG FRM (LWR FRT BODY H-PLR) CK1, 2, 3 2007-2009 01
016 REINFORCEMENT, FRT S/D OPG FRM HGE (LWR) (PART OF 1) 2007-2009
017 REINFORCEMENT, FRT S/D OPG FRM HGE (UPR) (PART OF 1) 2007-2009
018 15290493 EXTENSION, FLR PNL (FRT) CK1, 2 (06-36) 2007-2009 01
018 25815106 EXTENSION, FLR PNL (FRT) CK1, 2 (06-36) 2007-2009 01
019 25858298 SEAL, C/PLR LWR CK1 (06-36-43) 2007-2009 01
019 25858299 SEAL, C/PLR LWR CK1 (06-36-43) 2007-2009 01
020 SEAL, FRT S/D OPG FRM FIL PNL 2007-2009
021 10393085 REINFORCEMENT, FRT S/D OPG FRM CK1, 2 (06-36) 2007-2009 01
021 10393086 REINFORCEMENT, FRT S/D OPG FRM CK1, 2 (06-36) 2007-2009 01
022 15793533 RAIL, RF SI (INCLS 23) CK109, 2 (06-36) 2007-2009 01
022 15793534 RAIL, RF SI (INCLS 23) CK109, 2 (06-36) 2007-2009 01
023 REINFORCEMENT, RF INR S/RL (PART OF 22) 2007-2009
024 15902386 PANEL, C/PLR INR (INCLS 26) (AT MIDGATE) CK1 (36) 2007-2009 01
024 15902387 PANEL, C/PLR INR (INCLS 26) (AT MIDGATE) CK1 (36) 2007-2009 01
025 15290494 EXTENSION, FLR PNL (REAR) (INCLS STUD) CK1 (36) 2007-2009 01
025 25815109 EXTENSION, FLR PNL (RR) (W/STUD) CK1 (36) 2007-2009 01
026 REINFORCEMENT, D/SEAT SHLDR BELT GDE (PART OF 24) 2007-2009
028 25918297 PANEL, C/PLR INR LWR (INCLS 30) CK1, 2 (06-36) 2007-2009 01
028 25918298 PANEL, C/PLR INR LWR (INCLS 30) CK1, 2 (06-36) 2007-2009 01
029 REINFORCEMENT, C/PLR UPR (PART OF 1) 2007-2009
030 REINFORCEMENT, C/PLR INR PNL LWR (PART OF 28) 2007-2009
031 REINFORCEMENT, C/PLR LWR (PART OF 1) 2007-2009
032 15232690 PLUG, BODY SI FRM ACC HOLE (SQUARE) CK1, 2 (06-36) 2007-2009 02
