| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

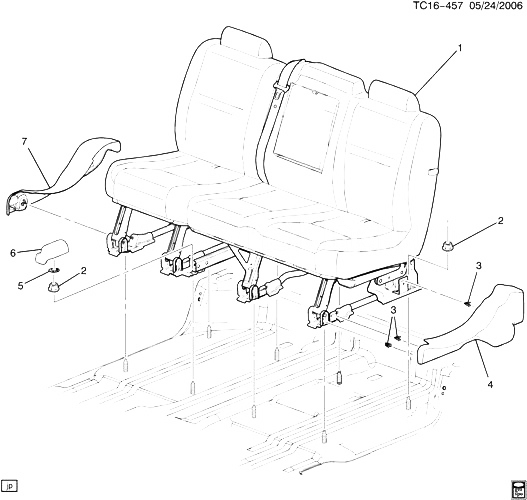

| 001 |
|
SEAT, RR (СМ. ГРУППУ 16.000 ЗАДНЕЕ СИДЕНЬЕ/BUCKET ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 002 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) |
|
2007-2009 |
08 |
| 003 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 4) |
K109 (36) (Z75) |
2007-2009 |
03 |
| 004 |
15270680 |
PANEL, R/SEAT FLR FIL TR (INCLS 3) (EBONY) |
CK1 (36) (Z75, 19I) |
2007-2009 |
01 |
| 004 |
25906785 |
PANEL, R/SEAT FLR FIL TR (INCLS 3) (CASHMERE) |
CK1 (36) (Z75, 39I) |
2009-2009 |
01 |
| 005 |
11502737 |
ГАЙКА, PUSH ON, M12X1.75, PC (PART OF 6) |
|
2007-2009 |
01 |
| 006 |
15261357 |
COVER, R/SEAT HGE STUD FIN (INCLS 5) (EBONY) (INBOARD) |
CK1 (36) (AT5, 19I, 22I, 84I) |
2007-2009 |
01 |
| 006 |
15261358 |
COVER, R/SEAT HGE STUD FIN (INCLS 5) (CASHMERE) (INBOARD) |
CK1 (36) (AT5, 31I, 33I, 39I) |
2007-2009 |
01 |
| 006 |
15261359 |
COVER, R/SEAT HGE STUD FIN (INCLS 5) (TITANIUM) (INBOARD) |
CK1 (36) (AT5, 83I) |
2007-2009 |
01 |
