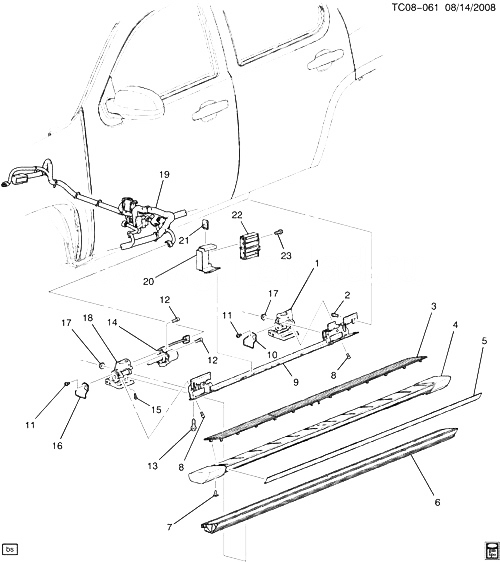

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15806409 |
BRACKET, ASST STEP (BRKT USED ON RR END OF ASSIST STEP) |
CK109 (06-36) (BRS) |
2009-2009 |
01 |
| 001 |
15806411 |
BRACKET, ASST STEP (USED IN ASM W/O MOTOR) (RR LWR) |
CK109 (06-36) (BRS) |
2009-2009 |
01 |
| 002 |
11609733 |
БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP)
|
2009-2009 |
08 |
|
| 003 |
15806414 |
PAD, ASST STEP |
CK109 (06-36) (BRS, Y91) |
2009-2009 |
02 |
| 004 |
15806403 |
COVER, ASST STEP FIN (INCLS 5) (INCLS INSERT) |
CK109 (06-36) (BRS, Y91) |
2009-2009 |
01 |
| 004 |
15806404 |
COVER, ASST STEP FIN (INCLS 5) (INCLS INSERT) |
CK109 (06-36) (BRS, Y91) |
2009-2009 |
01 |
| 005 |
|
INSERT, ASST STEP (PART OF 4) |
|
2009-2009 |
|
| 006 |
25971281 |
STEP, ASST |
CK109 (06-36) (BRS) |
2009-2009 |
02 |
| 007 |
15872198 |
БОЛТ, ASST STEP FIN CVR |
CK1 (06-36) (BRS) |
2009-2009 |
04 |
| 008 |
11609733 |
БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (ASST STEP)
|
2009-2009 |
06 |
|
| 009 |
15871285 |
BRACKET, ASST STEP CTR (INCLS 20) |
CK109 (06-36) (BRS) |
2009-2009 |
01 |
| 009 |
15871286 |
BRACKET, ASST STEP CTR |
CK109 (06-36) (BRS) |
2009-2009 |
01 |
| 010 |
15932167 |
SHIELD, ASST STEP (FRT) |
CK109 (06-36) |
2009-2009 |
01 |
| 010 |
15932168 |
SHIELD, ASST STEP (FRT) |
CK109 (06-36) |
2009-2009 |
01 |
| 011 |
11570190 |
БОЛТ, ASST STEP SHLD
| CK109 (06-36) |
2009-2009 |
04 |
|
| 012 |
|
БОЛТ, ASST STEP MTR) (PART OF 14) |
|
2009-2009 |
|
| 013 |
11569755 |
BOLT- HEX W/CON WA, M8X1.25X20, 10 THD, 24 OD, 8.8, GMW4205, M-PT (ASST STEP)
|
2009-2009 |
08 |
|
| 014 |
25971282 |
MOTOR, ASST STEP (INCLS 12) |
CK1 (06-36) (BRS) |
2009-2009 |
01 |
| 014 |
25971283 |
MOTOR, ASST STEP (INCLS 12)
| CK1 (06-36) (BRS) |
2009-2009 |
01 |
|
| 015 |
11570190 |
БОЛТ, ASST STEP BRKT
| CK109 (06-36) (BRS) |
2009-2009 |
08 |
|
| 016 |
15932169 |
SHIELD, ASST STEP (RR) |
CK109 (06-36) (BRS) |
2009-2009 |
01 |
| 016 |
15932170 |
SHIELD, ASST STEP (RR) |
CK109 (06-36) (BRS) |
2009-2009 |
01 |
| 017 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (ASST STEP) |
|
2009-2009 |
06 |
| 019 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2009-2009 |
|
| 020 |
|
BRACE, ASST STEP FRT SUPT (BRACKET, MOTOR MODULE) (PART OF 9)) |
|
2009-2009 |
|
| 021 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (ASST STEP BRKT) (ACDelco #11513599) |
|
2009-2009 |
02 |
| 022 |
25852622 |
MODULE, ASST STEP CONT
| CK109 (06-36) |
2009-2009 |
01 |
|
| 023 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ASST STEP)
|
2009-2009 |
02 |
|
