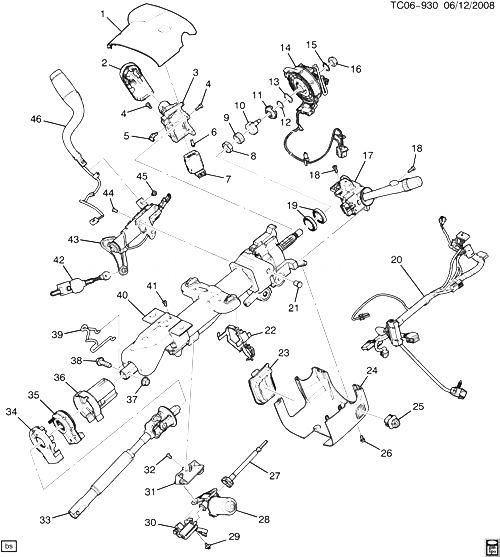

(TC06-930) - 2009 CK1(06-36) РУЛЕВАЯ КОЛОНКА (CADILLAC Z75) CADILLAC - ESCALADE EXT (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15775831 SHROUD, STRG COL (INCLS 24) (TITANIUM) CK1, 2, 3 (83I) 2009-2009 01
001 25797755 SHROUD, STRG COL (INCLS 24) (EBONY) CK1 (36) (Y91) 2009-2009 01
001 25797756 SHROUD, STRG COL (INCLS 24) (COCOA) CK1 (36) (MYC, KA9, Y91, Z75, 39I, 41I) 2009-2009 01
001 25797756 SHROUD, STRG COL (INCLS 24) (COCOA) CK1 (36) (MYC, Y91, 39I, 41I) (EXC KA9) 2009-2009 01
002 25861815 ATTACHMENT KIT, THEFT DTRNT SYS CK1 (06-36) (MYC, Y91, Z75) (EXC KA9) 2009-2009 01
003 26088811 CASE, IGN LK CYL (EXCEPT LK ACTUATOR PASS SENSOR) (PART OF 40) (PASS KEY) CK1, 2, 3 2009-2009 01
004 26036497 БОЛТ, STRG COL LWR TR CVR (PART OF 40) (M5X.8X15) (6.760) CK1, 2, 3 2009-2009 03
005 26082804 RETAINER, A/TRNS PARK LK CBL CK1, 2, 3 2009-2009 01
006 26036496 БОЛТ, STRG COL UPR CVR (M4.55 TAP X15) (2.188) CK1 2009-2009 01
007 25733005 SWITCH, IGN START (ACDelco #D1485F) CK1, 2, 3 2009-2009 01
008 15231641 SEAT, STRG SHF UPR BRG RACE (PART OF 40) CK1, 2, 3 2009-2009 01
009 26055299 ПРУЖИНА, STRG SHF UPR BRG (PART OF 40) CK1, 2, 3 2009-2009 01
010 15775848 CAM, T/SIG SW CANC (PART OF 40) CK1, 2, 3 2009-2009 01
011 26049186 PLATE, T/SIG SW CANC CAM POSN (PART OF 40) (W/SHIELD) (6.521) CK1, 2, 3 2009-2009 01
012 05694191 RING, STRG SHF LK PLT RET (PART OF 40) (6.524) CK1, 2, 3 2009-2009 02
013 26011609 WASHER, STRG WHL INFL RST MDL COIL (14.865) CK1, 2, 3 2009-2009 01
014 15829093 COIL, STRG WHL INFL RST MDL (W/ACSRY CNCT) CK1 (36) (MYC, KA9, Y91) 2009-2009 01
014 15829094 COIL, STRG WHL INFL RST MDL (W/ACSRY CNCT) CK1 (06-36) (MYC) (EXC KA9) 2009-2009 01
014 25966964 COIL, STRG WHL INFL RST MDL (W/ACSRY CNCT) CK1 (06-36) (MYC, KA9, Y91) 2009-2009 01
015 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL COIL RET) 2009-2009 01
016 11609658 ГАЙКА, STRG WHL (M14X1.5, 10THK) (NON FLANGED) (6.518) CK1, 2, 3 2009-2009 01
017 15849313 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (W/O RR WIPER) (2.895) (ACDelco #D6221E) CK1, 2, 3 2009-2009 01
017 15849313 SWITCH, T/SIG HDLP HDLP DIMR WSW WSWA (W/O RR WIPER) (ACDelco #D6221E) CK1, 2, 3 2009-2009 01
018 26036497 БОЛТ, HDLP DIMR T/SIG SW (M5X.8X15) (6.760) CK1, 2, 3 2009-2009 02
018 26036497 БОЛТ, HDLP DIMR T/SIG SW (M5X.8X15) (6.760) CK1, 2, 3 2009-2009 02
019 26001827 BEARING KIT, STRG SHF UPR (PART OF 40) (STRG COL INR W/RACE) CK1, 2, 3 2009-2009 01
020 25797751 HARNESS, STRG COL WRG CK1 (36) (MYC, KA9, Y91) 2009-2009 01
020 25797751 HARNESS, STRG COL WRG CK1 (36) (MYC, Y91, Z75) (EXC KA9) 2009-2009 01
021 26036521 PIN, STRG COL PIV (PART OF 40) CK1, 2, 3 2009-2009 02
022 11561801 STRAP, WRG HARN (HOLDS TUBE DIA 60MM) CK1 (36) 2009-2009 01
023 15775835 SEAL, A/TRNS CONT LVR CK1, 2, 3 2009-2009 01
024 SHROUD, STRG COL (PART OF 1) 2009-2009
025 25797681 SWITCH, STRG COL TILT WHL CK1 (06-36) 2009-2009 01
026 26104379 SCREW, FLAT HEAD W/SHLDR, M5X0.8X12, 7 THD, 9.3 OD, GM6171M STL, TAP (STRG COL HSG CVR) 2009-2009 02
027 26078026 CABLE, STRG COL TILT WHL ACTR (PART OF 28) CK1 2009-2009 01
028 25844490 MOTOR, STRG COL TILT WHL ACTR (W/ SEN) (INCLS 27, 29-31) CK1 (06-36) (Y91) 2009-2009 01
029 26064459 БОЛТ, STRG COL TILT WHL ACTR (PART OF 28) (M4.2X1.59X11.5) (W/WSHR-TORX HD) CK1 2009-2009 02
030 SENSOR, STRG COL TILT WHL POSN (PART OF 28) 2009-2009
031 BRACKET, STRG COL TILT WHL ACTR (PART OF 28) 2009-2009
032 11562309 SCREW, OVAL HEAD, 10-24X0.43, GM6010M STL, PHOSPHATEOIL, TAPPING, W/ADH (STRG COL TILT WHL ACTR BRKT) 2009-2009 01
033 25809424 SHAFT, UPR INTER STRG CK1, 2, 3 2009-2009 01
034 15775847 CLIP, STRG WHL POSN SEN RET CK1, 2, 3 2009-2009 01
035 15886733 SENSOR, STRG WHL POSN (6.552) CK1 2009-2009 01
036 15775851 ADAPTER, STRG SHF LWR BRG (PART OF 40) (INCLS LOWER BEARING) CK1, 2, 3 2009-2009 01
037 11514597 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) CK1, 2, 3 2009-2009 01
037 15017238 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.5 OD) (W/PREVAILING TORQ FLANGE) CK1, 2, 3 2009-2009 01
038 11515759 БОЛТ, S/GR CPLG (M6X1.25X35) (8.900) CK1, 2, 3 2009-2009 01
038 11515768 БОЛТ, S/GR CPLG (M10X1.5X40, 30 THD) (8.900) (USED ON INTER SHAFT-MID JOINT) CK1, 2, 3 2009-2009 01
038 11610555 БОЛТ, S/GR CPLG (M10X1.5X31) (11MM SOC HEADER PT) CK1, 2, 3 (ARL, CMD, GMC, MEX) 2009-2009 01
038 26005756 БОЛТ, S/GR CPLG (USED ON LWR SHAFT) (M10X1.5X31) (HFH NYLON LOCK) (6 POINT HEAD) CK1, 2, 3 (FWI, JAN, MSL, OSG) 2009-2009 01
038 88965503 БОЛТ, S/GR CPLG (M10X1.5X35) (FOR SERVICE USE 11515759 T/W 12345382) CK1, 2, 3 2009-2009 01
039 SUPPORT, A/TRNS RANGE SEL LVR CBL (PART OF 40) 2009-2009
040 25797752 COLUMN, STRG (INCLS 3, 4, 8-12, 19, 21, 36, 39, 41) CK1 (36) (MYC, K34, Y91, Z75) 2009-2009 01
041 11562309 SCREW, OVAL HEAD, 10-24X0.43, GM6010M STL, PHOSPHATEOIL, TAPPING, W/ADH (PART OF 40) 2009-2009 03
042 15775841 SOLENOID, A/TRNS SHFT LK CONT (ACDelco #15775841) CK1, 2, 3 2009-2009 01
043 15775840 CONTROL, A/TRNS (INCLS PARK LOCK CABLE) CK1 (MYC) (EXC PPV) 2009-2009 01
043 15775840 CONTROL, A/TRNS (INCLS PARK LOCK CABLE) (4.004) CK1 (MYC) 2009-2009 01
044 26035516 БОЛТ, A/TRNS SHFT LK CONT SOL CK1, 2, 3 2009-2009 03
045 26086318 БОЛТ, A/TRNS CONT LVR (M6X1X13) CK1, 2, 3 2009-2009 01
046 25807853 LEVER, A/TRNS CONT (1/16 CONNECTOR PINS) CK1 (06-36-43) (MYC, 19I, Y91) 2009-2009 01
046 25807855 LEVER, A/TRNS CONT (1/16 PINS) CK1 (06-36-43) (MYC, 39I, 41I) 2009-2009 01
046 25872091 LEVER, A/TRNS CONT CK1 (M99, Y91, 19I) 2009-2009 01
