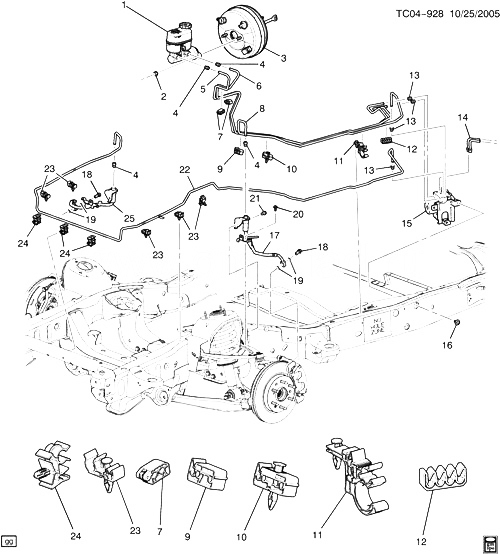

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 002 |
11517996 |
ГАЙКА, BRK M/CYL (M10X1.5, 11.2 THK) (8.917)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 003 |
|
BOOSTER, P/B (СМ. ГРУППУ 04.000 УСИЛИТЕЛЬ ТОРМОЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PRODUCTION) |
|
2007-2009 |
|
| 004 |
11518522 |
ГАЙКА, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (PART OF 5, 6) |
|
2007-2009 |
02 |
| 005 |
19181732 |
PIPE, BRK (INCLS 4, 13) (5/16 X 16 FT) (BULK PIPE) |
CK1 (06-36) (JD9) |
2009-2009 |
01 |
| 006 |
19181732 |
PIPE, BRK (INCLS 4, 13) (5/16 X 16 FT) (BULK PIPE) |
CK1 (06-36) (JD9) |
2009-2009 |
01 |
| 007 |
15194368 |
CLIP, RR BRK FRT PIPE (9.2X33.1) (HOLDS (2)8.25OD LINES) (4.685) |
CK1 (06-36) (JD9) |
2009-2009 |
02 |
| 008 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK PIPE) |
|
2007-2009 |
AR |
| 009 |
11570231 |
CLIP, FRT BRK PIPE (HOLDS ONE 6.65 DIA TUBE, TWO 8.35 DIA TUBE) |
CK1 (06-36) (JD9) |
2009-2009 |
01 |
| 010 |
11570234 |
CLIP, FRT BRK PIPE |
CK1 (06-36) (JD9) |
2009-2009 |
01 |
| 011 |
11570232 |
CLIP, FRT BRK PIPE (HOLDS TWO 6.65, TWO 8.35, ONE 5.0, ONE 17, ONE 33.0 DIA TUBES) |
CK1 (06-36) (JD9) |
2009-2009 |
01 |
| 012 |
11570231 |
CLIP, FRT BRK PIPE (HOLDS ONE 6.65 DIA TUBE, TWO 8.35 DIA TUBE) |
CK1 (06-36) (JD9) |
2009-2009 |
01 |
| 013 |
11562075 |
ГАЙКА, FRT BRK FRT PIPE (PART OF 5, 6) (M12X1.5X17) (INV FLARE) |
CK1, 2, 3 |
2007-2009 |
AR |
| 014 |
|
PIPE, BRK (СМ. ГРУППУ 04.000 BRAKE LINES INTERMEDIATE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (3/16 X 16 FT) (BULK TUBING) (NYLON COATING) |
|
2007-2009 |
|
| 015 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK CONT MDL) (СМ. ГРУППУ 04.000 BRAKE CONTROL MODULE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 016 |
11519388 |
БОЛТ, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (ELEK BRK CONT MDL BRKT)
|
2007-2009 |
03 |
|
| 017 |
15923783 |
HOSE, FRT BRK (INCLS 18, 19) (ACDelco #176-1515)
| CK1 (JD9, JF3, JF7, JG4, J92) |
2009-2009 |
01 |
|
| 018 |
11517342 |
БОЛТ, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (PART OF 17, 25) |
|
2007-2009 |
AR |
| 019 |
21012386 |
WASHER, RR BRK HOSE (PART OF 17, 25) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| CK1 (06-36) |
2007-2009 |
04 |
|
| 020 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE)
|
2007-2009 |
02 |
|
| 021 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) |
|
2007-2009 |
02 |
| 022 |
88936298 |
PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK PIPE) |
|
2007-2009 |
AR |
| 023 |
11561421 |
CLIP, FRT BRK FRT PIPE (FITS INTO DIA 6 HOLE) |
CK1 (06-36) |
2007-2009 |
05 |
| 024 |
11561422 |
CLIP, FRT BRK FRT PIPE (FITS INTO DIA 8 HOLE) |
CK1 (06-36) |
2007-2009 |
03 |
| 025 |
15923784 |
HOSE, FRT BRK (INCLS 18, 19) (ACDelco #176-1516)
| CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2009 |
01 |
|
