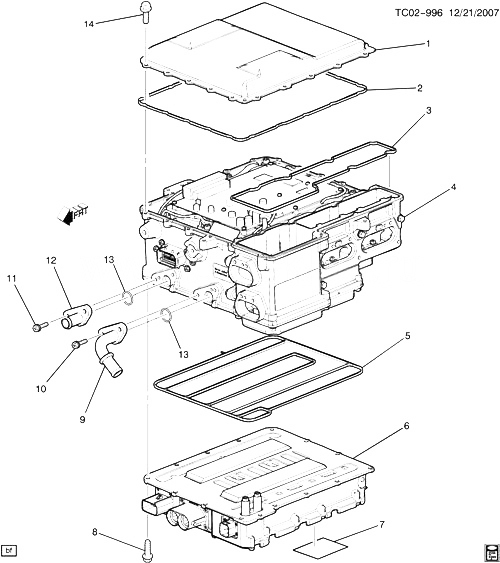

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24241225 |
COVER, DRV MOT PWR INV MDL |
CK1 (HP2) |
2008-2009 |
01 |
| 002 |
24241226 |
SEAL, DRV MOT PWR INV MDL CVR (*KIT1) |
CK1 (HP2) |
2008-2009 |
01 |
| 004 |
12624430 |
MODULE, DRV MOT GEN PWR INV (W/ 2ND MPU) |
CK1 (HP2) |
2008-2009 |
01 |
| 005 |
24241227 |
SEAL, DRV MOT CONT MDL (*KIT1) |
CK1 (HP2) |
2008-2009 |
01 |
| 006 |
24248171 |
MODULE, ACSRY DC PWR CONT (WILL REQ 17 PCS OF 11570318 WHEN SERVICED T/W 12624430) (USE T/W SEAL KIT 19168315) |
CK1 (HP2) |
2009-2009 |
01 |
| 007 |
11900243 |
БОЛТ, HFH, M6X1X23, 17 THD, 14.2 O.D., 8.8, GMW3359, M-POINT, (ACSRY DC PWR CONT MDL SERV NTC) |
|
2008-2009 |
AR |
| 008 |
11561918 |
BOLT-HEX W/CON WA, M6X1X18, 10 THD, 14 OD, 8.8, GMW3359, MAT-PT, (ACSRY AC DC PWR CONT MDL TERM) |
|
2008-2009 |
15 |
| 009 |
24241223 |
PIPE, DRV MOT GEN PWR INV MDL COOL INL |
CK1 (HP2) |
2008-2009 |
01 |
| 010 |
24240095 |
БОЛТ, DRV MOT GEN PWR INV MDL COOL INL PIPE |
CK1 (HP2) |
2008-2009 |
02 |
| 011 |
11900243 |
БОЛТ, HFH, M6X1X23, 17 THD, 14.2 O.D., 8.8, GMW3359, M-POINT, (DRV MOT GEN PWR INV MDL COOL OTL PIPE) |
|
2008-2009 |
AR |
| 012 |
24241219 |
PIPE, DRV MOT GEN PWR INV MDL COOL OTL |
CK1 (HP2) |
2008-2009 |
01 |
| 013 |
24240088 |
SEAL, DRV MOT GEN PWR INV MDL COOL OTL PIPE (*KIT1) |
CK1 (HP2) |
2008-2009 |
03 |
| 014 |
24240087 |
БОЛТ, DRV MOT GEN PWR INV MDL CVR (M5X13X10.9) |
CK1 (HP2) |
2008-2009 |
20 |
| K01 |
19168315 |
SEAL KIT, DRV MOT GEN PWR INV MDL (INCLS 2, 3, 5, 13) |
CK1 (HP2) |
2008-2009 |
01 |
