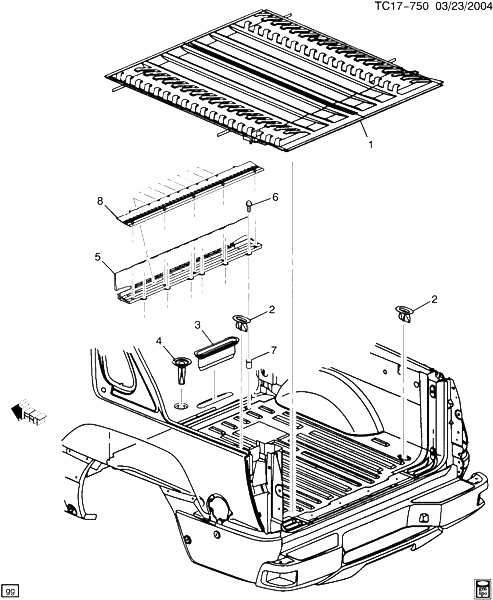

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
93441757 |
MAT, LOAD FLR |
CK1 (36) (B41) |
2007-2009 |
01 |
| 002 |
93440163 |
VALVE, BK BODY OPG FRM DRN (PUBX FLR RR) (RECTANGLE) |
CK1 (36) |
2007-2009 |
03 |
| 002 |
93440163 |
VALVE, BK BODY OPG FRM DRN (PUBX FLR RR) (RECTANGLE) (16.160) |
CK1 (36) |
2007-2009 |
03 |
| 003 |
15073519 |
VALVE, BK BODY OPG FRM DRN (PUBX FLR FRT) (OVAL) |
CK1 (36) |
2007-2009 |
01 |
| 003 |
15073519 |
VALVE, BK BODY OPG FRM DRN (PUBX FLR FRT) (OVAL) (16.160) |
CK1 (36) |
2007-2009 |
01 |
| 004 |
15106716 |
VALVE, BK BODY OPG FRM DRN (I/S WATER MGMT SYSTEM) (ROUND) (16.547) |
CK1 (36) |
2007-2009 |
02 |
| 004 |
15106716 |
VALVE, BK BODY OPG FRM DRN (I/S WATER MGMT SYSTEM) (ROUND) (16.547) |
CK1 (36) |
2007-2009 |
02 |
| 005 |
94666513 |
PANEL, LOAD FLR FRT TR (TWO PIECE W/HINGE) (INCLS GROMMETS) |
CK1 (36) (B41) |
2007-2009 |
01 |
| 006 |
11518329 |
SCR, TORX PAN HD, W/WA, M6X1X25, 18 THD, 15 OD, 9.8, 6138M, TORX (LOAD FLR FRT T/PNL) |
|
2007-2009 |
06 |
| 007 |
11518684 |
ГАЙКА, LOAD FLR FRT T/PNL (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| CK1 (36) (B41) |
2007-2009 |
AR |
|
| 008 |
15094223 |
PANEL, LOAD FLR FRT TR (ONE PIECE INCLS GRATE) |
CK1 (36) (B41) |
2007-2009 |
01 |
