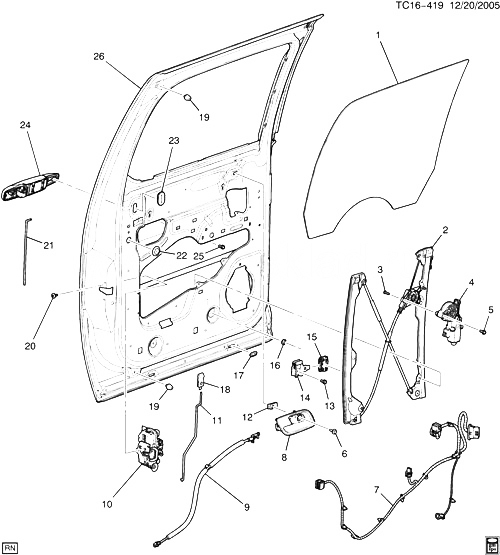

(TC16-419) - 2007-2009 CK109,2(06-36) АРМАТУРА ДВЕРИ/SIDE REAR ЧАСТЬ 2 CADILLAC - ESCALADE EXT (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15140719 WINDOW, RR S/D CK109 (06-36) (Z75) (EXC AJ1) 2008-2009 01
001 15140720 WINDOW, RR S/D CK109 (06-36) (Z75) (EXC AJ1) 2008-2009 01
001 15140721 WINDOW, RR S/D CK109 (06-36) (AJ1, Z75) 2008-2009 01
001 15140722 WINDOW, RR S/D CK109 (06-36) (AJ1, Z75) 2008-2009 01
002 25885880 REGULATOR, RR S/D WDO (INCLS 3, 4, 13-15) (ACDelco #25885880) CK1 (36) (A31) 2008-2009 01
002 25885881 REGULATOR, RR S/D WDO (INCLS 3, 4, 13-15) (INCLS MOTOR) (ACDelco #25885881) CK109, 2 (06-36) (A31) 2008-2009 01
003 БОЛТ, RR S/D WDO REG (PART OF 2) 2007-2009
004 15844874 MOTOR, RR S/D WDO REG (PART OF 2) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844874) CK1, 2, 3 (5B5) 2007-2009 01
004 15844874 MOTOR, RR S/D WDO REG (PART OF 2) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844874) CK1, 2, 3 (A31) 2007-2009 01
005 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (RR S/D WDO REG) 2007-2009 02
006 11570136 БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (RR S/D T/PNL) 2007-2009 04
007 25843480 HARNESS, RR S/D DR WRG CK109, 209 (06-36) (UQ3) 2008-2008 01
007 25843481 HARNESS, RR S/D DR WRG CK109, 209 (06-36) (UQ3) 2008-2008 01
007 25843482 HARNESS, RR S/D DR WRG CK109, 209 (06-36) (UQA, UQS) 2008-2008 01
007 25843483 HARNESS, RR S/D DR WRG CK109, 209 (06-36) (UQA, UQS) 2008-2008 01
008 15920683 HANDLE, RR S/D I/S (EBONY) CK1 (06-36) (Z75, 19I) 2007-2009 01
008 15920684 HANDLE, RR S/D I/S (CASHMERE) (W/CHROME HANDLES) CK1 (06-36) (30I) 2007-2008 01
008 15920704 HANDLE, RR S/D I/S (EBONY) (W/CHROME HDL) CK1 (06-36) (Z75, 19I) 2007-2009 01
008 15920705 HANDLE, RR S/D I/S (CASHMERE) (W/CHROME HANDLES) CK1 (06-36) (30I) 2007-2008 01
008 15939073 HANDLE, RR S/D I/S (EBONY) (W/CHROME REL HDL) CK1, 2 (06-36) (19I, 22I, 31I, 84I) 2007-2009 01
009 CABLE, RR S/D LKG (PART OF 10) 2007-2009
010 25876391 LATCH, RR S/D (INCLS 9) (INCLS ACTUATOR) CK109, 2 (06-36) (ARL, JAN, AU3) 2007-2008 01
010 25876392 LATCH, RR S/D (INCLS 9) (INCLS ACTUATOR) CK109, 2 (06-36) (ARL, JAN, AU3) 2007-2008 01
010 25876393 LATCH, RR S/D (INCLS 9) (W/ACTUATOR) CK109, 2 (06-36) (AU3, MSL) 2007-2008 01
010 25876394 LATCH, RR S/D (INCLS 9) (INCLS ACTUATOR) CK109, 2 (06-36) (AU3, MSL) 2007-2008 01
011 15175387 ROD, RR S/D LAT CK1 (36) 2007-2009 01
011 15175388 ROD, RR S/D LAT CK1 (36) 2007-2009 01
012 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (RR S/D T/PNL) 2007-2009 04
013 PIN, RR S/D WDO REG GDE (PART OF 2) 2007-2009
014 BRACKET, RR S/D WDO REG GDE (PART OF 2) 2007-2009
015 GUIDE, RR S/D WDO REG (PART OF 2) 2007-2009
016 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR S/D WDO REG) 2007-2009 04
017 21110669 PLUG, RR S/D O/S HDL ACC HOLE (35 MM) (ROUND) (12.179) CK1, 2, 3 2007-2009 02
018 15844617 KNOB, RR S/D LKG ROD (CASHMERE) CK1, 2 (06-36) (33I) 2007-2009 02
018 15844619 KNOB, RR S/D LKG ROD (CASHMERE) CK1 (30I) 2007-2008 02
018 15844620 KNOB, RR S/D LKG ROD (COCOA) CK1 (39I) 2007-2008 02
019 15039965 BUMPER, RR S/D CK1 (36) 2007-2009 04
020 11609341 SCREW, RD WA HD 6-LOBE M6X1X19 (RR S/D LAT) 2007-2009 06
021 15893803 ROD, RR S/D O/S HDL CK109 (06-36) 2007-2009 01
021 15893804 ROD, RR S/D O/S HDL CK109 (06-36) 2007-2009 01
022 21110669 PLUG, RR S/D O/S HDL ACC HOLE (35 MM) (ROUND) (12.179) CK1, 2, 3 2007-2009 02
023 25887975 GROMMET, RR S/D LKG ROD CK1, 2, 3 2007-2009 02
024 15930553 HANDLE, RR S/D O/S (BLACK NON-TEXTURED BASE, PAINT TO MATCH, PLATINUM CHROME HDL) (T/W 15832413) CK1 (06-36) (BPH) 2007-2008 01
024 15930554 HANDLE, RR S/D O/S (BLACK NON-TEXTURED BASE, PAINT TO MATCH, PLATINUM CHROME HDL) (T/W 15832413) CK1 (06-36) (BPH) 2007-2008 01
024 25890293 HANDLE, RR S/D O/S (BLACK TEXTURED BASE, PLATINUM CHROME HANDLE) CK1 (06-36) (BPH) 2008-2009 01
024 25890294 HANDLE, RR S/D O/S (BLACK TEXTURED BASE, PLATINUM CHROME HANDLE) CK1 (06-36) (BPH) 2008-2009 01
024 25960521 HANDLE, RR S/D O/S (CHROME) CK1, 2, 3 2007-2009 01
024 25960522 HANDLE, RR S/D O/S (CHROME) CK1, 2, 3 2007-2009 01
025 11517515 BOLT-HFH, M6X1X10, THD 8.5, OD 14.2, 9.8, GM6280, HDR PT. (RR S/D O/S HDL) 2007-2009 04
026 DOOR, RR SI (СМ. ГРУППУ 16.000 КУЗОВНЫЕ ДЕТАЛИSIDE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
