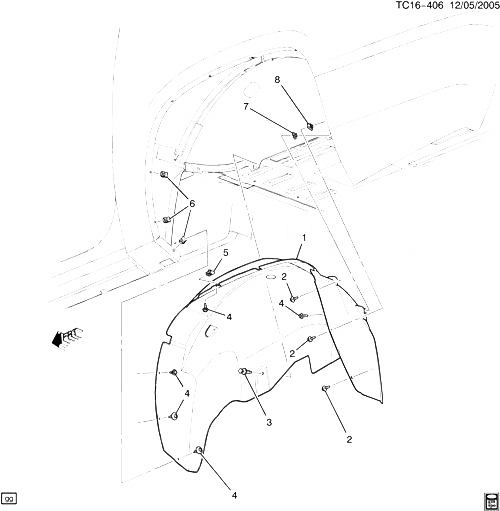

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15938667 |
LINER, RR W/H PNL (INCLS 5) (W/O NUT) |
CK1 (36) (Z75) |
2007-2009 |
01 |
| 001 |
15938668 |
LINER, RR W/H PNL (INCLS 5) (W/NUT) |
CK1, 2 (36) (Z75) |
2007-2009 |
01 |
| 002 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (RR W/H PNL LNR) (8.977)
|
2007-2009 |
06 |
|
| 003 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RR W/H PNL LNR (PUSH IN))
|
2007-2009 |
04 |
|
| 004 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR W/H PNL LNR) |
|
2007-2009 |
04 |
| 005 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 1) (ACDelco #11513599) |
|
2007-2009 |
02 |
| 006 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR W/H PNL LNR) (ACDelco #11513599) |
|
2007-2009 |
06 |
| 007 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (RR W/H PNL) (10.512)
|
2007-2009 |
02 |
|
| 008 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (RR W/H PNL LNR) (10.512)
|
2007-2009 |
06 |
|
