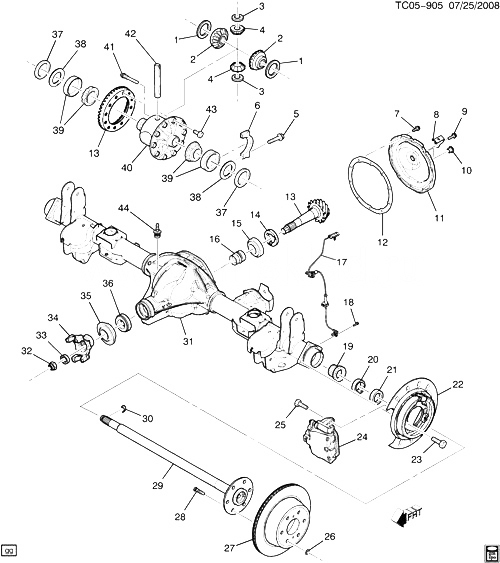

(TC05-905) - 2007-2009 CK1(06-36) МОСТ В СБОРЕ/ЗАДНИЙ 8.625 RING GEAR ЧАСТЬ 1 (EXC (AXN)) CADILLAC - ESCALADE EXT (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 WASHER, DIFF SI GR THR (*KIT1) 2007-2009
002 GEAR, DIFF SI (*KIT1) 2007-2009
003 03984818 WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT1) CK1 (EXC G80) 2007-2009 02
004 GEAR, DIFF PINION (*KIT1) 2007-2009
005 00454947 БОЛТ, HEX .437-14X2.250 CL-2A CAD/ZC (PART OF 31) 2007-2009 04
006 CAP, DIFF CARRIER BEARING (PART OF 31) 2007-2009
007 12471307 БОЛТ, R/AXL HSG CVR (M8X1.25X20) (*KIT2) CK1, 2, 3 2007-2008 AR
008 15791254 BRACKET, RR BRK C/OVR PIPE (INCLS 9) (CONTAINS BRACKET SCREW) (*KIT2) CK1 2007-2008 01
009 БОЛТ, R/AXL HSG CVR (PART OF 8) (*KIT2) 2007-2008
010 12479141 PLUG, R/AXL HSG FILL (INCLS WASHER MAGNET) (*KIT2) CK1 2007-2008 01
011 COVER, R/AXL HSG (*KIT2) 2007-2008
012 15807693 GASKET, R/AXL HSG CVR (10 BOLT HOLES) (*KIT2) CK1 2007-2008 01
013 12479056 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GT5) (EXC AXN) 2007-2008 01
013 12479129 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) (INCLS BOLTS, PINION, RING SPACER) CK1 (GU6) (EXC AXN) 2007-2008 01
013 12479316 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GT4) (EXC AXN) 2007-2008 01
013 12479393 GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) CK1 (GU5) (EXC AXN) 2007-2008 01
014 01394892 SHIM KIT, FRT DIFF DRV P/GR BRG (.020-.024 THK) K1 2007-2009 01
014 01394893 SHIM KIT, FRT DIFF DRV P/GR BRG (.025-.029 THK) K1 2007-2009 01
014 01394894 SHIM KIT, FRT DIFF DRV P/GR BRG (.030-.034 THK) K1 2007-2009 01
014 01394895 SHIM KIT, FRT DIFF DRV P/GR BRG (.035-.039 THK) K1 2007-2009 01
014 26043991 SHIM KIT, FRT DIFF DRV P/GR BRG (.040-.044 THK) K1 2007-2009 01
014 26043992 SHIM KIT, FRT DIFF DRV P/GR BRG (.045-.049 THK) K1 2007-2009 01
015 15286375 BEARING, DIFF DRV P/GR INR (ACDelco #S1371) CK1 (EXC AXN) 2007-2008 01
016 12479162 SPACER, DIFF DRV P/GR BRG (R/AXL) (PART OF 13) (.062-.068 THK) CK1 2007-2009 01
017 15121067 SENSOR, RR WHL SPD CK1 (06-36) 2007-2009 02
018 15960191 БОЛТ, WHL SPD SEN (M6X1X12) CK1, 2, 3 2007-2009 AR
019 15286384 RING, WHL SPD SEN RELUCTOR CK1 2007-2009 02
020 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) CK1 2007-2009 02
021 12471686 SEAL, R/AXL SHF (ACDelco #291-315) CK1 2007-2009 02
022 BRAKE, PARK (СМ. ГРУППУ 04.000 PARKING BRK ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
023 15065927 БОЛТ, PARK BRK (M12X1.75X34) CK1 2007-2009 08
024 CALIPER, RR BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (4.667) 2007-2009
025 15012506 БОЛТ, RR BRK CLPR (PART OF 27) (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) CK1 (JD9) 2007-2008 04
026 RETAINER, RR BRK ROT (PUSH ON) 2007-2009
027 15792634 ROTOR KIT, RR BRK (INCLS 25) CK1 (06-36) 2007-2008 02
028 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK1 2007-2009 24
029 15286380 SHAFT, R/AXL CK1 2007-2009 02
030 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) CK1 (EXC AXN) 2007-2009 02
031 25789474 ШЛАНГИ, R/AXL (INCLS 5, 6) CK1 (06-36) (EXC AXN) 2007-2008 01
032 88891763 ГАЙКА, DIFF DRV P/GR (R/AXL) (PART OF 13, 34) (M10) CK1 2007-2009 01
033 00517900 WASHER, DIFF DRV P/GR (PART OF 13, 34) (.890X1.625X.190) CK1 2007-2009 01
034 12470387 YOKE KIT, DIFF DRV P/GR (INCLS 32, 33, 35) (30 TEETH) (INCLS YOKE, SEAL, WASHER, NUT) (FOR NON-CANADIAN ORDERS) CK1 (06-36) (EXC HP2) 2007-2008 01
035 26064028 SEAL, DIFF DRV P/GR (2 PIECE PINION SEAL) (TRIPLE LIP) (PART OF 34) (RR AXLE) CK1 2007-2008 01
036 15286376 BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, M88048-M88010, 1 5/16 IN ID X 2 11/16 IN OD X 7/8 IN THK) (5.484) (ACDelco #S1372) CK1 2007-2008 01
037 12471330 SPACER, DIFF BRG (4.37-4.32MM THK) (5.650) CK1 (EXC AXN) 2007-2009 02
038 12471362 SHIM KIT, DIFF BRG (1.016-1.118MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471363 SHIM KIT, DIFF BRG (1.168-1.372MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471364 SHIM KIT, DIFF BRG (1.422-1.626MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471365 SHIM KIT, DIFF BRG (1.676-1.880MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471366 SHIM KIT, DIFF BRG (1.930-2.134MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471367 SHIM KIT, DIFF BRG (2.184-2.388MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
038 12471368 SHIM KIT, DIFF BRG (2.438-2.540MM RANGE) (RR AXLE) CK1 (EXC AXN) 2007-2009 01
039 25824250 BEARING, DIFF (ACDelco #S1380) CK1 (EXC AXN) 2007-2008 02
040 12471540 CASE, DIFF (STAMPED 7875/LESS INT GEARS) (W/RR AXLE CODES BA1, BA3, BA4, BB5, BB7, BD4, BD5, BD6, BD7, BH5, BH7, BH8, AU0, AU1, AU3, AU5, AY1, AY3, AY5, BA0, BC0, HJ3, HJ5, HJ7) (FOR 2ND DES SEE 25824246) CK1 (EXC AXN, G80) (1ST DES) 2008-2008 01
040 25824246 CASE, DIFF (W/RR AXLE CODES FW3, FW4, FW5, FX1, FX2, FX3, FX4, FX5, FX6, FX7, FX8, FX9) (FOR 1ST DES SEE 12471540) CK1 (EXC AXN, G80) (2ND DES) 2008-2008 01
041 25872305 БОЛТ, DIFF P/GR SHF LK (*KIT1) CK1 (EXC AXN) 2007-2009 01
042 26056109 SHAFT, DIFF P/GR (124.84MM) (*KIT1) CK1 2007-2008 01
043 14066913 БОЛТ, RR DIFF R/GR (R/AXL) (PART OF 13) (7/16-20X7/8) (HEX) CK1 (EXC AXN) 2007-2008 10
044 26063647 CONNECTOR, R/AXL VENT HOSE CK1, 2, 3 2007-2009 01
K01 19179021 GEAR KIT, DIFF SI PINION (INCLS 1-4, 41, 42) (RR AXLE) (W/RR AXLE CODES BA1, BA3, BA4, BB5, BB7, BD4, BD5, BD6, BD7, BH5, BH7, BH8, AU0, AU1, AU3, AU5, AY1, AY3, AY5, BA0, BC0, HJ3, HJ5, HJ7) (FOR 2ND DES SEE 19180887) CK1 (EXC AXN, G80) (1ST DES) 2008-2008 01
K01 19180887 GEAR KIT, DIFF SI PINION (INCLS 1-4, 41, 42) (W/RR AXLE CODES FW3, FW4, FW5, FX1, FX2, FX3, FX4, FX5, FX6, FX7, FX8, FX9) (FOR 1ST DES SEE 19179021) CK1 (EXC AXN, G80) (2ND DES) 2008-2008 01
K02 15290822 COVER KIT, R/AXL HSG (INCLS 7-12) (INCLS COVER, GASKET, PLUG, BOLTS, BRACKETS) CK1 2007-2008 01
