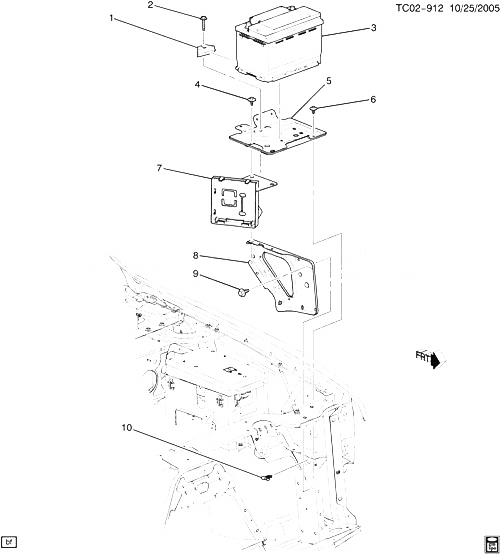

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
14005061 |
RETAINER, BAT HOLDN (PLASTIC)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 002 |
11509853 |
БОЛТ, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET)
|
2007-2009 |
01 |
|
| 003 |
|
АККУМУЛЯТОР, (CCA 700) (TOP POST) (277X174X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) |
|
2008-2009 |
|
| 004 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2007-2009 |
02 |
|
| 005 |
25826079 |
TRAY, BAT (SECONDARY) |
CK1, 2, 3 |
2007-2009 |
01 |
| 006 |
11609540 |
БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (BAT TRAY)
|
2007-2009 |
04 |
|
| 007 |
15850348 |
BRACKET, ECM
| CK1, 2, 3 (LH6, LY2, LY5, L76, L92) |
2007-2008 |
01 |
|
| 008 |
10399558 |
SUPPORT, BAT TRAY |
CK1, 2, 3 |
2007-2009 |
01 |
| 009 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (BAT TRAY SUPT) |
|
2007-2009 |
04 |
| 010 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (BAT TRAY)
|
2007-2009 |
02 |
|
