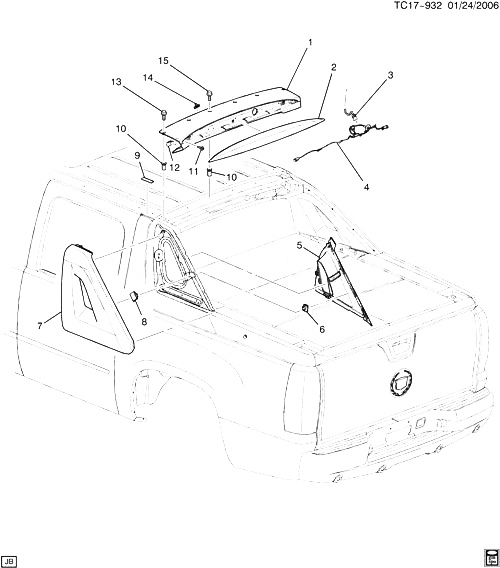

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88980817 |
BAR, CARGO BOX BRIDGE CR (INCLS 4, 10, 11, 12, 14) (W/O LAMP) (PAINT TO MATCH) (17.090) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 001 |
88980817 |
BAR, CARGO BOX BRIDGE CR (INCLS 4, 10, 11, 12, 14) (W/O LAMP) (PAINT TO MATCH) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 002 |
15098920 |
LAMP, HIGH MT STOP |
K109 (36) (Y91, Z75) |
2007-2009 |
01 |
| 003 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (3.0 CABLE SIZE) |
|
2007-2009 |
|
| 004 |
15077257 |
HARNESS, HIGH MT S/LP CARGO BOX STOW BOX LP WRG (PART OF 1) (HAS RH AND LH CARGO LAMP CONN) |
K109 (36) (Y91, Z75) |
2007-2009 |
01 |
| 005 |
88944310 |
PANEL, CARGO BOX BRIDGE SI INR (INCLS 6) (PAINT TO MATCH) (17.090) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 005 |
88944310 |
PANEL, CARGO BOX BRIDGE SI INR (INCLS 6) (PAINT TO MATCH) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 005 |
88944311 |
PANEL, CARGO BOX BRIDGE SI INR (INCLS 6) (PAINT TO MATCH) (17.090) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 005 |
88944311 |
PANEL, CARGO BOX BRIDGE SI INR (INCLS 6) (PAINT TO MATCH) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 006 |
11518357 |
RETAINER, RECTANGULAR W/PRONGS, 20X21.25X20.2, FITS 9MM HOLE, PLAS, NAT (PART OF 5)
|
2007-2009 |
05 |
|
| 007 |
25786465 |
PANEL, CARGO BOX BRIDGE SI OTR (INCLS 8) (PAINT TO MATCH) (17.090) |
K1 (36) (Z75) |
2007-2009 |
01 |
| 007 |
25786465 |
PANEL, CARGO BOX BRIDGE SI OTR (INCLS 8) (PAINT TO MATCH) |
K1 (36) (Z75) |
2007-2009 |
01 |
| 007 |
25786466 |
PANEL, CARGO BOX BRIDGE SI OTR (INCLS 8) (PAINT TO MATCH) (17.090) |
K1 (36) (Z75) |
2007-2009 |
01 |
| 007 |
25786466 |
PANEL, CARGO BOX BRIDGE SI OTR (INCLS 8) (PAINT TO MATCH) |
K1 (36) (Z75) |
2007-2009 |
01 |
| 008 |
11518357 |
RETAINER, RECTANGULAR W/PRONGS, 20X21.25X20.2, FITS 9MM HOLE, PLAS, NAT (PART OF 7)
|
2007-2009 |
09 |
|
| 009 |
15826607 |
MOLDING, RF PNL JT FIN |
K1 (36) |
2007-2009 |
02 |
| 010 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (PART OF 1) (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| CK1 (36) |
2007-2009 |
06 |
|
| 011 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 1)
|
2007-2009 |
02 |
|
| 012 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 1)
|
2007-2009 |
02 |
|
| 013 |
11518705 |
SCREW, PAN TORX HD, W/WA SEAL, M6X1X27, 21 THD, 12.5O.D., 9.8, 6138M (CARGO BOX BRIDGE C/BAR) |
|
2007-2009 |
02 |
| 014 |
11518357 |
RETAINER, RECTANGULAR W/PRONGS, 20X21.25X20.2, FITS 9MM HOLE, PLAS, NAT (PART OF 1)
|
2007-2009 |
06 |
|
| 015 |
11518329 |
SCR, TORX PAN HD, W/WA, M6X1X25, 18 THD, 15 OD, 9.8, 6138M, TORX (CARGO BOX BRIDGE C/BAR) |
|
2007-2009 |
04 |
