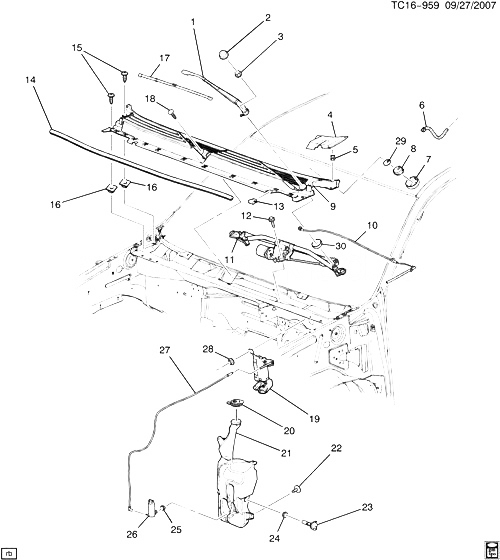

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15916552 |
ARM, WSW (W/NOZZLE HOSE) (CONVENTIONAL) (USE ON VEH BUILT 07/22/07 PRIOR) (FOR 2ND DES SEE 25872300)
| CK1, 2 (06-36) (EXC PPV) (1ST DES) |
2007-2007 |
01 |
|
| 001 |
25872299 |
ARM, WSW (W/NOZZLE HOSE) (CONVENTIONAL) (USE ON VEH BUILT 07/22/07 PRIOR) (FOR 2ND DES SEE 25875220) |
CK1, 2 (06-36) (EXC PPV) (1ST DES) |
2007-2007 |
01 |
| 001 |
25872300 |
ARM, WSW (W/NOZZLE HOSE) (USE ON VEH BUILT 07/23/07 AFTER) (FOR 1ST DES SEE 15916552) |
CK1, 2 (06-36) (EXC PPV) (2ND DES) |
2007-2007 |
01 |
| 001 |
25875220 |
ARM, WSW (W/NOZZLE HOSE) (USE ON VEH BUILT 07/23/07 AFTER) (FOR 1ST DES SEE 25872299) |
CK1, 2 (06-36) (EXC PPV) (2ND DES) |
2007-2007 |
01 |
| 002 |
15788727 |
CAP, WSW ARM FIN (10.147)
| CK1, 2 (06-36) (EXC PPV) |
2007-2008 |
02 |
|
| 003 |
11609634 |
ГАЙКА, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM)
|
2007-2008 |
02 |
|
| 004 |
15884841 |
PANEL, AIR INL GRL (USED ON VEHICLES BUILT 5/6/07 AND PRIOR.) (BLACK) (END CAP) |
CK1, 2 (36) |
2007-2007 |
01 |
| 004 |
25820729 |
PANEL, AIR INL GRL (BLACK)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 004 |
25820731 |
PANEL, AIR INL GRL (USED ON VEHICLES BUILT 5/7/07 AND AFTER) (BLACK) |
CK1, 2 (36) |
2007-2007 |
01 |
| 005 |
11609796 |
CLIP, AIR INL GRL PNL (11.0 X 12.9 X 6.1MM) (8.950) |
CK1, 2 (06-36) |
2007-2008 |
03 |
| 006 |
|
HARNESS, W/S HDR WRG (СМ. ГРУППУ 2.000 ЖГУТЫ ПРОВОДОВ/ROOF ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2008 |
|
| 007 |
15780444 |
COVER, W/S O/S MSTRE SEN (COVERS MIR HARNESS) |
CK1, 2 (CE1) |
2007-2008 |
01 |
| 008 |
25942005 |
SENSOR, W/S O/S MSTRE (INCLS 29) (10.163)
| CK1, 2 (06-36-43) (CE1) |
2007-2008 |
01 |
|
| 009 |
25872303 |
PANEL, AIR INL GRL (CTR) (INCLS 10, 14, 18) (BLACK) |
CK1, 2 (06-36) |
2007-2008 |
01 |
| 010 |
25887976 |
HOSE, WSWA NOZ (PART OF 9)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 011 |
25923882 |
MODULE, WSW SYS
| CK1, 2, 3 (ARL, CMD, FWI, JAN, MSL) |
2007-2008 |
01 |
|
| 012 |
11513947 |
БОЛТ, HEX, W/WA, M6X1X35, 24 O.D., AC PT, 9.8, POR (WSW SYS MDL) |
|
2007-2008 |
03 |
| 013 |
15999788 |
RETAINER, AIR INL GRL PNL (U-SHAPED/CLIP) |
CK1, 2, 3 |
2007-2007 |
02 |
| 014 |
15200240 |
WEATHERSTRIP, КАПОТ RR (PART OF 9) |
CK1, 2 (06-36) |
2007-2008 |
01 |
| 015 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (AIR INL GRL PNL) |
|
2007-2008 |
04 |
| 016 |
11589183 |
ГАЙКА, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (AIR INL GRL PNL) |
|
2007-2008 |
04 |
| 017 |
25877402 |
BLADE, WSW (22)
| CK1, 2, 3 |
2007-2007 |
02 |
|
| 018 |
15048061 |
RETAINER, AIR INL GRL PNL (PART OF 9) (PUSH IN) |
CK1, 2 (06-36) |
2007-2008 |
01 |
| 019 |
25956849 |
HEATER, WSWA SOLV
| CK1, 2, 3 (XA7) |
2007-2008 |
01 |
|
| 020 |
25731418 |
CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) (10.154) |
CK1, 2 (06-36) |
2007-2008 |
01 |
| 021 |
15942521 |
CONTAINER KIT, WSWA SOLV (1P 1LS GROMMETS) (INCLS 24, 25) |
CK1, 2, 3 (03-36-43-53) |
2007-2008 |
01 |
| 022 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (WSWA SOLV CNTNR)
|
2007-2008 |
03 |
|
| 023 |
15213911 |
INDICATOR KIT, WSWA SOLV LVL (LEVEL SENSOR KIT WITH GROMMET) (INCLS 24)
| CK1, 2 |
2007-2008 |
01 |
|
| 024 |
15248578 |
GROMMET, WSWA SOLV CNTNR (LEVEL SENSOR GROMMET) (PART OF 21, 23)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 025 |
15927514 |
GROMMET, WSWA PUMP (PUMP GROMMET) (PART OF 21, 26)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 026 |
15942523 |
PUMP KIT, WSWA W/ SEAL (INCLS 25) (FRT PUMP KIT W/GROMMET) (ACDelco #15942523)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 027 |
15917649 |
HOSE, WSWA PUMP (FRT JUMPER HOSE) |
CK1, 2, 3 |
2007-2008 |
01 |
| 028 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (WSWA SOLV HTR)
|
2007-2008 |
02 |
|
| 029 |
15829099 |
LENS, W/S O/S MSTRE SEN (PART OF 8) (INCLS THE SILICON GEL)
| CK1, 2 (06-36-43) (CE1) |
2007-2008 |
01 |
|
| 030 |
25816571 |
GASKET, WSW TRANS (AT PIVOT POINT) |
CK1, 2 (06-36) |
2007-2008 |
02 |
