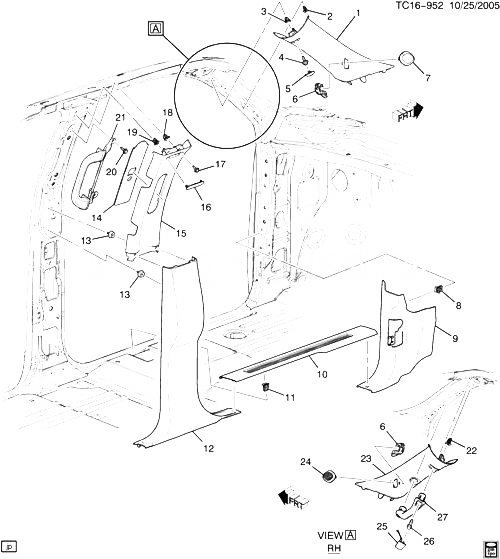

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15924657 |
MOLDING, W/S SI GARN (INCLS 2-7) (GRAY) (W/SPEAKER) |
CK1, 2 (06-36) (UQA) |
2007-2009 |
01 |
| 001 |
15924658 |
MOLDING, W/S SI GARN (INCLS 2-7) (CASHMERE) (W/SPEAKER) |
CK1, 2 (06-36) (UQA, 31I, 33I) |
2007-2008 |
01 |
| 001 |
20803784 |
MOLDING, W/S SI GARN (INCLS 2-7) (GRAY) |
CK1 (UQS, Z75) |
2007-2009 |
01 |
| 001 |
25797326 |
MOLDING, W/S SI GARN (INCLS 2-7) (CASHMERE)
| CK1 (UQS, Z75, 30I) |
2007-2008 |
01 |
|
| 002 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 1)
|
2007-2009 |
01 |
|
| 003 |
11609651 |
CLIP, W/S SI G/MLDG (PART OF 1) (M21.8X15.0X20.5) (14.731)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 004 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 1) (8.977)
|
2007-2009 |
01 |
|
| 005 |
15214075 |
PLUG, W/S SI G/MLDG BOLT HOLE FIN (PART OF 1) (CASHMERE) (16.575) |
CK1, 2 (06-36) (UQA, 22I, 31I, 33I) |
2007-2008 |
01 |
| 005 |
15220491 |
PLUG, W/S SI G/MLDG BOLT HOLE FIN (PART OF 1) (CASHMERE) |
CK1 (Z75, 30I) |
2007-2008 |
01 |
| 005 |
15220492 |
PLUG, W/S SI G/MLDG BOLT HOLE FIN (PART OF 1) (GRAY) |
CK1 (UQS, Z75, 19I) |
2007-2008 |
01 |
| 006 |
15186674 |
SPEAKER, RDO W/S SI G/MLDG (PART OF 1, 23) (ACDelco #15186674)
| CK1 (UQS, Z75) |
2007-2009 |
02 |
|
| 007 |
15841537 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (CASHMERE) |
CK1, 2 (06-36) (UQA, 22I, 31I, 33I) |
2007-2009 |
01 |
| 007 |
25889853 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) |
CK1 (UQS, Z75, 19I) |
2007-2009 |
01 |
| 007 |
25889853 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) |
CK1, 2 (06-36) (UQA, 19I, 83I, 84I) |
2007-2009 |
01 |
| 008 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 9)
|
2007-2009 |
04 |
|
| 009 |
15848295 |
PANEL, BODY H/PLR TR (INCLS 8) (CASHMERE) |
CK1, 2 (30I) |
2007-2008 |
01 |
| 009 |
15848301 |
PANEL, BODY H/PLR TR (INCLS 8) (CASHMERE) |
CK1, 2 (30I) |
2007-2008 |
01 |
| 009 |
15904432 |
PANEL, BODY H/PLR TR (INCLS 8) (EBONY)
| CK1, 2 (06-36) (19I, 22I, 84I) |
2007-2008 |
01 |
|
| 009 |
15904433 |
PANEL, BODY H/PLR TR (INCLS 8) (TITANIUM) |
CK1, 2 (06-36) (83I) |
2007-2009 |
01 |
| 009 |
15904434 |
PANEL, BODY H/PLR TR (INCLS 8) (CASHMERE) |
CK1, 2, 3 (31I, 33I, 39I) |
2007-2009 |
01 |
| 009 |
15904438 |
PANEL, BODY H/PLR TR (INCLS 8) (EBONY) |
CK1, 2 (06-36) (19I, 22I, 84I) |
2007-2008 |
01 |
| 009 |
15904439 |
PANEL, BODY H/PLR TR (INCLS 8) (TITANIUM) |
CK1, 2 (06-36) (83I) |
2007-2009 |
01 |
| 009 |
15904440 |
PANEL, BODY H/PLR TR (INCLS 8) (CASHMERE) |
CK1, 2, 3 (31I, 33I, 39I) |
2007-2009 |
01 |
| 010 |
15848374 |
PLATE, FRT S/D SILL TR (INCLS 11) (CASHMERE) (W/CADILLAC INSERT) |
CK1 (06-36) (Y91, Z75, 30I) |
2007-2008 |
01 |
| 010 |
15848375 |
PLATE, FRT S/D SILL TR (INCLS 11) (EBONY) (W/CADILLAC INSERT) |
CK1 (06-36) (Y91, Z75, 19I) |
2007-2009 |
01 |
| 010 |
15848378 |
PLATE, FRT S/D SILL TR (INCLS 11) (CASHMERE) (W/CADILLAC INSERT) |
CK1 (06-36) (Y91, Z75, 30I) |
2007-2008 |
01 |
| 010 |
15848379 |
PLATE, FRT S/D SILL TR (INCLS 11) (EBONY) (W/CADILLAC INSERT) |
CK1 (06-36) (Y91, Z75, 19I) |
2007-2009 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10)
|
2007-2009 |
08 |
|
| 012 |
25809572 |
MOLDING, C/PLR LWR GARN (INCLS 13) (CASHMERE) |
CK1 (06-36) (30I) |
2007-2007 |
01 |
| 012 |
25880275 |
MOLDING, C/PLR LWR GARN (INCLS 13) (CASHMERE) |
CK1 (36) (31I, 33I, 39I) |
2007-2007 |
01 |
| 012 |
25880276 |
MOLDING, C/PLR LWR GARN (INCLS 13) (TITANIUM) |
CK1 (36) (83I) |
2007-2007 |
01 |
| 012 |
25880277 |
MOLDING, C/PLR LWR GARN (INCLS 13) (EBONY) |
CK1 (36) (19I, 22I, 84I) |
2007-2007 |
01 |
| 012 |
25880278 |
MOLDING, C/PLR LWR GARN (INCLS 13) (CASHMERE) |
CK1 (06-36) (30I) (EXC XA1) |
2007-2008 |
01 |
| 012 |
25880281 |
MOLDING, C/PLR LWR GARN (INCLS 13) (CASHMERE) |
CK1 (36) (31I, 33I, 39I) |
2007-2007 |
01 |
| 012 |
25880282 |
MOLDING, C/PLR LWR GARN (INCLS 13) (TITANIUM) |
CK1 (36) (83I) |
2007-2007 |
01 |
| 012 |
25880283 |
MOLDING, C/PLR LWR GARN (INCLS 13) (EBONY) |
CK1 (36) (19I, 22I, 84I) |
2007-2007 |
01 |
| 013 |
|
RETAINER, C/PLR G/MLDG (PART OF 12, 15) |
|
2007-2009 |
|
| 014 |
15214078 |
COVER, D/SEAT SHLDR BELT GDE ADJR CLOSEOUT (PART OF 15) (GRAY) |
CK1 (36) (19I, 83I, 84I) |
2007-2009 |
01 |
| 014 |
15214078 |
COVER, P/SEAT SHLDR BELT GDE ADJR CLOSEOUT (PART OF 15) (GRAY) |
CK1 (06-36) (Z75, 19I) |
2007-2009 |
01 |
| 014 |
15236114 |
COVER, D/SEAT SHLDR BELT GDE ADJR CLOSEOUT (PART OF 15) (CASHMERE) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 014 |
15236114 |
COVER, P/SEAT SHLDR BELT GDE ADJR CLOSEOUT (PART OF 15) (CASHMERE) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 015 |
25797317 |
MOLDING, C/PLR UPR GARN (INCLS 13, 14, 16-19) (GRAY) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 015 |
25797318 |
MOLDING, C/PLR UPR GARN (INCLS 13, 14, 16-19) (CASHMERE)
| CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
|
| 015 |
25797320 |
MOLDING, C/PLR UPR GARN (INCLS 13, 14, 16-19) (GRAY) |
CK1 (Z75, 19I) |
2007-2009 |
01 |
| 015 |
25797321 |
MOLDING, C/PLR UPR GARN (INCLS 13, 14, 16-19) (CASHMERE) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 016 |
15278044 |
PLUG, C/PLR HOLE (PART OF 15) (GRANITE) |
CK1, 2, 3 (19I, 22I, 31I, 33I, 83I, 84I, 88I) |
2007-2009 |
02 |
| 016 |
15278046 |
PLUG, C/PLR HOLE (PART OF 15) (LT CASHMERE) |
CK1 (Z75, 30I) |
2007-2008 |
02 |
| 016 |
15278047 |
PLUG, C/PLR HOLE (PART OF 15) (GRAY) |
CK1 (Z75, 19I) |
2007-2009 |
02 |
| 017 |
11609465 |
БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 15) (8.977)
|
2007-2009 |
02 |
|
| 018 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 15)
|
2007-2008 |
AR |
|
| 019 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 15)
|
2007-2009 |
02 |
|
| 020 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (ASST HDL) |
|
2007-2009 |
04 |
| 021 |
15845416 |
HANDLE, ASST (GRAY) |
CK1, 2 (06-36) (19I, 22I, 83I, 84I, 88I) |
2007-2007 |
01 |
| 021 |
15845417 |
HANDLE, ASST (LT CASHMERE) |
CK1 (06-36) (30I) |
2007-2008 |
01 |
| 021 |
15845418 |
HANDLE, ASST (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2008 |
01 |
| 021 |
15845422 |
HANDLE, ASST (LT CASHMERE) |
CK1 (06-36) (30I) |
2007-2008 |
01 |
| 021 |
20776884 |
HANDLE, ASST (GRAY) |
CK1, 2 (06-36) (19I, 22I, 83I, 84I, 88I) |
2007-2007 |
01 |
| 021 |
20776886 |
HANDLE, ASST (CASHMERE) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2008 |
01 |
| 022 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 23)
|
2007-2009 |
01 |
|
| 023 |
15924664 |
MOLDING, W/S SI GARN (INCLS 6, 22, 24) (GRAY) (W/SPEAKER) |
CK1, 2 (06-36) (UQA) |
2007-2009 |
01 |
| 023 |
15924665 |
MOLDING, W/S SI GARN (INCLS 6, 22, 24) (CASHMERE) |
CK1, 2 (06-36) (UQA, 31I, 33I) |
2007-2009 |
01 |
| 023 |
20803780 |
MOLDING, W/S SI GARN (INCLS 6, 22, 24) (GRAY) |
CK1 (UQS, Z75, 19I) |
2007-2009 |
01 |
| 023 |
25797323 |
MOLDING, W/S SI GARN (INCLS 6, 22, 24) (CASHMERE) |
CK1 (UQS, Z75, 30I) |
2007-2008 |
01 |
| 024 |
25889859 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 23) (GRAY) |
CK1, 2 (06-36) (UQA, 19I, 83I, 84I) |
2007-2008 |
01 |
| 024 |
25889859 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 23) (GRAY) |
CK1 (UQS, Z75, 19I) |
2007-2009 |
01 |
| 024 |
25889861 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 23) |
CK1, 2 (06-36) (UQA, 33I) |
2007-2009 |
01 |
| 024 |
25889862 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 23) |
CK1 (UQS, Z75, 30I) |
2007-2008 |
01 |
| 025 |
15220455 |
COVER, W/S PLR ASST HDL (PART OF 27) (GRAY) (UPPER) |
CK1, 2 (06-36) (19I, 83I, 84I) |
2007-2008 |
01 |
| 025 |
15220456 |
COVER, W/S PLR ASST HDL (PART OF 27) (CASHMERE) (UPPER) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 025 |
15220459 |
COVER, W/S PLR ASST HDL (PART OF 27) (GRAY) (LOWER) |
CK1, 2 (06-36) (19I, 83I, 84I) |
2007-2008 |
01 |
| 025 |
15220460 |
COVER, W/S PLR ASST HDL (PART OF 27) (CASHMERE) (LOWER) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 025 |
15255444 |
COVER, W/S PLR ASST HDL (PART OF 27) (CASHMERE) (LOWER) |
CK1 (06-36) (31I, 33I, 39I) |
2007-2007 |
01 |
| 025 |
15255445 |
COVER, W/S PLR ASST HDL (PART OF 27) (CASHMERE) (UPPER) |
CK1, 2 (06-36) (22I, 31I, 33I, 39I) |
2007-2008 |
01 |
| 026 |
11609939 |
БОЛТ, HEX W/FLAT WA, M6X1X30, 21 THD, 17 OD, TAPPING (W/S PLR ASST HDL) |
|
2007-2009 |
02 |
| 027 |
15916832 |
HANDLE, W/S PLR ASST (INCLS 25) (GRAY) |
CK1, 2 (06-36) (19I, 83I, 84I) |
2007-2008 |
01 |
| 027 |
15916833 |
HANDLE, W/S PLR ASST (INCLS 25) (CASHMERE) |
CK1 (06-36) (Z75, 30I) |
2007-2008 |
01 |
| 027 |
15916834 |
HANDLE, W/S PLR ASST (INCLS 25) (CASHMERE) |
CK1 (06-36) (31I, 33I, 39I) |
2007-2008 |
01 |
