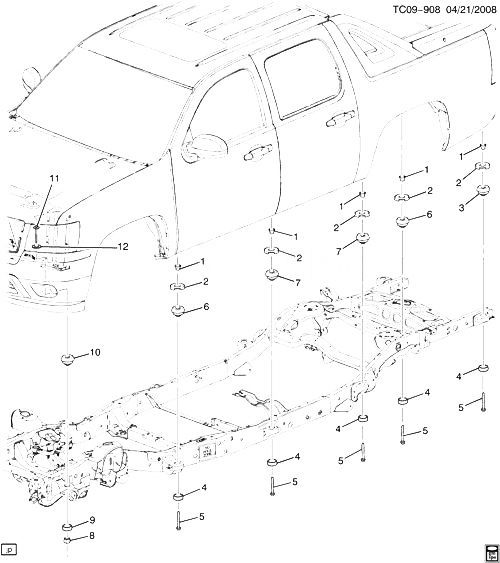

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15924986 |
RETAINER, BODY BOLT |
CK1, 2 (06-36) |
2007-2009 |
10 |
| 002 |
15018263 |
SHIM, BODY MT (3MM THICK)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 002 |
15018264 |
SHIM, BODY MT (1.5MM THICK) |
CK1, 2, 3 |
2007-2009 |
AR |
| 003 |
15837581 |
CUSHION, BODY BOLT UPR (LOCATIONS # 2, 3, 5) (COLOR CODE PEACH) (1.270)
| CK1 (36) |
2007-2009 |
02 |
|
| 003 |
15864038 |
CUSHION, BODY BOLT UPR (LOCATIONS # 5) (COLOR CODE WHITE)
| CK1 (36) |
2007-2007 |
02 |
|
| 004 |
15201791 |
CUSHION, BODY BOLT LWR (71MM OD) |
CK1, 2 (06-36) |
2007-2009 |
10 |
| 005 |
11562587 |
БОЛТ, BODY (M14X2X126)
| CK1, 2 (06-36) |
2007-2009 |
10 |
|
| 006 |
25857633 |
CUSHION, BODY BOLT UPR (LOCATION # 1, 4) (COLOR CODE LT BLUE) (BLUE) |
CK1 (36) |
2007-2009 |
04 |
| 007 |
15837581 |
CUSHION, BODY BOLT UPR (LOCATIONS # 2, 3, 5) (COLOR CODE PEACH) (1.270)
| CK1 (36) |
2007-2009 |
02 |
|
| 007 |
25875218 |
CUSHION, BODY BOLT UPR (LOCATION # 2 3) (RED BLUE DBL STRIPE) |
CK1 (36) |
2007-2007 |
02 |
| 008 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (BODY MT) (8.917) |
|
2007-2009 |
02 |
| 009 |
15837583 |
CUSHION, BODY BOLT LWR FRT (WHITE) (1.270) |
CK109 (06-36) |
2007-2009 |
02 |
| 010 |
15837582 |
CUSHION, BODY BOLT UPR FRT (BROWN) (1.270) |
CK1 (36) |
2007-2009 |
02 |
| 011 |
11562547 |
БОЛТ, HFH, M12X1.75X135, 100 THD, 24.7 OD, GMW25 (10.9) STL, GM 7112M, MACH (BODY MT) |
|
2007-2009 |
02 |
| 012 |
11562546 |
WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (BODY MT) |
|
2007-2009 |
02 |
