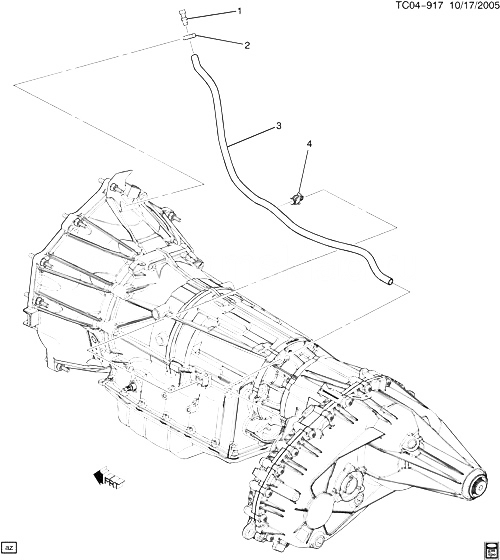

(TC04-917) - 2007-2009 K1,2,3 КОРПУС КП VENT TUBE CADILLAC - ESCALADE EXT (AWD) 2007
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15771000 | VENT, TRFER CASE (4.104) (ACDelco #15771000)| K1, 2, 3 |
2007-2007 |
01 |
|
| 002 | 19130464 | STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (TRFER CASE VENT HOSE)|
| 2007-2009 |
02 |
|
| 003 | 09438315 | HOSE, FUEL-OIL EVAP (TRFER CASE VENT) | 2007-2009 | AR | |
| 004 | 01648216 | CLAMP, WORM GEAR, HEX-SLOT SCREW, 1/4X5/8, .320 WIDE BAND, BLACK (TRANS FLUID CLR HOSE) (ACDelco #1648216) | 2007-2009 | 01 |
