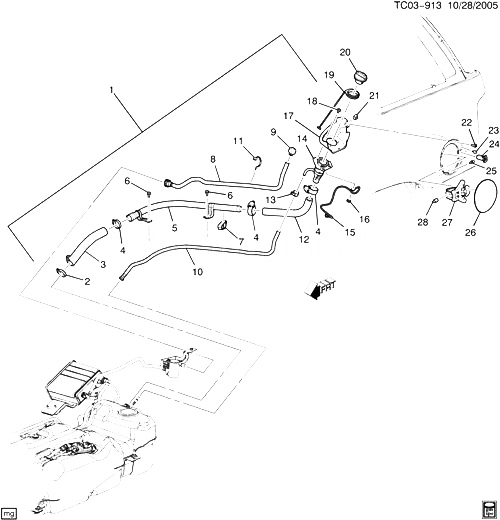

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25852919 |
PIPE, F/TNK FIL (INCLS 2-5, 7-18, 21) |
CK109 (06-36) (LY5, L76, L92) |
2007-2007 |
01 |
| 002 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1, 3) |
|
2007-2007 |
01 |
| 003 |
15793868 |
HOSE, F/TNK FIL (INCLS 2) (PART OF 1) (FILL PIPE LOWER) |
CK109 (06-36) (LY5, L76, L92) |
2007-2007 |
01 |
| 004 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1) |
|
2007-2007 |
03 |
| 005 |
|
PIPE, F/TNK FIL (PART OF 1) |
|
2007-2007 |
|
| 006 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL VENT HOSE BRKT) |
|
2007-2007 |
02 |
| 007 |
15090388 |
CLIP, F/TNK FIL PIPE (PART OF 1) |
CK1 (06-36) |
2007-2007 |
03 |
| 008 |
15793871 |
HOSE, F/TNK FIL VENT (INCLS 9) (PART OF 1) (HOSE ONLY) |
CK109 (06-36) (LY5, L76, L92) |
2007-2007 |
01 |
| 008 |
15844701 |
HOSE, F/TNK FIL VENT (INCLS 9) (PART OF 1) |
CK109 (06-36) (LY5, L76, L92) |
2007-2007 |
01 |
| 009 |
15146021 |
CAP, F/TNK VENT PIPE (PART OF 1, 8) |
CK1 (06-36) |
2007-2007 |
01 |
| 011 |
12337820 |
STRAP, 15 TIE STRAP (PART OF 1) (ACDelco #12337820) |
|
2007-2007 |
03 |
| 012 |
15124940 |
HOSE, F/TNK FIL (PART OF 1) (FILL PIPE UPPER) |
CK107, 109 (06-36) (LC9, LMG, LY2, LY5, L76, L92) |
2007-2007 |
01 |
| 013 |
11610236 |
CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 1) |
|
2007-2007 |
01 |
| 014 |
|
PIPE, F/TNK FIL (PART OF 1) |
|
2007-2007 |
|
| 015 |
15217509 |
STRAP, F/TNK FIL PIPE GND (PART OF 1) |
CK107, 109 (06-36) |
2007-2007 |
01 |
| 016 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) |
|
2007-2007 |
|
| 017 |
|
ШЛАНГИ, F/TNK FIL PIPE (PART OF 1) |
|
2007-2007 |
|
| 017 |
25844432 |
ШЛАНГИ, F/TNK FIL PIPE (PART OF 1) |
CK109 (06-36) (LC9, LMG, LY5, L76, L92) |
2007-2007 |
01 |
| 018 |
15714277 |
SCREW, W/WA AND SLR, M4.2X1.41X13, 5.4THD, 12.5 O.D., SELF TAP, ZC (PART OF 1) |
|
2007-2007 |
03 |
| 019 |
|
RETAINER, F/TNK FIL CAP STRP (PUSH IN) (PART OF 20) |
|
2007-2007 |
|
| 019 |
10403773 |
RETAINER, F/TNK FIL CAP STRP (PUSH IN) (PART OF 20) |
CK1, 2, 3 (LH6, LU3, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 020 |
15225006 |
CAP, F/TNK FIL (INCLS 19) (T-TYPE TETHER) (ACDelco #15225006) |
CK1, 2, 309 (LH6, LU3, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 020 |
25820825 |
CAP, F/TNK FIL (INCLS 19) (BUTTON TYPE TETHER) (ACDelco #GT289) |
CK1, 2, 309 (LH6, LU3, LY2, LY5, LY6, L76, L92) |
2007-2007 |
01 |
| 021 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 1)
|
2007-2007 |
02 |
|
| 022 |
15953840 |
SCREW, PAN HD TORX W/CON WA M6X1X25 AC PT 9.8 PC 12.5-OD (F/TNK FIL PIPE HSG) (3.003)
|
2007-2007 |
02 |
|
| 023 |
89047657 |
BUMPER, F/TNK FIL DR (PART OF DOOR) (HINGE) (12.945)
| CK109 (06-36) |
2007-2007 |
01 |
|
| 024 |
25880365 |
ПРУЖИНА, F/TNK FIL DR (12.945) (PRIOR TO INSTALL SEAL VOIDS IN PLUNGER HSG W/FLEXIABLE SEALER)
| CK1, 2 (06-36) |
2007-2007 |
01 |
|
| 025 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (F/TNK FIL PIPE HSG)
|
2007-2007 |
01 |
|
| 026 |
15940677 |
DOOR, F/TNK FIL (INCLS 27, 28) |
CK109 (06-36) |
2007-2007 |
01 |
| 027 |
15940679 |
HINGE, F/TNK FIL DR (BODY SI) (PART OF 26) |
CK109, 2 |
2007-2007 |
01 |
| 028 |
89047657 |
BUMPER, F/TNK FIL DR (PART OF DOOR) (PART OF 26) (HINGE) (12.945)
| CK109 (06-36) |
2007-2007 |
01 |
|
