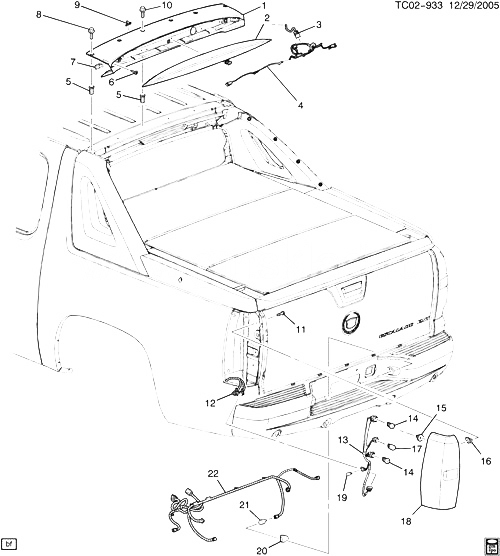

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88980817 |
BAR, CARGO BOX BRIDGE CR (INCLS 4, 6, 7, 9) (W/O LAMP) (PAINT TO MATCH) (17.090) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 001 |
88980817 |
BAR, CARGO BOX BRIDGE CR (INCLS 4, 6, 7, 9) (W/O LAMP) (PAINT TO MATCH) |
K1 (36) (Y91, Z75) |
2007-2009 |
01 |
| 002 |
15098920 |
LAMP, HIGH MT STOP |
K109 (36) (Y91, Z75) |
2007-2009 |
01 |
| 003 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (HAS RH AND LH CARGO LAMP CONN) (2.694) |
|
2007-2009 |
|
| 004 |
15077257 |
HARNESS, HIGH MT S/LP CARGO BOX STOW BOX LP WRG (PART OF 1) (HAS RH AND LH CARGO LAMP CONN) |
K109 (36) (Y91, Z75) |
2007-2009 |
01 |
| 005 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| K1 (36) |
2007-2009 |
06 |
|
| 005 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| K1 (36) |
2007-2009 |
06 |
|
| 006 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 1)
|
2007-2009 |
02 |
|
| 007 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 1)
|
2007-2009 |
02 |
|
| 008 |
11518705 |
SCREW, PAN TORX HD, W/WA SEAL, M6X1X27, 21 THD, 12.5O.D., 9.8, 6138M (CARGO BOX BRIDGE C/BAR) |
|
2007-2009 |
02 |
| 009 |
11518357 |
RETAINER, RECTANGULAR W/PRONGS, 20X21.25X20.2, FITS 9MM HOLE, PLAS, NAT (PART OF 1)
|
2007-2009 |
06 |
|
| 010 |
11518329 |
SCR, TORX PAN HD, W/WA, M6X1X25, 18 THD, 15 OD, 9.8, 6138M, TORX (CARGO BOX BRIDGE C/BAR) |
|
2007-2009 |
04 |
| 011 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (T/LP)
|
2007-2009 |
04 |
|
| 012 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (HAS RH AND LH CARGO LAMP CONN) (2.694) |
|
2007-2009 |
|
| 013 |
25862710 |
HARNESS, T/LP WRG (LH RH) (PART OF 18) |
K109 (36) (Y91, Z75) |
2007-2009 |
02 |
| 014 |
21994812 |
BULB, STOP TAIL T/SIG LP (PART OF 18) (TRADE# 3057KX) (8.991) (ACDelco #3057KX)
| K109 (36) (Z75, Y91) |
2007-2009 |
02 |
|
| 015 |
11561987 |
RETAINER, T/LP (PART OF 18) (TOP) |
K109 (36) (Y91, Z75) |
2007-2009 |
04 |
| 016 |
11609759 |
ГАЙКА, U-TYPE M4.2X1.41, 16.4X12.5, 9.14 C/E, SAE1050 STL, GMW359, 0.65-3.8PNL RN (PART OF 18) |
|
2007-2009 |
02 |
| 017 |
15224109 |
BULB, B/U LP (PART OF 18) (TRADE # 7441 (T20 TYPE)) (8.991) (ACDelco #7441)
| K109 (36) (Z75, Y91) |
2007-2009 |
02 |
|
| 018 |
25885681 |
LAMP, TAIL (INCLS 13-17, 19) |
K109 (36) (Y91, Z75) |
2007-2009 |
01 |
| 018 |
25885682 |
LAMP, TAIL (INCLS 13-17, 19) |
K109 (36) (Y91, Z75) |
2007-2009 |
01 |
| 019 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 18) (ACDelco #L194) |
|
2007-2009 |
01 |
| 020 |
15082619 |
LAMP, RR LIC PLT (BLACK) (GRAINED) (MAY NEED TO REPLACE IN PAIRS DUE TO COLOR CHANGE) |
K1, 2 (36) (V43) |
2007-2007 |
02 |
| 020 |
15805196 |
LAMP, RR LIC PLT
| K1 (36) (VGE, Z75) |
2007-2009 |
02 |
|
| 021 |
09425542 |
BULB, LAMP #192 (PART OF 22) (ACDelco #L168) |
|
2007-2009 |
02 |
| 022 |
15203099 |
HARNESS, RR LIC PLT LP WRG HARN EXTN (INCLS 21) |
K1 (36) (VGE, Z75) |
2007-2009 |
01 |
