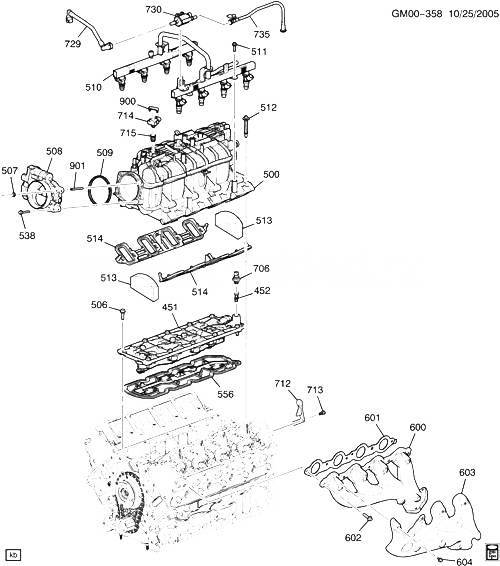

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 451 |
12571609 |
MANIFOLD, VLV LFTR OIL (ДВИГАТЕЛЬS BUILD WITH AFM PROIR TO 4/01/06) (INCLS 452, 506, 556)
| CK1 (L92) |
2007-2007 |
01 |
|
| 452 |
12585328 |
ФИЛЬТР, VLV LFTR OIL (ДВИГАТЕЛЬS BUILD WITH AFM PROIR TO 4/01/06) (PART OF 451)
| CK1 (L92) |
2007-2007 |
01 |
|
| 500 |
12580678 |
MANIFOLD, INT |
CK1 (L92) |
2007-2007 |
01 |
| 506 |
11518075 |
БОЛТ, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (PART OF 451)
|
2007-2007 |
10 |
|
| 507 |
|
ГАЙКА, THROT BODY (*KIT1) |
|
2007-2007 |
|
| 508 |
12580760 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-2422)
| CK1 (L92) |
2007-2007 |
01 |
|
| 509 |
12589235 |
SEAL, THROT BODY (ACDelco #217-2424)
| CK1 (L92) |
2007-2007 |
01 |
|
| 510 |
|
INJECTOR, SEQ M/PORT FUEL (W/FUEL RL) (СМ. ГРУППУ 03.000 РАМКА ТОПЛИВНОГО ИНЖЕКТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2007 |
|
| 511 |
12580910 |
БОЛТ, F/INJR DRVR MDL |
CK1 (L92) |
2007-2007 |
04 |
| 512 |
12575384 |
БОЛТ, INT MANIF |
CK1 (L92) |
2007-2007 |
10 |
| 513 |
|
INSULATOR KIT, INT MANIF |
|
2007-2007 |
|
| 514 |
89060434 |
GASKET, INT MANIF
| CK1 (L92) |
2007-2007 |
01 |
|
| 514 |
89060434 |
GASKET, INT MANIF
| CK1 (L92, MYC) |
2007-2007 |
01 |
|
| 538 |
|
БОЛТ, THROT BODY (*KIT1) |
|
2007-2007 |
|
| 556 |
89017690 |
GASKET, VLV LFTR OIL UPR MANIF (ДВИГАТЕЛЬS BUILT WITH AFM PRIOR TO 4/01/06) (PART OF 451)
| CK1 (L92) |
2007-2007 |
01 |
|
| 600 |
12616285 |
MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS)
| CK1 (L92) |
2007-2007 |
01 |
|
| 600 |
12616286 |
MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS)
| CK1 (L92) |
2007-2007 |
01 |
|
| 601 |
12600530 |
GASKET, EXH MANIF |
CK1 (L92) |
2007-2007 |
02 |
| 602 |
11518860 |
БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF FLG)
|
2007-2007 |
12 |
|
| 603 |
12562243 |
SHIELD, EXH MANIF HT (PART OF 600) |
CK1 (L92) |
2007-2007 |
01 |
| 603 |
12562244 |
SHIELD, EXH MANIF HT (PART OF 600) |
CK1 (L92) |
2007-2007 |
01 |
| 604 |
24505098 |
БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (PART OF 600) |
|
2007-2007 |
AR |
| 706 |
12616646 |
SENSOR, ENG OIL PRESS (ACDelco #D1846A)
| CK1, 2, 3 (LC9, LH6, LMG, L92, L76, LFA) |
2007-2007 |
01 |
|
| 712 |
12578463 |
STOP, F/INJN FUEL RL |
CK1 (L92) |
2007-2007 |
01 |
| 713 |
11515764 |
БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) |
|
2007-2007 |
01 |
| 714 |
09359409 |
SENSOR, MAP (PUSH-IN) (INCLS SEAL) (INCLS 715) (ACDelco #9359409) |
CK1, 2, 3 (LC9, LY2, LY5, LY6, L76, LMG, LH6, L92) |
2007-2007 |
01 |
| 715 |
16194007 |
SEAL, MAP SEN (PART OF 714)
| CK1 (LC9, LY2, LY5, L92, L76, LMG, LH6) |
2007-2007 |
01 |
|
| 729 |
12574897 |
HARNESS, EVAP EMIS CNSTR |
CK1, 2, 3 |
2007-2007 |
01 |
| 730 |
12606684 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142)
| CK1, 2, 3 (L92) |
2007-2007 |
01 |
|
| 735 |
12617169 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1, 2, 3 (L76, L92) |
2007-2007 |
01 |
| 900 |
12594132 |
RETAINER, MAP SEN |
CK1 (LC9, LY2, LY5, L92, L76, LMG, LH6) |
2007-2007 |
01 |
| 901 |
|
STUD, THROT BODY (*KIT1) |
|
2007-2007 |
|
| K01 |
89017591 |
BOLT KIT, THROT BODY (INCLS 507, 538, 901) (INCLS BOLT, STUD, NUT) |
CK1 (L92) |
2007-2007 |
02 |
