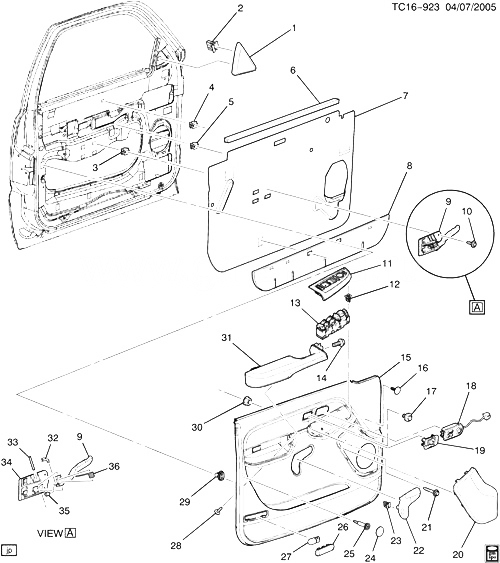

(TC16-923) - 2005-2006 CK1(06-36) ОТДЕЛКА ДВЕРИ/SIDE FRONT-DRIVER (CADILLAC Z75) CADILLAC - ESCALADE EXT (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10374376 PANEL, FRT S/D UPR FRT TR (INCLS 2) (EBONY) CK1 (Y91, Z75, 15I, 92I) 2004-2006 01
002 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 1) 2004-2006 02
003 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (FRT S/D I/S HDL) 2004-2006 02
004 11518162 NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (FRT S/D TR PNL) 2004-2006 02
005 11519497 ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (FRT S/D TR PNL) 2004-2006 04
006 15138387 SEALING STRIP, FRT S/D WDO INR (USE T/W 15219153 LH OR 15219154 RH WEATHERSTRIP) CK1, 2, 3 2004-2006 02
007 21996546 DEFLECTOR, FRT S/D WAT CK1, 2, 3 2004-2006 01
008 21996162 DEFLECTOR, AUX FRT S/D WAT CK1, 2, 3 (YE9) 2004-2006 02
009 10358997 HANDLE, FRT S/D I/S (INCLS 32-36) (BRIGHT CHROME) (WHEN REPLACING DULL SILVER HANDLE W/BRIGHT CHROME, REPLACE OPPOSING SIDE TO MATCH) CK1 (06-36) (Y91, Z75) 2005-2006 01
010 11518297 BOLT-HEX, M6X1X18, 10 THD, 17 OD, 9.8, 7114M, MACH, DOG-PT, 6175M ADH ON THD (FRT S/D I/S HDL) 2004-2006 02
011 89045129 PLATE, FRT S/D ACSRY SW MT (PART OF 15) (INCLS 12) (PEWTER) CK1 (36) (92I) 2006-2006 01
011 89045143 PLATE, FRT S/D ACSRY SW MT (PART OF 15) (INCLS 12) (SHALE) (VINYL) CK1 (06-36) (YE9, Y91, Z75, 15I) (EXC ULT) 2004-2006 01
012 15254056 RETAINER, FRT S/D ACSRY SW MT PLT (PART OF 11, 15) (8.950) CK1, 2, 3 2004-2006 01
013 15883319 SWITCH, DR LK SI WDO (FRT S/D DR SI) (INCLS MODULE MIRROR SW) CK1 (06-36) (A31, DL3, DR4, JF4) 2006-2006 01
013 15883321 SWITCH, DR LK SI WDO (FRT S/D DR SI) (INCLS MODULE) CK1 (36) (A31, DL8, DPN, JF4) 2006-2006 01
014 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 15) 2004-2006 01
015 15281999 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 28-31) (SHALE) CK1 (06-36) (AN3, YE9, Y91, Z75, 152) (EXC ULT) 2005-2006 01
015 15282000 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 28-31) (PEWTER) CK1 (06-36) (AN3, YE9, Y91, Z75, 922) 2005-2006 01
015 15290211 PANEL, FRT S/D TR (INCLS 11, 12, 14, 18, 20, 28-31) (PEWTER) K1, 2 (36) (A95, JF4, UQ7, YE9, 92D, 922) 2006-2006 01
016 15205956 RETAINER, FRT S/D T/PNL (PUSH IN) (SHALE) CK1 (YE9, 15I) 2005-2006 02
016 15205959 RETAINER, FRT S/D T/PNL (PUSH IN) (PEWTER) CK1, 2, 3 (YE9, 92I) 2005-2006 02
017 15714276 SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (FRT S/D T/PNL) (8.977) 2004-2006 02
018 15116862 SWITCH, D/SEAT ADJR MEMORY, HTR AND PED (PART OF 15) (W/ ADJUSTABLE PEDALS) (INCLS RETAINER) CK1 (06-36) (AN3, YE9, Y91, Z75, 152, 922) (EXC ULT) 2004-2006 01
019 15172121 LEVER, FRT S/D LK CK1, 2, 3 2004-2006 02
020 GRILLE, RDO FRT S/D LWR SPKR (PART OF 15) 2005-2006
021 11589014 БОЛТ, HWH W/FL WA 12.5 OD, M4.2X1.41X35, 27.3 THD, ISO2702 STL, GMW4205, T (FRT S/D T/PNL) 2004-2006 01
022 15043574 BEZEL, FRT S/D I/S HDL (INCLS 23) (PEWTER) CK1, 2, 3 (YE9, 92I) 2004-2006 01
022 15767113 BEZEL, FRT S/D I/S HDL (INCLS 23) (SHALE) CK1 (YE9, 15I) 2004-2006 01
023 15594543 CLIP, FRT S/D I/S HDL BZL REINF (PART OF 22) (12.7 X 10.4) (9.665) CK1, 2 2004-2006 04
024 15205960 CAP, FRT S/D TR BOLT (SHALE) CK1 (YE9, 15I) 2005-2006 02
024 15205963 CAP, FRT S/D TR BOLT (PEWTER) CK1, 2, 3 (YE9, 92I) 2005-2006 02
025 11588619 SCREW, TORX, PAN HD, M4.2X1.41X44, 40 THD, 15 O.D., P-PT, 6010, 3044GMW (FRT S/D T/PNL) (8.913) 2004-2006 01
026 15021517 LAMP, FRT S/D CTSY (INCLS 27) (RED AND CLEAR) (INCLUDES SOCKET AND BULB) CK1, 2, 3 2004-2006 01
027 09425542 BULB, LAMP #192 (PART OF 26) (ACDelco #L168) 2004-2006 01
028 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PART OF 15) 2004-2006 05
029 RETAINER, FRT S/D T/PNL (PART OF 15) 2005-2006
030 11502553 ГАЙКА, STAMPED, M6.3 STUD, SELF THD, STL, PC (PART OF 15) 2004-2006 05
031 88981548 ARMREST, FRT S/D (PART OF 15) (PEWTER) CK1, 2, 3 (92I) 2004-2006 01
031 88981550 ARMREST, FRT S/D (PART OF 15) (SHALE) CK1 (06-36) (YE9, Z75, 15I) (EXC ULT) 2004-2006 01
032 88937023 CLIP, FRT S/D I/S HDL ROD (PART OF 9) CK1 (06-36) (Y91, Z75) 2004-2006 01
033 PIN, FRT S/D I/S HDL PIV (PART OF 9) 2005-2006
034 PLATE, FRT S/D I/S HDL BRG (PART OF 9) 2005-2006
035 88937025 BUMPER, FRT S/D I/S HDL (PART OF 9) CK1 (06-36) (Y91, Z75) 2004-2006 02
036 ПРУЖИНА, FRT S/D I/S HDL (PART OF 9) 2005-2006
