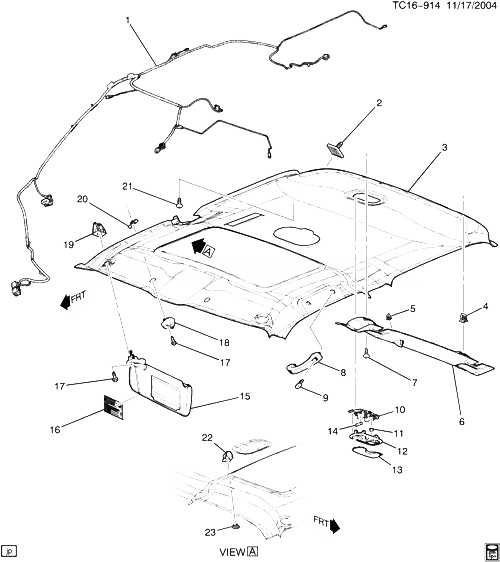

(TC16-914) - 2005-2006 CK(36) ОТДЕЛКА/ВНУТРЕННЯЯ-КРЫША (SUN ROOF CF5, U42) CADILLAC - ESCALADE EXT (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15143669 HARNESS, RF ACSRY WRG (PART OF 3) K159 (36) (CF5, DK8, U42, Y91) 2005-2006 01
002 15763887 RETAINER, HDLNG FRT T/PNL (DUAL LOCK) (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) CK159 (36) 2005-2006 AR
003 15127668 PANEL, HDLNG TR (INCLS 1, 8-14, 18, 20, 22, 23) (PEWTER) K159 (36) (CF5, DK8, U42, Y91, 92I) 2005-2006 01
003 15790077 PANEL, HDLNG TR (INCLS 1, 8-14, 18, 20, 22, 23) (SHALE) K159 (36) (CF5, DK8, U42, Y91, 15I) 2005-2006 01
004 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 6) 2005-2006 04
005 11518663 CLIP, HDLNG T/PNL (PART OF 6) (17.0X9.6) K159 (36) 2005-2006 03
006 93803888 MOLDING, HDLNG T/PNL (INCLS 4, 5) (SHALE) CK1, 2 (36) (Y91, 15I) 2006-2006 01
006 93803889 MOLDING, HDLNG T/PNL (INCLS 4, 5) (PEWTER) K159 (36) (Y91, 92I) 2006-2006 01
007 11508256 БОЛТ, HFH, SELF-TAP, M4.2X1.4X13, 11.6THD, 8.5 O.D., GM6010M, POR (HDLNG T/PNL) (ACDelco #11508256) 2005-2006 02
007 15761652 RETAINER, HDLNG T/PNL MLDG (PEWTER) (16.575) CK1 (36) (92I) 2005-2006 02
007 15761653 RETAINER, HDLNG T/PNL MLDG (NEUTRAL) (17.185) CK1 (36) (52I) 2005-2006 02
007 15769072 RETAINER, HDLNG T/PNL MLDG (SHALE) (16.575) CK1 (36) (15I) 2005-2006 02
008 15044366 HANDLE, ASST (PART OF 3) (INCLS 9) (SHALE) (INCLUDES RETAINER) CK1 (06-36) (52I, 92I) 2005-2006 01
008 15044366 HANDLE, ASST (PART OF 3) (INCLS 9) (SHALE) (INCLUDES RETAINER) K159 (36) (15I) 2005-2006 01
008 15048750 HANDLE, ASST (PART OF 3) (INCLS 9) (PEWTER) (FRT PASS SIDE) (INCLUDES RETAINERS) K159 (06-36) (92I) 2005-2006 01
009 RETAINER, ASST HDL (PUSH ON) (PART OF 3, 8) 2005-2006
010 15032587 ШЛАНГИ, DM RDG LP (PART OF 3, 12) CK1, 2, 3 2005-2006 01
011 15166059 PUSHBUTTON, RDG LP SW (PART OF 3, 12) (EBONY) CK1, 2, 3 2005-2006 02
012 15166055 LAMP, DM RDG (PART OF 3) (INCLS 10, 11, 13, 14) (PEWTER) (W/ PUSHBUTTONS 3 BULB LAMP) CK1 (36) (92I) 2005-2006 AR
013 15032588 LENS, DM RDG LP (PART OF 3, 12) (3 BULB STYLE) CK1, 2, 3 2005-2006 01
014 12450074 BULB, TRADE #578 (PART OF 3, 12) (ACDelco #578) 2005-2006 03
015 15282714 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 16, 17) (SHALE) CK1, 2 (36) (DH6, 15I, 52I) 2006-2006 01
015 15282715 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 16, 17) (PEWTER) CK1 (06-36) (DH6, Z75, 92I) 2006-2006 01
015 15282717 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 16, 17) (SHALE) CK1, 2 (36) (DH6, 15I, 52I) 2006-2006 01
015 15282718 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 16, 17) (PEWTER) CK1 (36) (DH6, Z75, 92I) 2006-2006 01
016 15006352 LABEL, INFL RST SYS WRNG (PART OF 15) (ENGLISH/FRENCH) CK1, 2, 3 2005-2006 02
016 15093588 LABEL, INFL RST SYS WRNG (PART OF 15) (ENGLISH/ARABIC) CK1, 2 (06-36) (AL0, DH6) (EXC ULT) 2005-2006 02
016 15114992 LABEL, INFL RST SYS WRNG (PART OF 15) (ENGLISH/ARABIC) CK1 (36) (AL0, VBX) (EXPORT) 2005-2006 02
016 15116388 LABEL, INFL RST SYS WRNG (PART OF 15) (ENGLISH/SPANISH) CK1 (36) (AL0, DH6) (EXC ULT) 2005-2006 02
017 11516440 SCREW (PART OF 15) 2005-2006 08
018 15186286 RETAINER, S/S (PART OF 3) (INCLS 20) (SHALE) (OPENING FACES AWAY FROM FASTENER) CK1, 2 (36) (52I) 2005-2006 02
018 15186286 RETAINER, S/S (PART OF 3) (INCLS 20) (SHALE) (OPENING FACES AWAY FROM FASTENER) K1 (36) (15I) 2005-2006 02
018 15186287 RETAINER, S/S (PART OF 3) (INCLS 20) (PEWTER) K1 (36) (Y91, 92I) 2005-2006 02
019 10056725 ГАЙКА, PUSH-IN, M4.2X1.41, 50 CARB SPR STL, GM7111M PO ZOR (S/S) 2005-2006 06
020 ГАЙКА, S/S SUPT (PART OF 3, 18) 2005-2006
021 15206648 RETAINER, HDLNG T/PNL (SHALE) (LONG PUSH PIN) (LENGTH 47.5MM) CK1 (36) (CF5, Y91, 15I) 2005-2006 02
021 15206649 RETAINER, HDLNG T/PNL (PEWTER) (LONG PUSH PIN) K159 (36) (CF5, Y91, 92I) 2005-2006 02
022 25903301 ASPIRATOR, I/S AIR TEMP SEN (PART OF 3) (ACDelco #15-51256) CK1, 2 (36) 2005-2006 01
023 15029309 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 3) (GRAPHITE) CK1 (06-36) (92I) 2006-2006 01
023 15044378 GRILLE, I/S AIR TEMP SEN ASPIRATOR (PART OF 3) (SHALE) CK1, 2, 3 (15I, 52I, 69I, 92I) 2005-2006 02
