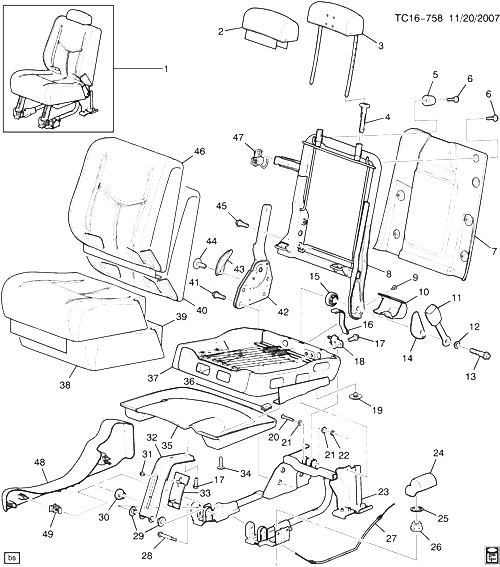

(TC16-758) - 2003-2006 CK1,2(36) ЗАДНЕЕ СИДЕНЬЕ/FOLDING-40% SIDE(AT5) CADILLAC - ESCALADE EXT (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, RR (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-44) 2003-2006
002 88976858 COVER, R/SEAT H/RST (PEWTER) K159 (36) (AN3, AT5, Z75, 922) 2003-2006 02
002 88976859 COVER, R/SEAT H/RST (SHALE) K159 (36) (AN3, AT5, Z75, 152) 2003-2006 02
003 88938513 PAD, R/SEAT H/RST K159 (36) (AT5, Z75) 2003-2006 02
004 12473301 SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2 (AT5, 92D, 922) 2003-2006 04
004 12478541 SUPPORT, R/SEAT H/RST (SHALE) (W/O BUTTON) K159 (36) (AT5, Z75, 152) 2003-2006 04
004 88935568 SUPPORT, R/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1, 2 (AT5, 52D, 522) 2003-2006 04
005 88938525 INSULATOR, R/SEAT BK CUSH CK1 (36) 2004-2006 01
006 20683491 БОЛТ, R/SEAT CUSH T/PNL (BACK CUSH) (M4.2X1.41X25) (SCREW PAN HD, TORX) (12.945) CK1, 2 (36) (AT5) 2003-2006 AR
007 88941125 PANEL, R/SEAT BK CUSH TR CK1 (36) (AT5) 2003-2006 01
008 88941104 FRAME, R/SEAT BK CUSH CK1 (36) (AT5) 2004-2006 01
009 88938526 БОЛТ, R/SEAT CUSH T/PNL (M6X1X23.5, 19.5 THD) CK1, 2 (36) (AT5) 2003-2006 09
010 88939098 COVER, R/SEAT LAT FIN (PEWTER) CK159 (36) (AT5, AN3, Z75, 922) 2003-2006 03
010 88939099 COVER, R/SEAT LAT FIN (NEUTRAL) CK159 (36) (AT5, Y91, Z75, 152) 2003-2006 03
010 88939173 COVER, R/SEAT LAT FIN (NEUTRAL) CK1, 2 (36) (AT5, 52D, 522) 2003-2006 03
011 88955202 BELT KIT, R/SEAT CTR (BKL SI) (INCLS 12) (PEWTER) (SINGLE BKL) (40% SEAT LOCATION) (14.875) K159 (36) (AT5, Z75, 922) 2003-2006 01
011 88955204 BELT KIT, R/SEAT CTR (BKL SI) (INCLS 12) (SHALE) (SINGLE BKL) (14.875) K159 (36) (AT5, Z75, 152) 2003-2006 01
012 BUSHING, R/SEAT BELT (PART OF 11) 2003-2006
013 11562386 БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) 2003-2006 AR
014 88978733 COVER, R/SEAT BELT BOLT (BKL SI) (WHEAT) CK1 (36) 2004-2006 01
015 12477365 BUSHING, R/SEAT HGE BRKT CK1, 2, 3 2003-2006 08
016 12477416 STRAP, R/SEAT BK CUSH LAT (PEWTER) CK1 (36) (AT5, 92I) 2005-2006 02
016 12479651 STRAP, R/SEAT BK CUSH LAT (SHALE) K159 (36) (AT5, Z75, 152) 2003-2006 02
016 88936548 STRAP, R/SEAT BK CUSH LAT (NEUTRAL) CK1 (36) (AT5, 52D) 2004-2006 02
017 11562386 БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) 2003-2006 AR
018 12477379 LATCH, R/SEAT (40%) (CUSHION) CK1 (36) (AT5) 2004-2006 01
019 88936538 BUMPER, R/SEAT CUSH CK1 (36) (AT5) 2004-2006 05
020 12477366 БОЛТ, R/SEAT HGE BRKT (M8X1.25X73.41) CK1 (36) (AT5) 2004-2006 04
021 12479648 BUSHING, R/SEAT BK CUSH LAT (STRIKER BOLT) CK1 (36) (AT5) 2004-2006 06
021 88939502 BUSHING, R/SEAT BK CUSH LAT (CABLE) CK1 (36) (AT5) 2004-2006 04
022 88934535 ГАЙКА, R/SEAT BK CUSH LAT STKR CK1 (36) (AT5) 2004-2006 01
023 88941106 RISER, R/SEAT CK1 (36) (AT5) 2004-2006 01
024 15181142 COVER, R/SEAT HGE STUD FIN (INCLS 25) (SHALE) (I/B) K159 (06-36) (AT5, 15I) 2003-2006 01
024 15181143 COVER, R/SEAT HGE STUD FIN (INCLS 25) (NEUTRAL) (I/B) CK1 (36) (AT5, 52I) 2004-2006 01
024 15181145 COVER, R/SEAT HGE STUD FIN (INCLS 25) (PEWTER) (I/B) CK159 (36) (AT5, 92I) 2004-2006 01
025 11502737 ГАЙКА, PUSH ON, M12X1.75, PC (PART OF 24) 2003-2006 01
026 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2003-2006 AR
027 88941330 CABLE, R/SEAT BK CUSH LAT CK1, 2 (36) (AT5) 2003-2006 02
028 12477366 БОЛТ, R/SEAT HGE BRKT (M8X1.25X73.41) CK1 (36) (AT5) 2004-2006 04
030 88939502 BUSHING, R/SEAT BK CUSH LAT (CABLE) CK1 (36) (AT5) 2004-2006 04
031 88936521 БОЛТ, R/SEAT RSR FIN CVR (SCREW-ROUND WASHER) (M4.2X1.41X13) (ROUND WASHER) CK1 (36) (AT5) 2004-2006 02
032 12477386 BRACKET, R/SEAT HGE (BLACK) (STRAIGHT LEG) CK1 (36) (AT5) 2004-2006 02
033 12479652 COVER, R/SEAT FRT RSR FIN (BLACK) (STRAIGHT LEG) (16.720) CK1, 2 (36) (AT5) 2003-2006 03
034 88938526 БОЛТ, R/SEAT CUSH T/PNL (M6X1X23.5, 19.5 THD) CK1, 2 (36) 2003-2006 09
035 88938523 PANEL, R/SEAT CUSH TR (BLACK) (16.716) CK1, 2 2003-2006 01
036 88938511 ГАЙКА, R/SEAT (U, M6X1X1, 29.5X12.6) CK1, 2 (36) (AT5) 2003-2006 AR
037 88938512 FRAME, R/SEAT CUSH K159 (36) (AT5, Z75) 2003-2006 01
038 88941585 PAD, R/SEAT CUSH CK1 (36) (AT5) 2004-2006 01
039 88976357 COVER, R/SEAT CUSH (PEWTER) K159 (36) (AN3, AT5, Z75, 922) 2003-2006 01
039 88976358 COVER, R/SEAT CUSH (SHALE) K159 (36) (AN3, AT5, Z75, 152) 2003-2006 01
040 88941632 PAD, R/SEAT BK CUSH CK1 (36) (AT5) 2004-2006 01
041 88981400 БОЛТ, R/SEAT RSR (M10X1.5X52.5) CK1 (36) (AT5) 2004-2006 02
045 88978440 БОЛТ, R/SEAT BK CUSH FRM (M10X1.5X31) (HFH W/BUSHING ASM) CK1 (36) (AT5) 2004-2006 02
046 88976351 COVER, R/SEAT BK CUSH (PEWTER) K159 (36) (AN3, AT5, Z75, 922) 2003-2006 01
046 88976352 COVER, R/SEAT BK CUSH (SHALE) K159 (36) (AN3, AT5, Z75, 152) 2003-2006 01
047 15069120 GUIDE, R/SEAT SHLDR BELT (SHALE) CK159 (36) (AN3, AT5, Z75, 152) 2003-2006 02
047 15755985 GUIDE, R/SEAT SHLDR BELT (PEWTER) (LOWER COMFORT GUIDE) CK159 (36) (AN3, AT5, Z75, 922) 2003-2006 02
047 15755986 GUIDE, R/SEAT SHLDR BELT (NEUTRAL) (LOWER COMFORT GUIDE) CK1, 2 (36) (52I) 2003-2006 02
048 15188377 PANEL, R/SEAT FLR FIL TR (INCLS 49) (SHALE) K159 (36) (15I) 2003-2006 01
048 15188378 PANEL, R/SEAT FLR FIL TR (INCLS 49) (NEUTRAL) CK1 (36) (52I) 2004-2006 01
048 15188380 PANEL, R/SEAT FLR FIL TR (INCLS 49) (PEWTER) CK1 (36) (92I) 2004-2006 01
049 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 48) 2003-2006
