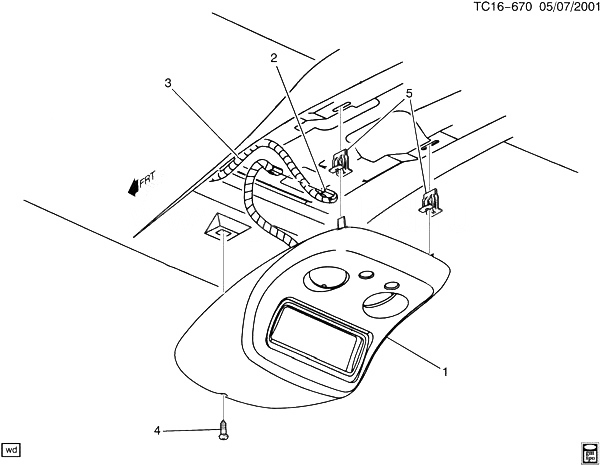

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15256877 |
КОНСОЛЬ, RF (SHALE) |
CK1 (36) (DK7, UG1, 15I, 52I) (EXC UE1) |
2003-2006 |
01 |
| 001 |
15812244 |
КОНСОЛЬ, RF (SHALE) |
CK1 (36) (DK7, UE1, UG1, 15I, 52I) |
2003-2006 |
01 |
| 001 |
15826743 |
КОНСОЛЬ, RF (SHALE) |
CK1, 2, 3 (52I, 69I, 6C7) |
2003-2006 |
01 |
| 002 |
12101864 |
CONNECTOR, LP-DM (BLACK) (3-WAY FEMALE) (MP150) (W/LEADS) (2.535) (ACDelco #PT256) |
CK1, 2 (06-36) |
2006-2006 |
02 |
| 003 |
15143658 |
HARNESS, RF ACSRY WRG |
CK1, 2 (36) (CJ3, DK7) |
2003-2006 |
01 |
| 003 |
15143658 |
HARNESS, RF ACSRY WRG |
K159 (36) (CJ2, DK7, Y91) (EXC U42) |
2003-2006 |
01 |
| 003 |
15143661 |
HARNESS, RF ACSRY WRG |
K159 (36) (CJ2, DK7, U42, Y91) |
2003-2006 |
01 |
| 003 |
15143671 |
HARNESS, RF ACSRY WRG |
K159 (36) (CJ2, DK7, U42, Y91) |
2005-2006 |
01 |
| 004 |
11504773 |
SCREW, PAN HD, TORX, SELF TAP, M4.2X1.41X40, BLK OXIDE |
|
1999-2007 |
01 |
| 005 |
15748479 |
RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (RF CNSL BKG PLT) |
|
1999-2007 |
02 |
