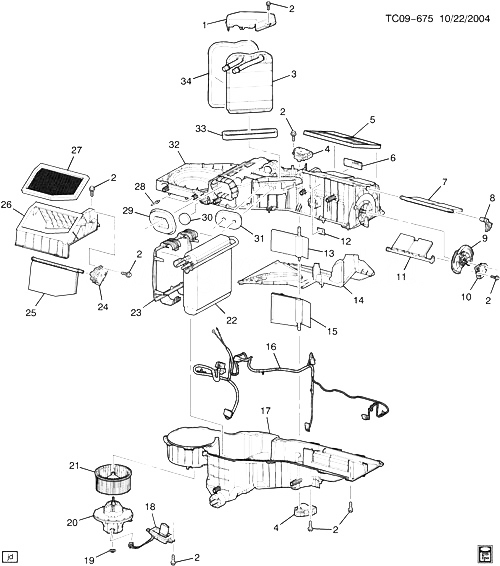

(TC09-675) - 2003-2006 CK(03-36-43-53) КОНДИЦИОНЕР И НАГРЕВАТЕЛЬ В СБОРЕ (CJ3, EXC D07) CADILLAC - ESCALADE EXT (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89018299 CASE, HTR CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
002 11609829 БОЛТ, FLR AIR OTLT DUCT (4.2X2.25X16) (9.786) CK1, 2, 3 (CJ3, C36, C69, CJ2) 2006-2007 01
003 89018297 CORE, HTR (INCLS 33, 34) (INCLS 2 SEALS) (ACDelco #15-62960) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
004 89018365 ACTUATOR, TEMP VLV (TOP) (ACDelco #15-72971) CK1, 2, 3 (CJ3) 2003-2007 02
005 SEAL, BLO UPR CASE (*KIT3) 2003-2006
006 LABEL, AIR DISTR DUCT IDENT 2003-2006
007 VALVE, DEFR (PART OF 32) 2003-2006
008 52474960 LEVER, MODE VLV CK1, 2, 3 2003-2007 01
009 CAM, MODE CONT (*KIT1) 2003-2006
010 ACTUATOR, AIR INL VLV (*KIT1) 2003-2006
011 89018304 VALVE, DEFR (ACDelco #15-50561) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
012 LABEL, HTR A/C EVPR BLO MDL IDENT 2003-2006
013 89018307 VALVE, TEMP CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
014 89018302 SHIELD, HTR A/C EVPR BLO MDL HT CK1, 2, 3 2003-2007 01
015 89018306 VALVE, TEMP CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
016 89019090 HARNESS, A/C CONT WRG CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
017 89018301 CASE, HTR A/C EVPR BLO LWR (INCLS 19) (8.854) CK1, 2 (36) (CJ2, CJ3) (EXC D07) 2003-2006 01
018 89019088 RESISTOR, BLO MOT (W/LEADS) (9.215) (ACDelco #15-81086) (MAY REQUIRE DISCARDING OF OE RESISTOR MOUNTING PLATE MOUNTING NEW RESISTOR DIRECTLY TO CASE.) CK1, 2, 3 (03-36-43-53) (CJ3) (EXC D07) 2003-2006 01
018 89019088 RESISTOR, BLO MOT (W/LEADS) (ACDelco #15-81086) (MAY REQUIRE DISCARDING OF OE RESISTOR MOUNTING PLATE MOUNTING NEW RESISTOR DIRECTLY TO CASE.) CK1, 2, 3 (03-36-43-53) (CJ3) (EXC D07) 2003-2006 01
019 89018353 PLUG, HTR CASE (PART OF 17) (9.5MM DIA) CK1, 2, 3 2004-2007 01
020 MOTOR, BLO (W/IMPLR) (*KIT2) 2003-2006
021 BLOWER, (*KIT2) 2003-2006
022 89018296 EVAPORATOR, A/C (ACDelco #89018296) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
023 89018295 SEAL, A/C EVPR (*KIT3) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
024 89018678 ACTUATOR, AIR INL VLV (ACDelco #15-73599) CK1, 2, 3 (CJ3) 2003-2007 01
025 VALVE, DEFR (PART OF 26) 2003-2006
026 89018837 INLET, AIR (INCLS 25, 27) CK1, 2 (36) (CJ2, CJ3) (EXC D07) 2003-2006 01
027 SEAL KIT, HTR A/C EVPR BLO MDL (PART OF 26) (*KIT3) 2003-2006
028 52477012 STUD, HTR A/C EVPR BLO MDL (M6X1.0X30) (TORX HEAD) CK1, 2, 3 2003-2006 02
029 SEAL, A/C EVPR (*KIT3) 2003-2006
030 SEAL, HTR A/C EVPR BLO MDL DRN TUBE (*KIT3) 2003-2006
031 SEAL, HTR INL OTLT PIPE (*KIT3) 2003-2006
032 89018298 CASE, HTR A/C EVPR BLO UPR (INCLS 7) (INC A/C VALVE ASM) (8.854) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
033 SEAL, HTR CORE (SEPARATOR) (PART OF 3) (*KIT3) 2003-2006
034 SEAL, HTR CORE (PART OF 3) (*KIT3) 2003-2006
K01 89018374 ACTUATOR, MODE CONT CAM (INCLS 9, 10) (ACDelco #15-73952) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
K02 89019182 MOTOR KIT, BLO (W/ IMPLR) (INCLS 20, 21) (ACDelco #15-81122) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
K02 89019182 MOTOR KIT, BLO (W/ IMPLR) (INCLS 20, 21) (8.855) (ACDelco #15-81122) CK1, 2 (36) (CJ3) (EXC D07) 2003-2006 01
K03 89018784 SEAL KIT, HTR A/C EVPR BLO MDL (5, 23, 27, 29-31, 33, 34) CK1, 2, 3 (CJ2, CJ3) 2003-2007 01
