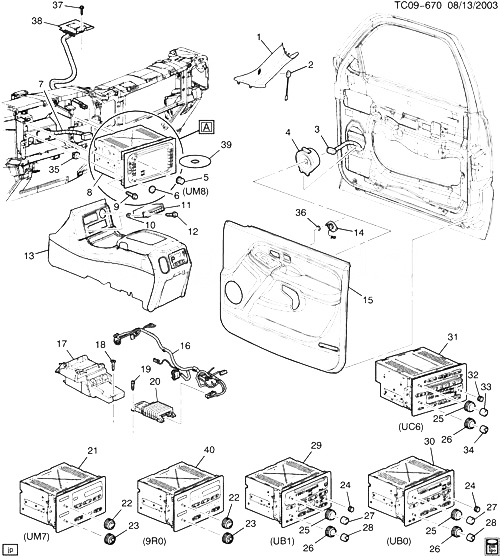

(TC09-670) - 2003-2006 CK1,2,3(06-36-43-53) АУДИОСИСТЕМА/FRONT CADILLAC - ESCALADE EXT (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 MOLDING, W/S SI GARN (СМ. ГРУППУ 16.000 SIDE TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 2) 2003-2007
002 10369087 SPEAKER, RDO W/S SI G/MLDG (PART OF 1) (TWEETER) CK1, 2, 3 (UQ7) 2003-2007 02
003 HARNESS, FRT S/D DR WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ FRONT DOOR ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
004 15236987 SPEAKER, RDO FRT S/D (ACDelco #15236987) CK1, 2, 3 (UQ7) 2003-2007 02
004 19116641 SPEAKER, RDO FRT S/D (ACDelco #19116641) CK1, 2, 3 (UQ3) 2003-2007 02
004 19116641 SPEAKER, RDO FRT S/D (ACDelco #19116641) CK1, 2, 3 (UQ5, 5B5) 2003-2007 02
004 19116642 SPEAKER, RDO FRT S/D (ACDelco #19116642) CK1, 2, 3 (UQ5) (EXC 5B5) 2003-2007 02
005 KNOB, RDO VOL CONT (PART OF 8) 2003-2006
006 KNOB, NAVIGATION INFO DIPLAY PNT (PART OF 8) 2005-2007
007 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
008 RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 6) 2003-2007
008 15800001 RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 6) (ACDelco #15800001) CK1 (UM8, Y91) (EXC UL8) 2005-2006 01
008 15806582 RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 6) (ACDelco #15806582) K1 (UL8, UM8, Y91) (EXPORT) 2005-2006 01
009 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) 2003-2007 03
010 25536302 ГАЙКА, F/FLR CNSL EXTN (PART OF 13) (4.2 X 1.41) (TAPPING NUT) (3.430) CK1 (D07, U1S, Y91) 2003-2006 20
012 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (PART OF 13) (9.665) 2003-2007 02
013 COMPARTMENT, F/FLR (INCLS 10-12, 16-20) (СМ. ГРУППУ 16.000 FLOOR КОНСОЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
014 15204326 SPEAKER, RDO FRT S/D CTR (PART OF 15) (TWEETER) (ACDelco #15204326) CK1, 2, 3 (UQ3) 2003-2007 02
015 PANEL, FRT S/D TR (СМ. ГРУППУ 16.000 ОТДЕЛКА ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 14) (NEUTRAL) 2003-2007
016 HARNESS, F/FLR CNSL WRG (СМ. ГРУППУ 16.000 КОНСОЛЬ/ПОЛ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PART OF 13) 2003-2007
017 88987315 SPEAKER, RDO F/FLR CNSL (PART OF 13) (SUBWOOFER) (ACDelco #88987315) CK1, 2, 3 (D07) 2003-2006 01
018 22549046 SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (PART OF 13) 2003-2007 01
019 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PART OF 13) 2003-2007 08
020 15114454 УСИЛИТЕЛЬ, RDO SPKR (PART OF 13) (REQUIRES DEALER REPROGRAMMING) (ACDelco #15114454) CK1 (D07, U1S, Y91) 2003-2006 01
021 15131157 RADIO, AM/FM STEREO CLK (INCLS 22, 23) (CODE WADJ, DURY) (ACDelco #15131157) CK1, 2, 3 (UM7) 2003-2007 01
022 09353864 KNOB, RDO VOL CONT (PART OF 21, 40) (ACDelco #9353864) CK1, 2, 3 (UM7, 9R0) 2003-2007 01
023 09353864 KNOB, RDO TUNING CONT (PART OF 21, 40) (ACDelco #9353864) CK1, 2, 3 (UM7, 9R0) 2003-2007 01
024 09354886 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UB1) (EXC UL2, UL4, UL8) 2003-2006 01
024 09354886 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UB0) 2003-2007 01
024 09354886 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UB1, UL8) (EXPORT) 2003-2007 01
024 09354886 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UC6) 2004-2007 01
024 09354886 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UC6) (EXC UL2, UL4, UL8) 2005-2006 01
024 09354886 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UC6, UL8) 2005-2006 01
024 09371602 KNOB, RDO TONE CONT (PART OF 29, 30) (AUDIO) (ACDelco #9371602) CK1, 2, 3 (UB1, UC6, UL2, UL4) (EXPORT) 2006-2006 01
025 12201776 KNOB, RDO VOL CONT (PART OF 29, 30, 31) (RING) CK1, 2, 3 (UB1, UC6, UL2, UL4) (EXPORT) 2006-2006 01
025 12201805 KNOB, RDO VOL CONT (PART OF 29, 30, 31) (RING) CK1, 2, 3 (UB1) (EXC UL2, UL4) 2003-2006 01
025 12201805 KNOB, RDO VOL CONT (PART OF 29, 30, 31) (RING) CK1, 2, 3 (UC6) (EXC UL2, UL4) 2003-2006 01
025 12201805 KNOB, RDO VOL CONT (PART OF 29, 30, 31) (RING) CK1, 2, 3 (UB0) 2005-2007 01
026 12201775 KNOB, RDO TUNING CONT (PART OF 29, 30, 31) (RING) (ACDelco #12201775) CK1, 2, 3 (UB1, UC6, UL2, UL4) (EXPORT) 2006-2006 01
026 12201802 KNOB, RDO TUNING CONT (PART OF 29, 30, 31) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) CK1, 2, 3 (UB1) (EXC UL2, UL4) 2003-2006 01
026 12201802 KNOB, RDO TUNING CONT (PART OF 29, 30, 31) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) CK1, 2, 3 (UC6) (EXC UL2, UL4) 2003-2006 01
026 12201802 KNOB, RDO TUNING CONT (PART OF 29, 30, 31) (RING SOFT TOUCH AS MOLDED) (ACDelco #12201802) CK1, 2, 3 (UB0) 2003-2007 01
027 12215316 PUSHBUTTON, RDO PWR (PART OF 29, 30) (9.652) CK1, 2, 3 (UB1, UL2, UL4) (EXPORT) 2003-2006 01
027 12215316 PUSHBUTTON, RDO PWR (PART OF 29, 30) CK1, 2, 3 (UB1, UL2, UL4) (EXPORT) 2003-2006 01
027 12215318 PUSHBUTTON, RDO PWR (PART OF 29, 30) (9.652) CK1, 2, 3 (UB1) (EXC UL2, UL4) 2003-2006 01
027 12215318 PUSHBUTTON, RDO PWR (PART OF 29, 30) (9.652) CK1, 2, 3 (UB0) 2003-2007 01
027 12215318 PUSHBUTTON, RDO PWR (PART OF 29, 30) CK1, 2, 3 (UB1) (EXC UL2, UL4) 2003-2006 01
027 12215318 PUSHBUTTON, RDO PWR (PART OF 29, 30) CK1, 2, 3 (UB0) 2003-2007 01
028 12215317 PUSHBUTTON, RDO DISPLAY (PART OF 29, 30) (ACDelco #12215317) CK1, 2, 3 (UB1, UL2, UL4) (EXPORT) 2003-2006 01
028 19116096 PUSHBUTTON, RDO DISPLAY (PART OF 29, 30) (ACDelco #19116096) CK1, 2, 3 (UB1) (EXC UL2, UL4) 2005-2006 01
028 19116096 PUSHBUTTON, RDO DISPLAY (PART OF 29, 30) (ACDelco #19116096) CK1, 2, 3 (UB0) 2005-2007 01
029 15849619 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (INCLS 24-28) (ACDelco #15849619) (REQUIRES DEALER REPROGRAMMING.) CK1, 2, 3 (UB1) (EXC UL2, UL4, UL8) 2005-2006 01
029 15849619 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (INCLS 24-28) (ACDelco #15849619) (REQUIRES DEALER REPROGRAMMING.) CK1, 2, 3 (UB1, UL8) 2005-2007 01
029 15850560 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (LABELED 15850560) (INCLS 24-28) (ACDelco #15850560) CK1, 2, 3 (UB1, UL2, UL4) (EXPORT) 2006-2006 01
030 15850275 RADIO, AM/FM STEREO CLK CD PLYR (LABELED 15850275) (INCLS 24-28) (ACDelco #15850275) CK1, 2, 3 (UB0) 2006-2006 01
030 15850275 RADIO, AM/FM STEREO CLK CD PLYR (LABELED 15850275) (INCLS 24-28) (ACDelco #15850275) (REQUIRES DEALER REPROGRAMMING.) CK1, 2, 3 (UB0) 2006-2007 01
031 15927261 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (INCLS 25, 26, 32-34) (LABELED 15927261) (ACDelco #15927261) CK1, 2, 3 (UC6) (EXC UL2, UL4, UL8) 2006-2006 01
031 15927261 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (INCLS 25, 26, 32-34) (LABELED 15927261) (ACDelco #15927261) CK1, 2, 3 (UC6, UL8) 2006-2007 01
032 09354886 KNOB, RDO TONE CONT (PART OF 31) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UB0) 2003-2007 01
032 09354886 KNOB, RDO TONE CONT (PART OF 31) (AUDIO) (ACDelco #9354886) CK1, 2, 3 (UC6) 2004-2007 01
033 12210421 PUSHBUTTON, RDO PWR (PART OF 31) (9.652) CK1, 2, 3 (UC6) (EXC UL2, UL4) 2003-2006 01
033 12210421 PUSHBUTTON, RDO PWR (PART OF 31) CK1, 2, 3 (UC6) (EXC UL2, UL4) 2003-2006 01
033 12210426 PUSHBUTTON, RDO PWR (PART OF 31) CK1, 2, 3 (UC6, UL2, UL4) (EXPORT) 2006-2006 01
033 12215318 PUSHBUTTON, RDO PWR (PART OF 31) (9.652) CK1, 2, 3 (UB0) 2003-2007 01
033 12215318 PUSHBUTTON, RDO PWR (PART OF 31) CK1, 2, 3 (UB0) 2003-2007 01
034 19116104 PUSHBUTTON, RDO RECALL (PART OF 31) CK1, 2, 3 (UC6, UL2, UL4) 2006-2006 01
035 17988488 ГАЙКА, I/P CARR (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) CK1, 2, 3 2003-2007 AR
036 11502553 ГАЙКА, STAMPED, M6.3 STUD, SELF THD, STL, PC (RDO FRT S/D SPKR) 2003-2007 02
037 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P UPR BRKT) (9.665) 2003-2007 01
038 MODULE, RDO ANT 2003-2007
038 15135178 MODULE, RDO ANT (INCLS CABLE AND GPS АНТЕННА) (ACDelco #15135178) CK1, 2 (UM8) 2005-2006 01
039 DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) 2003-2006
040 15131158 RADIO, AM/FM STEREO CLK T/PLYR (INCLS 22, 23) (CODE DCSP, DUSC, WADK) (ACDelco #15131158) CK1, 2, 3 (9R0) 2005-2007 01
