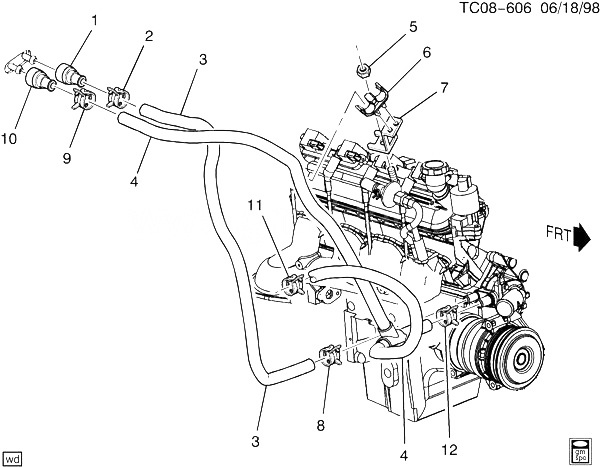

(TC08-606) - 2005-2007 CK1,2,3 ШЛАНГИ И ТРУБКИ /ОБОГРЕВАТЕЛЬ (LR4/4.8V,L33/5.3B,LM7/5.3T,L59/5.3Z,LQ4/6.0U,LQ9/6.0N,EXC HYBRID HP2) CADILLAC - ESCALADE EXT (AWD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CONNECTOR, HTR INL HOSE (PART OF 3) 2004-2006
002 11517133 CLAMP, ПРУЖИНА, 22-26MM, 24 NOM., BLK (PART OF 3) 2002-2007 01
003 15763368 HOSE, HTR INL (INCLS 1, 2) (853X137X45MM) (CODE 3368, WMF) CK1 (36-43-53) (LQ9) 2005-2006 01
004 15792821 HOSE, RAD SURGE TK OTLT (INCLS 10) (INCLS TEE) CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L59) (EXC C36, HP2) 2005-2006 01
005 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT) 2002-2007 01
006 15050765 CLIP, HTR HOSE (73.0MM WIDE) CK1, 2, 3 2002-2007 01
007 15050764 BRACKET, HTR HOSE CLIP CK1, 2, 3 2002-2007 01
008 11517133 CLAMP, ПРУЖИНА, 22-26MM, 24 NOM., BLK (HTR INL HOSE) 2002-2007 01
009 11562101 CLAMP, RAD SURGE TK OTLT HOSE (CLAMP, ПРУЖИНА BAND, 35MM NOM) (8.948) CK1, 2, 3 2005-2007 AR
010 15059583 CONNECTOR, HTR OTLT HOSE (PART OF 4) (74.93MM LONG) (QUICK CONNECT ASM) CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L59) (EXC C36, HP2) 2005-2006 01
011 11562101 CLAMP, ПРУЖИНА BAND, 35MM NOM (RAD SURGE TK OTLT HOSE) 2005-2007 AR
012 11517133 CLAMP, ПРУЖИНА, 22-26MM, 24 NOM., BLK (HTR INL HOSE) 2002-2007 01
