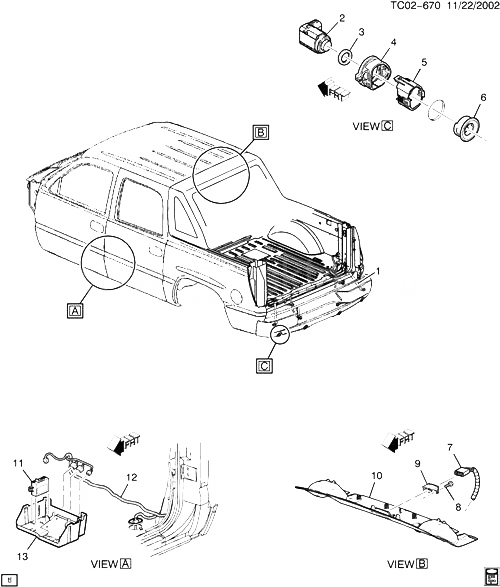

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15092637 |
HARNESS, RR LIC PLT LP WRG (RR OBJECT SEN HARN) |
K159 (36) (VT5, Y91, Z75) |
2003-2006 |
01 |
| 002 |
88891836 |
SENSOR KIT, RR OBJECT (INCLS 3-6) (CONSIST OF RETAINERS, ШЛАНГИ, RING SENSOR) (PAINT TO MATCH) (7.831)
| K1 (06-36) (Z75) |
2002-2006 |
04 |
|
| 002 |
88891836 |
SENSOR KIT, RR OBJECT (INCLS 3-6) (CONSIST OF RETAINERS, ШЛАНГИ, RING SENSOR) (PAINT TO MATCH)
| K1 (06-36) (Z75) |
2002-2006 |
04 |
|
| 003 |
|
RING, RR OBJECT SEN (PART OF 2) |
|
2002-2006 |
|
| 004 |
|
RETAINER, RR OBJECT SEN (DECOUPLING) (PART OF 2) |
|
2002-2006 |
|
| 005 |
|
ШЛАНГИ, RR OBJECT SEN (PART OF 2) |
|
2002-2006 |
|
| 006 |
|
RETAINER, RR OBJECT SEN (PART OF 2) |
|
2002-2006 |
|
| 007 |
15095234 |
HARNESS, BODY WRG HARN EXTN |
K159 (36) (UD7) |
2002-2006 |
01 |
| 008 |
11508256 |
БОЛТ, HFH, SELF-TAP, M4.2X1.4X13, 11.6THD, 8.5 O.D., GM6010M, POR (PART OF 10) (ACDelco #11508256) |
|
2002-2006 |
02 |
| 009 |
15766504 |
TELLTALE, INFO CTR (PART OF 10) (ACDelco #15766504) |
K159 (36) (JL4, UD7, Y91, Z55, Z75) |
2002-2006 |
01 |
| 010 |
|
MOLDING, HDLNG T/PNL (СМ. ГРУППУ 16.000 ОТДЕЛКА/BODY SIDE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 8, 9) (NEUTRAL) |
|
2002-2006 |
|
| 011 |
15187264 |
MODULE, RR OBJECT ALARM |
K1 (06-36) |
2002-2006 |
01 |
| 012 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2002-2006 |
|
| 013 |
93440954 |
BRACKET, ELEK SUSP CONT MDL RR OBJECT ALARM CNTNR CVR (SHALE) |
K1 (36) (UD7, Y91, Z55, Z75, 15I) |
2002-2006 |
01 |
| 013 |
93440955 |
BRACKET, ELEK SUSP CONT MDL RR OBJECT ALARM CNTNR CVR (PEWTER) |
K1 (36) (UD7, Y91, Z55, Z75, 92I) |
2002-2006 |
01 |
