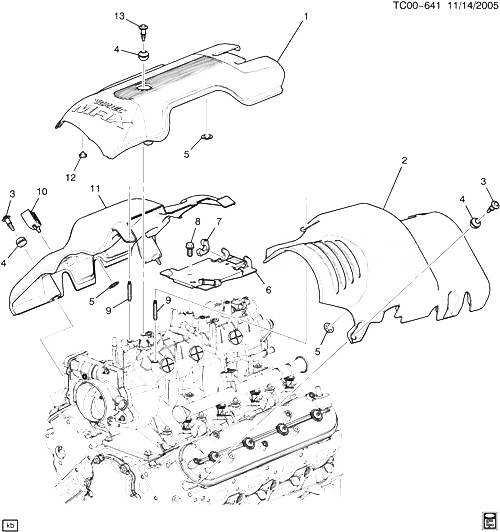

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12598332 |
COVER, UPR INT MANIF (CENTER) (INCLS 4, 5, 12, 13) (INCLS NUT, GROMMET, INSULATION, BOLT) |
CK1 (LQ9) |
2006-2007 |
01 |
| 002 |
12597908 |
COVER, INT MANIF (INCLS 3-5) |
CK1 (LQ9) |
2006-2007 |
01 |
| 003 |
12561667 |
БОЛТ, F/INJN FUEL RL CVR (PART OF 2, 11) (3.265) |
CK1 (LQ9) |
2006-2006 |
04 |
| 004 |
12559065 |
GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1, 2, 11) (12.0 DIA X 2.4 DEEP) |
CK1 (LQ9) |
2006-2007 |
01 |
| 005 |
10042521 |
ГАЙКА, UPR INT MANIF CVR (PART OF 1, 2, 11) (7.831) |
CK1 (LQ9) |
2006-2007 |
02 |
| 006 |
12561510 |
RETAINER, UPR INT MANIF SIGHT SHLD (INCLS 7) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2006-2007 |
01 |
| 007 |
19167509 |
INSULATOR, INT MANIF INSL BRKT SPCR (PART OF 6) (3.405) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2006-2007 |
02 |
| 008 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (UPR INT MANIF SIGHT SHLD) |
|
2006-2007 |
03 |
| 009 |
|
LOCATOR, F/INJN FUEL RL CVR (СМ. ГРУППУ 03.000 INTAKE MANIFOLD ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2006-2007 |
|
| 010 |
12559065 |
INSULATOR, F/INJN FUEL RL (PART OF 11) (12.0 DIA X 2.4 DEEP) (3.265) |
CK1 (LQ9, Y91) |
2006-2006 |
02 |
| 011 |
12574573 |
COVER, INT MANIF (INCLS 3-5, 10) |
CK1 (LQ9) |
2006-2007 |
01 |
| 012 |
|
INSULATOR, UPR INT MANIF CVR (PART OF 1) |
|
2006-2007 |
|
| 013 |
12561667 |
БОЛТ, UPR INT MANIF SIGHT SHLD (PART OF 1) |
CK1 (LQ9) |
2006-2007 |
01 |
