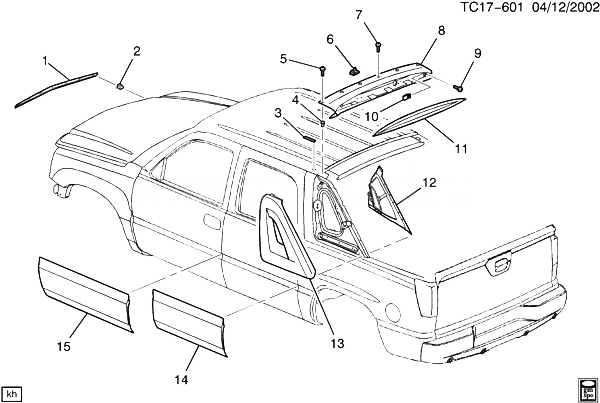

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15136011 |
MOLDING, КАПОТ FRT (INCLS 2) |
K1 (06-36) (Y91, Z75) |
2002-2006 |
01 |
| 002 |
11609549 |
CLIP, TRIM, 13X12X14.4, 0.63 ПРУЖИНА STL, GM6173 BLACKI (PART OF 1) |
|
2002-2006 |
07 |
| 003 |
15056799 |
MOLDING, RF PNL JT FIN |
K1 (36) |
2005-2005 |
02 |
| 004 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| K1, 2 (36) (B41) |
2004-2006 |
06 |
|
| 004 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| K1, 2 (36) (B41) |
2004-2006 |
06 |
|
| 005 |
11518705 |
SCREW, PAN TORX HD, W/WA SEAL, M6X1X27, 21 THD, 12.5O.D., 9.8, 6138M (CARGO BOX BRIDGE C/BAR) |
|
2002-2006 |
02 |
| 006 |
11518357 |
RETAINER, RECTANGULAR W/PRONGS, 20X21.25X20.2, FITS 9MM HOLE, PLAS, NAT (PART OF 8)
|
2002-2006 |
06 |
|
| 007 |
11518329 |
SCR, TORX PAN HD, W/WA, M6X1X25, 18 THD, 15 OD, 9.8, 6138M, TORX (CARGO BOX BRIDGE C/BAR) |
|
2002-2006 |
04 |
| 008 |
88980817 |
BAR, CARGO BOX BRIDGE CR (INCLS 6, 9, 10) (W/O LAMP) (PAINT TO MATCH) (17.090) |
K1 (36) (Y91, Z75) |
2002-2006 |
01 |
| 008 |
88980817 |
BAR, CARGO BOX BRIDGE CR (INCLS 6, 9, 10) (W/O LAMP) (PAINT TO MATCH) |
K1 (36) (Y91, Z75) |
2002-2006 |
01 |
| 009 |
11516630 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 8) |
|
2002-2006 |
02 |
| 010 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 8)
|
2002-2006 |
02 |
|
| 011 |
15098920 |
LAMP, HIGH MT STOP |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 012 |
88944310 |
PANEL, CARGO BOX BRIDGE SI INR (PAINT TO MATCH) (17.090) |
K159 (36) (Z75) |
2002-2006 |
01 |
| 012 |
88944310 |
PANEL, CARGO BOX BRIDGE SI INR (PAINT TO MATCH) |
K159 (36) (Z75) |
2002-2006 |
01 |
| 012 |
88944311 |
PANEL, CARGO BOX BRIDGE SI INR (PAINT TO MATCH) (17.090) (USE RETAINER 11518357.) |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 012 |
88944311 |
PANEL, CARGO BOX BRIDGE SI INR (PAINT TO MATCH) (USE RETAINER 11518357.) |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 013 |
25786465 |
PANEL, CARGO BOX BRIDGE SI OTR (PAINT TO MATCH) (17.090) |
K159 (36) (Z75) |
2002-2006 |
01 |
| 013 |
25786465 |
PANEL, CARGO BOX BRIDGE SI OTR (PAINT TO MATCH) |
K159 (36) (Z75) |
2002-2006 |
01 |
| 013 |
25786466 |
PANEL, CARGO BOX BRIDGE SI OTR (PAINT TO MATCH) (17.090) |
K159 (36) (Z75) |
2002-2006 |
01 |
| 013 |
25786466 |
PANEL, CARGO BOX BRIDGE SI OTR (PAINT TO MATCH) |
K159 (36) (Z75) |
2002-2006 |
01 |
| 014 |
88944318 |
MOLDING, RR S/D (PAINT TO MATCH) |
K159 (06-36) (BW2, Y91, Z75) |
2003-2006 |
01 |
| 014 |
88944319 |
MOLDING, RR S/D (PAINT TO MATCH) |
K159 (06-36) (BW2, Y91, Z75) |
2003-2006 |
01 |
| 015 |
88935290 |
MOLDING, FRT S/D (PRIME) (PAINT TO MATCH) (FRT ANGLE CUT/RR STRAIGHT CUT) |
K1 (06-36) (BW2, Y91, Z75) |
2002-2006 |
01 |
| 015 |
88935291 |
MOLDING, FRT S/D (PRIME) (PAINT TO MATCH) (FRT ANGLE CUT/RR STRAIGHT CUT) |
K1 (06-36) (BW2, Y91, Z75) |
2002-2006 |
01 |
