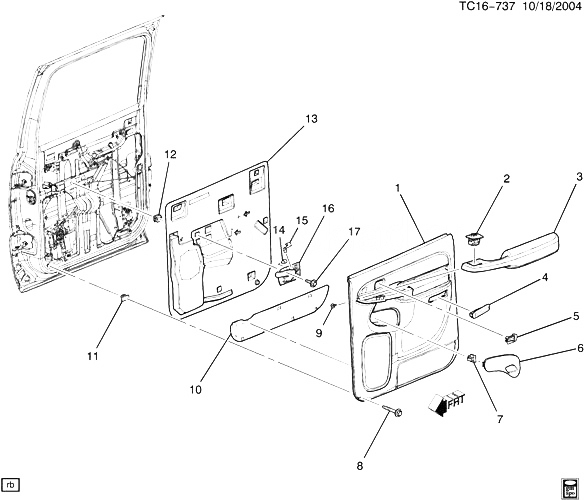

(TC16-737) - 2004-2006 K159(06-36) ОТДЕЛКА ДВЕРИ/SIDE REAR (CADILLAC Z75) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10374495 PANEL, RR S/D TR (INCLS 3, 4, 9) (SHALE) K159 (06-36) (YE9, Y91, Z75, 152) (EXC ULT) 2005-2005 01
001 10374496 PANEL, RR S/D TR (INCLS 3, 4, 9) (PEWTER) K159 (06-36) (YE9, Y91, Z75, 922) 2005-2005 01
001 10374498 PANEL, RR S/D TR (INCLS 3, 4, 9) (SHALE) K159 (06-36) (YE9, Y91, Z75, 152) (EXC ULT) 2005-2005 01
001 10374499 PANEL, RR S/D TR (INCLS 3, 4, 9) (PEWTER) K159 (06-36) (YE9, Y91, Z75, 922) 2005-2005 01
002 15206532 SWITCH, RR S/D WDO (EBONY) (INCLS BEZEL) K1, 2 (06-36) (5B5) 2003-2005 01
002 15206532 SWITCH, RR S/D WDO (EBONY) (INCLS BEZEL) K1, 2, 3 (A31) (EXC ULT) 2004-2006 01
002 15206533 SWITCH, RR S/D WDO (EBONY) (INCLS BEZEL) K1, 2 (06-36) (5B5) 2004-2005 01
002 15206533 SWITCH, RR S/D WDO (EBONY) (INCLS BEZEL) K1, 2, 3 (A31) (EXC ULT) 2004-2006 01
003 15062475 ARMREST, RR S/D (PART OF 1) (SHALE) K159 (06-36) (YE9, Y91, Z75, 152) (EXC ULT) 2004-2006 01
003 15062476 ARMREST, RR S/D (PART OF 1) (SHALE) K159 (06-36) (YE9, Y91, Z75, 152) (EXC ULT) 2004-2006 01
004 15183155 REFLECTOR, RR S/D WRNG (PART OF 1) (SQUARE CORNERS) K1 (36) 2004-2006 01
004 15183156 REFLECTOR, RR S/D WRNG (PART OF 1) (SQUARE CORNERS) K1 (36) 2004-2006 01
005 15172121 LEVER, RR S/D LK K1, 2, 3 2003-2006 02
006 15763017 BEZEL, RR S/D I/S HDL (INCLS 7) (PEWTER) K1 (36) (92I) 2004-2005 01
006 15763018 BEZEL, RR S/D I/S HDL (INCLS 7) (PEWTER) K1 (36) (92I) 2004-2005 01
006 15763019 BEZEL, RR S/D I/S HDL (INCLS 7) (NEUTRAL) K1 (36) (52I) 2004-2005 01
006 15763020 BEZEL, RR S/D I/S HDL (INCLS 7) (NEUTRAL) K1 (36) (52I) 2004-2005 01
006 15767115 BEZEL, RR S/D I/S HDL (INCLS 7) (SHALE) K1 (06-36) (15I) 2003-2006 01
006 15767116 BEZEL, RR S/D I/S HDL (INCLS 7) (SHALE) K1 (06-36) (15I) 2003-2006 01
007 15594543 CLIP, RR S/D I/S HDL (PART OF 6) (12.7 X 10.4) (9.665) K1, 2, 3 2003-2006 04
008 11589014 БОЛТ, HWH W/FL WA 12.5 OD, M4.2X1.41X35, 27.3 THD, ISO2702 STL, GMW4205, T (RR S/D T/PNL) 2003-2006 04
009 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 1) 2003-2006 08
010 21996164 DEFLECTOR, AUX RR S/D WAT K159 (36) 2004-2006 02
011 11519497 ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (RR S/D T/PNL) 2003-2006 04
012 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (RR S/D I/S HDL) 2003-2006 02
013 15249527 DEFLECTOR, RR S/D WAT (16.150) K159 (06-36) (5B5) 2004-2006 01
013 15249527 DEFLECTOR, RR S/D WAT (16.150) K159 (06-36) (A31) 2004-2006 01
013 15249528 DEFLECTOR, RR S/D WAT (16.150) K159 (06-36) (5B5) 2004-2006 01
013 15249528 DEFLECTOR, RR S/D WAT (16.150) K159 (06-36) (A31) 2004-2006 01
014 88937023 CLIP, RR S/D I/S HDL ROD (PART OF 16) K1 (06-36) (Y91, Z75) 2003-2006 01
014 88937024 CLIP, RR S/D I/S HDL ROD (PART OF 16) K1 (06-36) (Y91, Z75) 2003-2006 01
015 88937025 BUMPER, RR S/D I/S HDL (PART OF 16) (16.400) K1 (06-36) (Y91, Z75) 2003-2006 02
016 10358997 HANDLE, RR S/D I/S (INCLS 14, 15) (BRIGHT CHROME) (WHEN REPLACING DULL SILVER HANDLE W/BRIGHT CHROME, REPLACE OPPOSING SIDE TO MATCH) K1 (06-36) (Y91, Z75) 2005-2006 01
016 10358998 HANDLE, RR S/D I/S (INCLS 14, 15) (BRIGHT CHROME) (WHEN REPLACING DULL SILVER HANDLE W/BRIGHT CHROME, REPLACE OPPOSING SIDE TO MATCH) K1 (06-36) (Y91, Z75) 2003-2006 01
017 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RR S/D I/S HDL) 2003-2006 02
