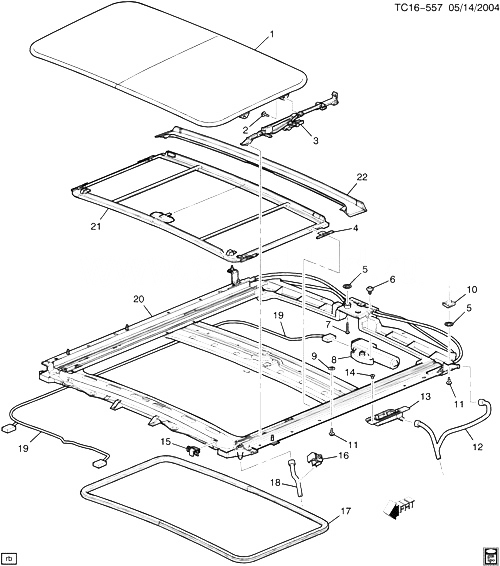

(TC16-557) - 2005 CK1,2(06-36) SUNROOF (CF5)(1ST DES) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15008766 WINDOW, SUN RF (INCLS SEAL) CK1, 2 (36) (CF5) 2002-2005 01
002 11518826 SCREW, PAN W/WASH 6-LOBED, M5X0.8X16, 13.5 THD, 9.8 (PART OF 20) 2000-2005 04
003 88979948 GUIDE KIT, SUN RF PNL/WDO (PART OF 20) (INCLS LH RH GUIDES) CK1, 2 (36) (CF5) 2002-2005 01
004 88979947 GUIDE, SUN RF S/S (PART OF 20) CK1, 2 (36) (CF5) 2002-2005 02
005 10159218 RETAINER, SUN RF PNL/WDO W/STR (PART OF 20) (5 1/8 X 19 X 1/4) (8.141) CK1 (06-36) (CF5) 2005-2005 01
005 10159218 RETAINER, SUN RF PNL/WDO W/STR (PART OF 20) (5 1/8 X 19 X 1/4) (8.141) K259 (36) (CF5) 2005-2005 01
006 11516578 БОЛТ, HEX W/FL WA, M6X1X25, 16 THD, 24 OD, 9.8, 7114M, MACH, 6MM P PT. 2000-2005 02
007 11516945 SCREW ASM-BOLT HEX W/FL WA, M6X1X40, 29 THD, 24 OD, 9.8, 7114M (PART OF 20) 2000-2005 01
008 15224754 MOTOR, SUN RF ACTR (PART OF 20) CK159, 259 (06-36) (CF5) (EXC U42) 2005-2005 01
008 15224754 MOTOR, SUN RF ACTR (PART OF 20) CK159, 259 (06-36) (CF5, U42) (EXC ULT) 2005-2005 01
009 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (PART OF 20) 2000-2005 06
010 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 20) 2000-2005 03
011 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (PART OF 20) 2000-2005 06
012 15754106 HOSE, SUN RF HSG RR DRN (INCLUDES GROMMET) CK1, 2 (36) (CF5) 2002-2005 01
012 15754107 HOSE, SUN RF HSG RR DRN (INCLUDES GROMMET) CK1, 2 (36) (CF5) 2002-2005 01
013 BRACKET, SUN RF HSG RR DRN HOSE (PART OF 20) 2005-2005
014 RIVET, SUN RF HSG RR DRN HOSE BRKT (PART OF 20) 2005-2005
015 88979958 ПРУЖИНА, SUN RF A/DFL (PART OF 20) (HAS ONE TAB ON THE FRT SIDE) CK159 (36) (CF5) 2004-2005 02
015 88979958 ПРУЖИНА, SUN RF A/DFL (PART OF 20) (HAS ONE TAB ON THE FRT SIDE) K259 (36) (CF5) 2004-2005 02
015 88980678 ПРУЖИНА, SUN RF A/DFL (PART OF 20) (HAS TWO TABS, ONE ON EACH SIDE) CK159 (36) (CF5) 2004-2005 02
015 88980678 ПРУЖИНА, SUN RF A/DFL (PART OF 20) (HAS TWO TABS, ONE ON EACH SIDE) K259 (36) (CF5) 2004-2005 02
016 CLIP, SUN RF HSG FRT DRN HOSE (PART OF 18) 2005-2005
017 15011985 MOLDING, SUN RF PNL/WDO GARN (PEWTER) K159 (CF5, Y91, Z75, 92I) 2003-2005 01
017 15044263 MOLDING, SUN RF PNL/WDO GARN (SHALE) K259 (36) (CF5, U42, Z75, 15I) (EXC ULT) 2004-2005 01
017 15044263 MOLDING, SUN RF PNL/WDO GARN (SHALE) CK159 (36) (CF5, U42, Z75, 15I) (EXC ULT) 2005-2005 01
017 15044263 MOLDING, SUN RF PNL/WDO GARN (SHALE) CK159 (36) (CF5, Z75, 15I) (EXC U42) 2005-2005 01
018 15055866 HOSE, SUN RF HSG FRT DRN (INCLS 16) CK1, 2 (36) (CF5) 2002-2005 01
018 15055867 HOSE, SUN RF HSG FRT DRN (INCLS 16) CK1, 2 (36) (CF5) 2002-2005 01
019 10363500 HARNESS, SUN RF WRG (SUN ROOF CONT TO RH I/P BEC) CK1, 2 (06-36) (CF5) (EXC UE1, U01) 2005-2005 01
019 10366465 HARNESS, SUN RF WRG (SUN ROOF CONT TO RH I/P BEC) CK1, 2 (06-36) (CF5, UE1) (EXC U01) 2005-2005 01
019 15059587 HARNESS, SUN RF WRG (CONNECTS TO SUN RF SW ACTR MOTOR) CK1, 2 (36) (CF5) 2002-2005 01
020 19120489 MODULE, SUN RF (VEHICLES BUILT PRIOR TO 2005 AND 2005 VIN BREAK NEED TO ALSO ORDER СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК WITH TABS) (2-5, 7-11, 13-15, 22) (INCLS DEFLECTOR) (LESS GLASS, СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, MOLDING) CK1, 2 (36) (CF5) (EXC U42) 2003-2005 01
020 19120491 MODULE, SUN RF (2-5, 7-11, 13-15, 22) (INCLS DEFLECTOR) (LESS GLASS, СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, MOLDING) CK1, 2 (36) (CF5, U42) 2005-2005 01
021 15061664 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, SUN RF (PEWTER) (USES CLIPS TO RETAIN СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК IN RAIL) (FOR 2ND DES SEE 15249494) K159 (36) (CF5, Z75, 92I) (1ST DES) 2005-2005 01
021 15061665 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, SUN RF (SHALE) (USES CLIPS TO RETAIN СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК IN RAIL) (FOR 2ND DES SEE 15249495) CK1, 2 (36) (CF5, 15I, 52I) (1ST DES) 2005-2005 01
021 15061665 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, SUN RF (SHALE) (USES CLIPS TO RETAIN СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК IN RAIL) (FOR 2ND DES SEE 15249495) CK1, 2 (36) (CF5, 69I) (1ST DES) 2005-2005 01
022 88944296 GUTTER, SUN RF HSG DRN (PART OF 20) (16.585) CK1 (36) (CF5) 2004-2005 01
