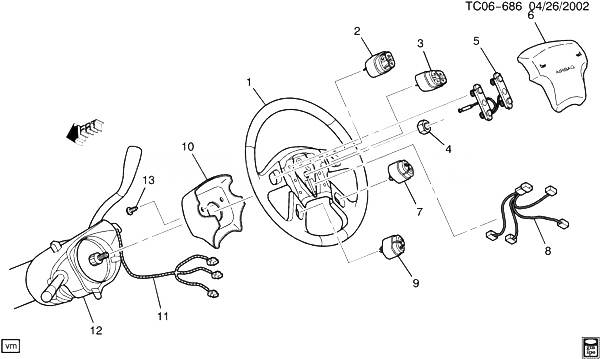

(TC06-686) - 2003-2007 CK РУЛЕВОЕ КОЛЕСО ДЕТАЛИ СИГНАЛА (UK3) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10364488 WHEEL, STRG (INCLS 2, 3, 5, 7-10, 13) (EBONY) CK1, 2, 3 (NP5, UK3) (EXC Y91) 2005-2007 01
001 10364743 WHEEL, STRG (INCLS 2, 3, 5, 7-10, 13) (PEWTER) (W/O WOODGRAIN) CK1, 2, 3 (NP5, UK3, Y91, 92I) 2005-2007 01
001 10364744 WHEEL, STRG (INCLS 2, 3, 5, 7-10, 13) (NEUTRAL) CK1, 2, 3 (NP5, UK3, Y91, 52I) 2005-2006 01
001 21997720 WHEEL, STRG (INCLS 2, 3, 5, 7-10, 13) (PEWTER) (WOODGRAIN) CK1 (N30, UK3, 92I) 2005-2006 01
001 21997721 WHEEL, STRG (INCLS 2, 3, 5, 7-10, 13) (NEUTRAL) (WOODGRAIN) CK1 (N30, UK3, 15I) 2005-2006 01
001 25998481 WHEEL, STRG (INCLS 2, 3, 5, 7-10, 13) (EBONY) CK1, 2, 3 (EXC NP5, N30, N53) 2003-2006 01
002 01999442 SWITCH, RDO CONT (PART OF 1) (PROGRAM SOURCE) (INCLS BULB) (9.649) CK1, 2, 3 (UK3) 2003-2007 01
002 01999442 SWITCH, RDO CONT (PART OF 1) (PROGRAM SOURCE) (INCLS BULB) (9.649) K1 (N53) 2004-2006 01
002 01999442 SWITCH, RDO CONT (PART OF 1) (PROGRAM SOURCE) (INCLS BULB) CK1, 2, 3 (UK3) 2003-2007 01
002 01999442 SWITCH, RDO CONT (PART OF 1) (PROGRAM SOURCE) (INCLS BULB) K1 (N53) 2004-2006 01
003 01999443 SWITCH, RDO CONT (PART OF 1) (SEEK VOLUME) (INCLS BULB) (9.649) CK1, 2, 3 (UK3) 2003-2006 01
003 01999443 SWITCH, RDO CONT (PART OF 1) (SEEK VOLUME) (INCLS BULB) CK1, 2, 3 (UK3) 2003-2006 01
004 11609659 ГАЙКА, STRG WHL (M14X1.5, 10THK, 27OD) (FLANGED) (8.917) CK1, 2, 3 2005-2007 01
005 16821883 CONTACT, STRG WHL СИГНАЛ (PART OF 1) CK1, 2, 3 2003-2007 01
006 15118221 MODULE, STRG WHL INFL RST (SHALE) (CODE 8221, 6924) (16.712) CK1 (06-36) (Y91, Z75, 15I) (EXC ULT, WSD) 2005-2006 01
006 15118222 MODULE, STRG WHL INFL RST (PEWTER) (CODE 8222, 6925) (16.712) CK1 (06-36) (Y91, Z75, 92I) (EXC WSD) 2005-2006 01
007 21997739 SWITCH, DRVR INFO DISPLAY (PART OF 1) (SELECT PERSONALIZATION) CK1, 2, 3 2003-2007 01
008 16824549 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) CK1 (N30, UK3) 2003-2006 01
008 16824549 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) CK1, 2, 3 (NP5, UK3) 2003-2007 01
008 16824549 HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) K1 (N53) 2004-2006 01
009 21997738 SWITCH, DRVR INFO DISPLAY M/FUNC (PART OF 1) (TRIP/FUEL) (INCLS BULBS) CK1, 2, 3 2003-2007 01
010 16824540 SHROUD, STRG WHL (PART OF 1) (EBONY) CK1, 2 (06-36) (NK5) 2003-2006 01
010 16824540 SHROUD, STRG WHL (PART OF 1) (EBONY) CK1, 2, 3 (NP5, UK3) (EXC Y91) 2003-2007 01
010 16824540 SHROUD, STRG WHL (PART OF 1) (EBONY) CK1, 2 (06-36) (EXC NK5, NP5, N30, N53) 2004-2006 01
010 16868713 SHROUD, STRG WHL (PART OF 1) (PEWTER) CK1, 2, 3 (NP5, UK3, Y91, 92I) 2003-2007 01
010 16868714 SHROUD, STRG WHL (PART OF 1) (NEUTRAL) CK1, 2, 3 (NP5, UK3, Y91, 52I) 2003-2007 01
010 16868715 SHROUD, STRG WHL (PART OF 1) (PEWTER) CK1 (N30, UK3, 92I) 2003-2006 01
010 16868716 SHROUD, STRG WHL (PART OF 1) (NEUTRAL) CK1 (N30, UK3, 15I) 2003-2006 01
011 26101828 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (W/EXTRA PIGTAIL, CONNECTOR KEY BUZZER) CK2, 3 (MT1, K34, UK3) (EXC NYS) 2005-2005 01
011 26101829 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (INCLS KEY BUZZER SWITCH HARNESS) CK1 (MG5, K34, UK3) 2005-2005 01
011 26101829 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (INCLS KEY BUZZER SWITCH HARNESS) K2 (36) (MN8, MT1, K34, UK3, Z85) (EXC NYS) 2005-2005 01
011 26101829 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06-36) (M30, K34, UK3, Z55) (EXC NP7, Y91) 2005-2006 01
011 26101829 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06-36) (M30, K34, UK3, ZQ1, ZW7, Z71) (EXC NP7, Y91) 2005-2006 01
011 26101829 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06-36) (M30, M32, K34, UK3, Y91, Z75, 15I) (EXC ULT, WSD) 2005-2006 01
011 26101829 COIL KIT, INFL RST STRG WHL MDL (PART OF 12) (INCLS KEY BUZZER SWITCH HARNESS) CK1 (06-36) (M30, M32, K34, UK3, Y91, Z75, 92I) (EXC WSD) 2005-2006 01
012 COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА ILLUSTRATION ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 11) 2003-2007
013 16759159 БОЛТ, STRG WHL SHRD (PART OF 1) (M4X1.5X10) (TORX) (6.512) CK1, 2, 3 2003-2007 02
