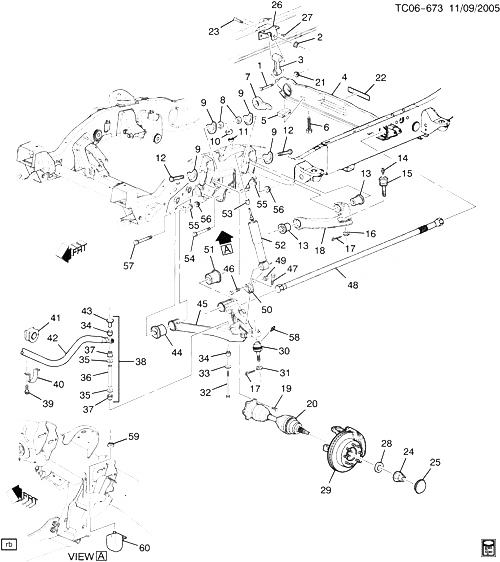

(TC06-673) - 2002-2006 CK2(06-36) ПОДВЕСКА-ПЕРЕДНЯЯ CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609819 BOLT-HEX W/CON WA, M14X2X85, 45 THD, 28 OD, 10.9, GMW3359 (PART OF 4) 2000-2006 04
002 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (TORS BAR SUPT LINK) 2000-2006 04
003 15736950 LINK, TORS BAR SUPT (PART OF 4) K2 (06-36-43) (MN8, MT1, C6P) 2005-2005 02
004 15769710 SUPPORT, TORS BAR (INCLS 1, 3, 21, 22) (INCLS LINK, LABEL, SPACER) K2 (06-36-43) (MN8, MT1, C6P) 2005-2005 01
005 11561233 ГАЙКА, TORS BAR ADJ CK1, 2, 3 2001-2006 02
006 15530026 БОЛТ, TORS BAR ADJ (M12X1.75X56, 47.8 GRIP, FULL THD) CK1, 2 2001-2005 02
007 15045171 ARM, TORS BAR ADJ (COLOR CODE PURPLE) CK1, 2, 3 (FT2, FT3) 2001-2006 02
007 15243119 ARM, TORS BAR ADJ (COLOR CODE TAN) CK1, 2, 3 (FT4, FT5) 2005-2006 02
007 15269561 ARM, TORS BAR ADJ CK1, 2, 3 (FT6, FT7) 2005-2006 02
007 15592573 ARM, TORS BAR ADJ (COLOR CODE GREEN) CK1, 2, 3 (FK2, FK3) 2001-2006 02
007 15592574 ARM, TORS BAR ADJ (COLOR CODE WHITE) CK1, 2, 3 (FF4, FF5) 2001-2006 02
007 15603963 ARM, TORS BAR ADJ (COLOR CODE ORANGE) CK1, 2, 3 (FF6, FF7) 2001-2006 02
007 15657374 ARM, TORS BAR ADJ (COLOR CODE BLUE) CK1, 2, 3 (FF8, FF9) 2003-2006 02
008 ГАЙКА, FRT UPR CONT ARM (PART OF 9) 2002-2006
009 12472859 CAM KIT, FRT UPR CONT ARM ADJ (INCLS 8, 12) (INCLS 8-CAMS, 4-BOLTS 4-NUTS) (LOCATING PIN PART OF FRAME) CK1, 2, 3 2001-2006 01
010 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (FRT S/ABS) 2000-2006 02
011 15042048 INSULATOR, FRT S/ABS (58.0MM DIA X 30.0MM) (SHOCK MOUNT) CK1, 2, 3 2001-2005 02
012 БОЛТ, FRT UPR CONT ARM (PART OF 9) 2002-2006
013 15711270 BUSHING, FRT UPR CONT ARM (PART OF 18) CK2, 3 2001-2006 02
014 FITTING, FRT SUSP LUB (PART OF 18) 2002-2006
015 STUD, FRT UPR CONT ARM BALL (PART OF 18) 2002-2006
016 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (PART OF 18) (8.917) 2000-2006 02
017 11514337 PIN, COTTER, 3.0X30MM 2000-2006 04
018 15224737 ARM, FRT UPR CONT (INCLS STUD, BUSH, NUTS) (INCLS 13-16) (FOR VEH W/Z55 USE SNSR 15267455/6 OR BRK 25385385/6) CK2, 3 2001-2006 02
019 11509419 БОЛТ, FRT WHL DRV SHF (M10X1.5X25, 10.9) (HEX) (8.900) K1, 2, 3 2001-2006 12
020 15868120 SHAFT KIT, FRT WHL DRV K2, 3 2001-2006 02
021 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (PART OF 4) 2000-2006 02
022 15772975 LABEL, FRT TORS BAR ADJ WRNG (PART OF 4) CK1, 2, 3 2001-2006 01
023 11609819 BOLT-HEX W/CON WA, M14X2X85, 45 THD, 28 OD, 10.9, GMW3359 (TORS BAR SUPT LINK) 2000-2006 02
024 11609826 ГАЙКА, FRT WHL DRV SHF (M24X2X22) K1, 2, 3 2001-2005 02
025 15719002 CAP, F/AXL HUB K2, 3 2004-2005 02
026 15018248 SUPPORT, TORS BAR (MOUNTED TO FRAME) (BRACKET W/O RUBBER BUSHING) K259 (06-36) 2005-2005 02
027 RIVET, TORS BAR SUPPORT 2002-2006
028 15522089 WASHER, FRT WHL DRV SHF (6.063) K1, 2, 3 2001-2006 02
029 KNUCKLE, STRG (W/HUB) (СМ. ГРУППУ 04.000 BRAKE CALIPER MOUNTING KNUCKLE ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2002-2006
030 12475477 STUD, FRT LWR CONT ARM BALL (PART OF 45) (INCLS 58) CK2, 3 2003-2006 02
031 15046285 ГАЙКА, FRT LWR CONT ARM BALL STUD (PART OF 45) (M16X2X20) (NUT-HEX W/ CONICAL WASHER) (7.530) (ACDelco #15046285) CK1, 2, 3 2001-2006 02
032 БОЛТ, FRT STAB SHF LINK (PART OF 38) 2002-2006
033 WASHER, FRT STAB SHF LINK (PART OF 38) 2002-2006
034 INSULATOR, FRT STAB SHF LINK (PART OF 38) 2002-2006
035 WASHER, FRT STAB SHF LINK (PART OF 38) 2002-2006
036 SPACER, FRT STAB SHF LINK (PART OF 38) 2002-2006
037 INSULATOR, FRT STAB SHF LINK (PART OF 38) 2002-2006
038 10385580 LINK, FRT STAB SHF (INCLS 32-37, 43) CK1, 2, 3 2001-2006 02
039 11518294 BOLT-HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT 2000-2006 04
040 88891781 CLAMP, FRT STAB SHF INSL CK1, 2, 3 2001-2006 02
041 14019009 INSULATOR, FRT STAB SHF (FOR 32 MM STAB BAR) CK2, 3 2002-2006 02
041 14062929 INSULATOR, FRT STAB SHF (RUBBER) (W/31.8MM STAB BAR) K1, 2, 3 2000-2006 02
041 14071381 INSULATOR, FRT STAB SHF (RUBBER) (28.6 MM STAB BAR) CK1, 2, 3 2001-2006 02
041 15005612 INSULATOR, FRT STAB SHF (FOR 36 MM STAB BAR) CK1, 2, 3 2001-2006 02
042 15711020 SHAFT, FRT STAB (DIA 35.9 MM) K2 2004-2005 01
043 ГАЙКА, FRT STAB SHF LINK (PART OF 38) 2002-2006
044 15034801 BUSHING, FRT LWR CONT ARM (PART OF 45) (FRT) CK2, 3 2001-2005 02
045 15103878 ARM, FRT LWR CONT (INCLS 30, 31, 44, 47, 50, 51, 58) CK2, 3 2001-2006 01
045 25909327 ARM, FRT LWR CONT (INCLS 30, 31, 44, 47, 50, 51, 58) CK2, 3 2001-2006 01
046 11516871 BOLT/SCREW - FRT S/ABS, M14X2X66 2000-2006 02
047 11516918 BOLT ASM-M10X1.5X30, 25 THD, 20 OD, 10.9, 7114M (PART OF 45) 2000-2006 04
048 15048307 BAR, FRT TORS (CODE XK) (MAX TORQUE 4553) CK1, 2, 3 (6XK) 2001-2006 01
048 15048308 BAR, FRT TORS (CODE XK) (MAX TORQUE 4553) CK1, 2, 3 (7XK) 2001-2006 01
048 15048309 BAR, FRT TORS (CODE XL) (MAX TORQUE 4626) CK1, 2, 3 (6XL) 2001-2006 01
048 15048310 BAR, FRT TORS (CODE XL) (MAX TORQUE 4626) CK1, 2, 3 (7XL) 2001-2006 01
048 15048311 BAR, FRT TORS (CODE XM) (MAX TORQUE 5638) CK1, 2, 3 (6XM) 2001-2006 01
048 15048312 BAR, FRT TORS (CODE XM) (MAX TORQUE 5638) CK1, 2, 3 (7XM) 2001-2006 01
048 15058265 BAR, FRT TORS (CODE YF) (MAX TORQUE 4863) CK1, 2, 3 (6YF) 2002-2006 01
048 15058266 BAR, FRT TORS (CODE YF) (MAX TORQUE 4863) CK1, 2, 3 (7YF) 2002-2006 01
048 15058267 BAR, FRT TORS (CODE YH) (MAX TORQUE 5913) CK1, 2, 3 (6YH) 2005-2006 01
048 15058268 BAR, FRT TORS (CODE YH) (MAX TORQUE 5913) CK1, 2, 3 (7YH) 2005-2006 01
048 15072933 BAR, FRT TORS (CODE YT) (MAX TORQUE 7267) CK1, 2, 3 (6YT) 2001-2006 01
048 15072934 BAR, FRT TORS (CODE YT) (MAX TORQUE 7267) CK1, 2, 3 (7YT) 2001-2006 01
048 15528957 BAR, FRT TORS (CODE GG) (MAX TORQUE 6790) CK1, 2, 3 (6GG) 2001-2006 01
048 15528958 BAR, FRT TORS (CODE GG) (MAX TORQUE 6790) CK1, 2, 3 (7GG) 2001-2006 01
048 15528963 BAR, FRT TORS (CODE GK) (MAX TORQUE 8615) CK1, 2, 3 (6GK) 2001-2006 01
048 15528964 BAR, FRT TORS (CODE GK) (MAX TORQUE 8615) CK1, 2, 3 (7GK) 2001-2006 01
048 15528965 BAR, FRT TORS (CODE GL) (MAX TORQUE 8782) CK1, 2, 3 (6GL) 2001-2006 01
048 15528966 BAR, FRT TORS (CODE GL) (MAX TORQUE 8782) CK1, 2, 3 (7GL) 2001-2006 01
048 15732338 BAR, FRT TORS (CODE XG) (MAX TORQUE 9054) CK1, 2, 3 (6XG) 2001-2006 01
048 15732339 BAR, FRT TORS (CODE XG) (MAX TORQUE 9054) CK1, 2, 3 (7XG) 2001-2006 01
049 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (FRT S/ABS) 2000-2006 02
050 15037379 BRACKET, FRT S/ABS (PART OF 45) CK2, 3 2001-2006 02
051 15034802 BUSHING, FRT LWR CONT ARM (PART OF 45) (RR) CK2, 3 2001-2005 02
052 15210858 АМОРТИЗАТОР, FRT SHK (INCLS 53) (CODE LDN, TX5, YX6) (ACDelco #540-71) K259 (36) (Z85) 2004-2005 02
053 SPACER, FRT S/ABS (PART OF 52) 2002-2006
054 15733534 БОЛТ, FRT LWR CONT ARM (RR) (M16X2.0X140, 52 THD) CK1, 2 2001-2005 02
055 15567836 WASHER, FRT LWR CONT ARM (16.38IDX23.87ODX3.27) (6.168) CK1, 2, 3 2001-2006 04
056 11516133 ГАЙКА, M16X2, 15THK, 24.5 O.D., 10, PZOR 2000-2006 04
057 15733533 БОЛТ, FRT LWR CONT ARM (FRT) (M16X2.0X118, 60 THD) CK1, 2 2000-2005 02
058 FITTING, FRT SUSP LUB (PART OF 30, 45) 2002-2006
059 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (FRT LWR CONT ARM BPR) (2.383) 2000-2006 02
060 15835666 BUMPER, FRT LWR CONT ARM (W/O NUT) (SQUARE W/DOMED TOP) CK2, 3 2001-2006 02
