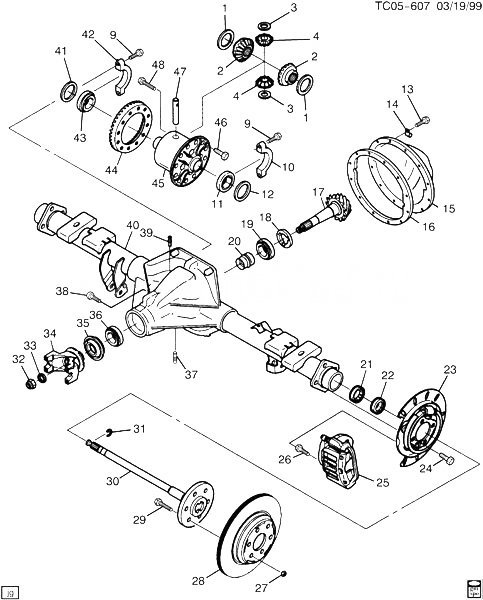

(TC05-607) - 2005 CK1 МОСТ В СБОРЕ/ЗАДНИЙ 8.625 RING GEAR ЧАСТЬ 1 (JC4,JH1,JH2 EXC JL4,NYS,P96) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 WASHER, DIFF SI GR THR (*KIT2) 2005-2005
002 GEAR, DIFF SI (*KIT2) 2005-2005
003 03984818 WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT2) CK1 (EXC G80) 2003-2006 01
004 GEAR, DIFF PINION (*KIT2) 2005-2005
009 00454947 БОЛТ, HEX .437-14X2.250 CL-2A CAD/ZC (DIFF BRG CAP) 1999-2007 04
010 CAP, DIFF CARRIER BEARING (PART OF 40) 2005-2005
011 25824250 BEARING, DIFF (ACDelco #S1380) CK1 2002-2007 02
012 12471330 SPACER, DIFF BRG (4.37-4.32MM THK) (5.650) CK1 2002-2007 02
013 12471307 БОЛТ, R/AXL HSG CVR (M8X1.25X20) (*KIT1) CK1 (EXC P96) 2003-2007 10
014 15148676 CLIP, RR BRK C/OVR PIPE (CLOSED LOOP) (DIA 8.75MM, C-TO-C 36.5, WIDTH 20, HOLE 11MM, SAE1008-1010) CK1, 2, 3 2001-2005 01
015 COVER, R/AXL HSG (*KIT1) 2005-2005
016 15807693 GASKET, R/AXL HSG CVR (10 BOLT HOLES) (*KIT1) CK1 2002-2007 01
017 GEAR, DIFF PINION (*KIT3) 2005-2005
018 01394892 SHIM KIT, DIFF DRV P/GR BRG (.020-.024 THK) CK1 2002-2007 01
018 01394893 SHIM KIT, DIFF DRV P/GR BRG (.025-.029 THK) CK1 2002-2007 01
018 01394894 SHIM KIT, DIFF DRV P/GR BRG (.030-.034 THK) CK1 2002-2007 01
018 01394895 SHIM KIT, DIFF DRV P/GR BRG (.035-.039 THK) CK1 2002-2007 01
018 26043991 SHIM KIT, DIFF DRV P/GR BRG (.040-.044 THK) CK1 2002-2007 01
018 26043992 SHIM KIT, DIFF DRV P/GR BRG (.045-.049 THK) CK1 2002-2007 01
019 15286375 BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE) (ACDelco #S1371) CK1 2002-2007 01
020 12479162 SPACER, DIFF DRV P/GR BRG (.062-.068 THK) CK1 2002-2007 01
021 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) CK1 (EXC P96) 2003-2007 02
022 12471686 SEAL, R/AXL SHF (ACDelco #291-315) CK1 (EXC P96) 2002-2007 02
023 SHIELD, RR BRK (СМ. ГРУППУ 04.000 PARKING BRK ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2005
024 11509421 БОЛТ, M12X1.75X40 (PARK BRK) 2002-2007 08
025 CALIPER, RR BRK (СМ. ГРУППУ 04.000 ТОРМОЗНОЙ СУППОРТ-ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2005
026 15012506 БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) CK1 2005-2007 04
027 RETAINER, RR BRK ROT (PUSH ON) 2005-2005
028 25757802 ROTOR, RR BRK (330MM DIA, 90MM LONG, STMPD 25757801, 30 MM THICK) (STMPD 25757801) (30 MM THICK) (ACDelco #177-902) CK1 (06-36) (JH2) 2004-2006 02
029 11588810 STUD, RR WHL (M14X1.5X65) K1 (06-36) (GT5, JH2) 2004-2005 16
029 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK1 (06-36) (GT4, JH2) 2004-2005 12
029 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) K1 (06-36) (GU6, JH2) 2005-2005 12
029 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK157, 159 2005-2007 12
030 12479285 SHAFT, R/AXL CK1 (06-36) (JH2) 2005-2006 02
031 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) CK1 1999-2007 02
032 88891763 ГАЙКА, DIFF DRV P/GR (M10) CK1 1999-2007 01
033 00517900 WASHER, DIFF DRV P/GR (.890X1.625X.190) CK1 2002-2007 01
034 12470387 YOKE KIT, DIFF DRV P/GR (30 TEETH) (INCLS YOKE, SEAL, WASHER, NUT) (FOR NON-CANADIAN ORDERS) CK1 (06-36) 2002-2005 01
035 26064028 SEAL, DIFF DRV P/GR (2 PIECE PINION SEAL) (TRIPLE LIP) (RR AXLE) CK1 2002-2007 01
036 15286376 BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, M88048-M88010, 1 5/16 IN ID X 2 11/16 IN OD X 7/8 IN THK) (5.484) (ACDelco #S1372) CK1 2002-2007 01
037 PLUG, R/AXL HSG DRN 1999-2007
037 12471308 PLUG, R/AXL HSG DRN (W/WASHER) CK1 2001-2005 01
038 25522466 PLUG, 1/2-14 X 39/64 (R/AXL HSG FILL) (ACDelco #25522466) 1999-2007 01
039 26063647 CONNECTOR, R/AXL VENT HOSE CK1, 2, 3 2001-2007 01
040 12479276 ШЛАНГИ, R/AXL (INCLS 10, 42) CK1 (06-36) (JH2) (EXC JL4) 2004-2005 01
041 12471330 SPACER, DIFF BRG (4.37-4.32MM THK) (5.650) CK1 2002-2007 02
042 CAP, DIFF CARRIER BEARING (PART OF 40) 2005-2005
043 25824250 BEARING, DIFF (ACDelco #S1380) CK1 2002-2007 02
044 GEAR, DIFF SI (*KIT3) 2005-2005
045 12471540 CASE, DIFF (STAMPED 7875/LESS INT GEARS) CK1 (EXC G80, P96) 2003-2007 01
046 14066913 БОЛТ, RR DIFF R/GR (7/16-20X7/8) (HEX) CK1 2002-2007 10
047 26056109 SHAFT, DIFF P/GR (124.84MM) (*KIT2) CK1 (EXC P96) 2003-2007 01
048 14056196 БОЛТ, DIFF P/GR SHF LK (5/16-18X1 3/4) (*KIT2) CK1 2002-2006 01
K01 15290822 COVER KIT, R/AXL HSG (INCLS 13, 15, 16) (INCLS COVER, GASKET, PLUG, BOLTS, BRACKETS) CK1 2002-2007 01
K02 19179021 GEAR KIT, DIFF SI PINION (INCLS 1-4, 47, 48) (RR AXLE) CK1 (EXC G80) 2002-2007 01
K03 12479056 GEAR SET, DIFF RING DRV PINION (INCLS 17, 44) CK1 (GT5) 2002-2007 01
K03 12479129 GEAR SET, DIFF RING DRV PINION (INCLS 17, 44) (INCLS BOLTS, PINION, RING SPACER) CK1 (GU6) 2005-2007 01
K03 12479316 GEAR SET, DIFF RING DRV PINION (INCLS 17, 44) CK1 (GT4) 1999-2007 01
