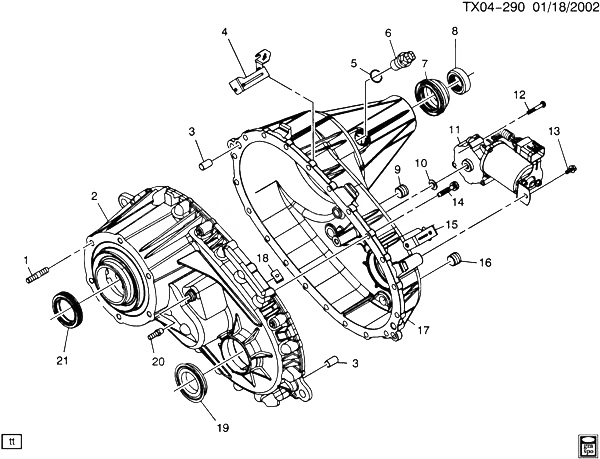

(TX04-290) - 2003-2005 K1 КОРПУС КП (NR4) ЧАСТЬ 1 CASE (BORG WARNER 4482) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89059522 STUD, TRFER CASE ADAP (PART OF 2) K1 (M30, NR4) 2003-2005 06
002 19132936 CASE, TRFER (FRT HALF) (INCLS 1, 3, 21) K1 (M30, NR4) 2003-2005 01
003 88984499 PIN, TRFER CASE HALF LOC (PART OF 2) K1 (M30, NR4) 2003-2005 02
004 88996459 BRACKET, TRFER CASE (UPPER) K1 (M30, NR4) 2003-2005 01
005 88984510 SEAL, VEH SPD SEN HOLE PLUG (O RING) (PART OF 6) K1 (M30, NR4) 2003-2005 01
006 12376520 SENSOR, TRFER CASE RR OUTPUT SHF SPD (INCLS 5) (2-WAY MALE) (3.682) (ACDelco #213-347) K1 (M30, NR4) 2003-2005 01
007 89059495 SEAL, TRFER CASE RR OUTPUT SHF K1 (M30, NR4) 2003-2005 01
008 PLUG, SHIPPING 2003-2005
009 88984495 PLUG, TRFER CASE OIL FILL K1 (M30, NR4) 2003-2005 01
010 88984494 SEAL, TRFER CASE SHFT DTNT LVR K1 (M30, NR4) 2003-2005 01
011 89059688 ACTUATOR, TRFER CASE FOUR WHL DRV (INCLS ENCODER MOTOR) K1 (M30, NR4) 2003-2005 01
012 88984514 БОЛТ, TRFER CASE FOUR WHL DRV ACTR (M6X1.0X40.0) (W/O LOCTITE PATCH) (4.510) K1 (M30, NR4) 2003-2005 03
013 88984513 БОЛТ, TRFER CASE (M6X1.0X15.0) K1 (M30, NR4) 2003-2005 01
014 89059524 БОЛТ, TRFER CASE HALF (M8X1.25X43.0) K1 (M30, NR4) 2003-2005 20
015 88996460 BRACKET, TRFER CASE (LOWER) K1 (M30, NR4) 2003-2005 01
016 88984495 PLUG, TRFER CASE OIL FILL (DRAIN) K1 (M30, NR4) 2003-2005 01
017 89059498 CASE, TRFER (RR HALF) (INCLS NON SERVICEABLE BUSHING) K1 (M30, NR4) 2003-2005 01
018 15580300 MAGNET, TRFER CASE CHIP COLLECTOR (25.40X19.05X5.59MM) K1 (M30, NR4) 2003-2005 01
019 88984501 SEAL, TRFER CASE FRT OUTPUT SHF K1 (M30, NR4) 2003-2005 01
020 15580319 VENT, TRFER CASE K1 (M30, NR4) 2003-2005 01
021 12474423 SEAL, TRFER CASE INPUT SHF (PART OF 2) K1 (M30, NR4) 2003-2005 01
