| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

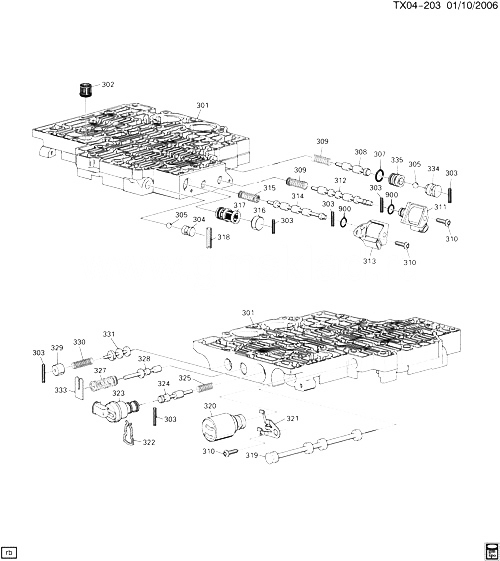

| 301 |
|
BODY, C/VLV (*KIT1) |
|
2001-2007 |
|
| 302 |
24205852 |
ФИЛЬТР, PRESS CONT SOL VLV FLUID (0.695 X 0.677 HGT) (FORCE MOTER FEED) (*KIT1) (ACDelco #24205852) |
CK1, 2, 3 (MT1) |
2001-2005 |
01 |
| 303 |
|
PIN, ACCUM VLV BORE PLUG (*KIT1) |
|
2001-2007 |
|
| 304 |
|
PLUG, BODY CONT VLV BALL (*KIT1) |
|
2001-2007 |
|
| 305 |
07826284 |
BALL, 3/8 DIA STEEL (*KIT1) (ACDelco #7826284) |
|
1999-2007 |
02 |
| 307 |
24201388 |
SEAL, 3RD BALL VLV BUSH (*KIT1) (ACDelco #24201388) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 308 |
|
VALVE, 3-4 SHFT (*KIT1) |
|
2001-2007 |
|
| 309 |
08661891 |
ПРУЖИНА, 2-3 SHFT VLV (*KIT1) (ACDelco #8661891) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 309 |
08661891 |
ПРУЖИНА, 3-4 SHFT VLV (*KIT1) (ACDelco #8661891) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 310 |
11561724 |
SCREW, PAN W/NYLON WA, M6X1X19.45, 14 THD, 12 OD, 10.9, GMW4205, M-PT (*KIT1) |
|
1999-2007 |
03 |
| 311 |
24230289 |
VALVE, 2-3 SHFT SOL (INCLS 900) (*KIT1) (ACDelco #24230289) |
CK1, 2, 3 (MT1) |
2004-2007 |
01 |
| 312 |
|
VALVE, 2-3 SHFT (*KIT1) |
|
2001-2007 |
|
| 313 |
24230288 |
VALVE, 1-2 SHFT SOL (INCLS 900) (*KIT1) (ACDelco #24230288) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 314 |
|
VALVE, 1-2 SHFT (*KIT1) |
|
2001-2007 |
|
| 315 |
|
ПРУЖИНА, 1-2 SHFT VLV RTN (*KIT1) |
|
2001-2007 |
|
| 316 |
|
PLUG, SHFT VLV FLUID FLTR BORE (*KIT1) |
|
2001-2007 |
|
| 317 |
24205853 |
ФИЛЬТР, SHFT SOL VLV FLUID (*KIT1) (ACDelco #24205853) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 318 |
|
SLEEVE, LOW/REV CHECK BALL (*KIT1) |
|
2001-2007 |
|
| 319 |
24203484 |
VALVE, MAN (*KIT1) (4.265) (ACDelco #24203484) |
CK1, 2, 3 (MT1) |
2004-2007 |
01 |
| 319 |
24243474 |
VALVE, MAN (*KIT1) |
CK1, 2, 3 (MT1) |
2004-2007 |
01 |
| 320 |
24225320 |
VALVE, PRESS CONT SOL (*KIT1) (ACDelco #24225320) |
CK1, 2, 3 (MT1) |
2004-2007 |
01 |
| 321 |
08684217 |
CLAMP, PRESS CONT SOL VLV (*KIT1) (ACDelco #8684217) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 322 |
08678523 |
RETAINER, TCC PWM SOL VLV (*KIT1) (4.122) (ACDelco #8678523) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 323 |
24210864 |
VALVE, TCC PWM SOL (*KIT1) (ACDelco #24210864) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 324 |
|
VALVE, TCC REG APPLY (*KIT1) |
|
2001-2007 |
|
| 325 |
|
ПРУЖИНА, TCC REG APPLY VLV (*KIT1) |
|
2001-2007 |
|
| 327 |
|
ПРУЖИНА, ACTR FEED LIM VLV (*KIT1) |
|
2001-2007 |
|
| 328 |
|
VALVE, ACTR FEED LIM (*KIT1) |
|
2001-2007 |
|
| 329 |
|
PLUG, ACCUM VLV BORE (*KIT1) |
|
2001-2007 |
|
| 330 |
|
ПРУЖИНА, ACCUM VLV (*KIT1) |
|
2001-2007 |
|
| 331 |
|
VALVE, ACCUM (*KIT1) |
|
2001-2007 |
|
| 333 |
08684215 |
RETAINER, ACTR FEED LIM VLV SPR (*KIT1) (ACDelco #8684215) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 334 |
|
BUSHING, REV BALL VLV (*KIT1) |
|
2001-2007 |
|
| 335 |
|
BUSHING, 3RD BALL VLV (*KIT1) |
|
2001-2007 |
|
| 900 |
10483630 |
SEAL, 1-2, 3-4 SHFT SOL VLV (O RING) (PART OF 311, 313) (*KIT1) (4.122) (ACDelco #10483630) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| K01 |
24224907 |
VALVE, CONT (W/BODY VLV) (INCLS 301-335, 900) (ACDelco #24224907) |
CK1, 2, 3 (LQ4, MT1) |
2004-2007 |
01 |
