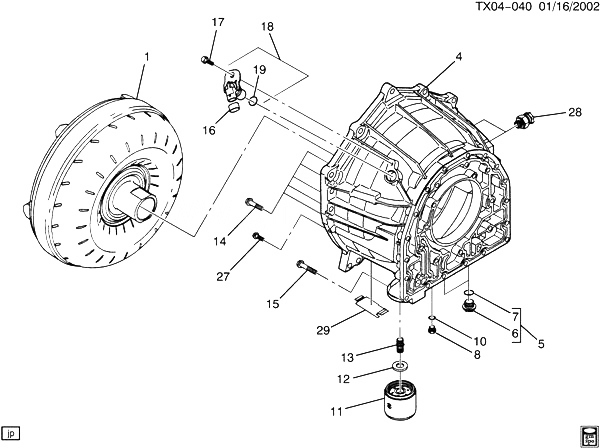

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
17804309 |
CONVERTER, TORQ |
CK2, 3 (LLY, M74) |
2005-2005 |
01 |
| 001 |
29543015 |
CONVERTER, TORQ |
CK2, 3 (L18, M74) |
2001-2005 |
01 |
| 004 |
29540491 |
ШЛАНГИ, T/CV (ACDelco #29540491) (FOR 3/4 THD USE 29540501/CONNFOR 7/8 THD USE 88996640/CONN KIT) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 005 |
|
PLUG ASSEMBLY, SHIPPING |
|
2001-2005 |
|
| 006 |
|
PLUG, SHIPPING |
|
2001-2005 |
|
| 007 |
|
SEAL, SHIPPING |
|
2001-2005 |
|
| 008 |
29500034 |
PLUG, A/TRNS FLUID PRESS TEST HOLE (INCLS 10) (INCLS O-RING) (4.256) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 010 |
23043446 |
SEAL, A/TRNS FLUID PRESS TEST HOLE PLUG (O RING) (PART OF 8) (4.265) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 011 |
29539579 |
ФИЛЬТР, A/TRNS FLUID (SPIN-ON) (EXT) (ACDelco #TF950) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 012 |
29535617 |
MAGNET, TRANS (EXT FILTER) (ACDelco #29535617)
| CK2, 3 (M74) |
2001-2005 |
01 |
|
| 013 |
29536298 |
ADAPTER, A/TRNS FLUID FLTR (EXT) (4.248) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 014 |
29536947 |
БОЛТ, T/CV HSG (M10X1.5X50 FL HD) |
CK2, 3 (M74) |
2001-2005 |
18 |
| 015 |
29541273 |
BOLT/SCREW, FLAT HD, M10X1.5X70 (T/CV HSG) (4.115) |
|
2001-2005 |
05 |
| 016 |
|
COVER, VEH SPD SEN HSG (SHIPPING) |
|
2001-2005 |
|
| 017 |
29537511 |
БОЛТ, VEH SPD SEN (4.329) (ACDelco #29537511) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 017 |
29537511 |
БОЛТ, VEH SPD SEN (ACDelco #29537511) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 018 |
29536408 |
SENSOR, A/TRNS TURB SPD (INCLS 19) (ACDelco #213-958) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 019 |
29534145 |
SEAL, VEH SPD SEN (O RING) (PART OF 18) (ORANGE) (I.D. 18MM) (ACDelco #29534145) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 027 |
29537403 |
БОЛТ, T/CV HSG (M10X1.5X110 FLG HD) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 028 |
88996645 |
CONNECTOR KIT, TRANS FLUID CLR INL HOSE (ALSO USED FOR OUTLET) (HAS WHITE RETAINER 88996648) |
CK2, 3 |
2003-2005 |
02 |
| 028 |
88996647 |
RETAINER, TRANS FLUID CLR PIPE (INCLUDED WITH CONNECTOR) (BLUE RETAINER CLIP) |
CK2, 3 |
2001-2005 |
01 |
| 028 |
88996648 |
RETAINER, TRANS FLUID CLR PIPE (INCLUDED WITH CONNECTOR) (5/8) (E-STYLE) (WHITE RETAINER CLIP) |
CK2, 3 (L18, M74, MN8, M74, ML6, MW7) |
2003-2005 |
01 |
| 028 |
88996648 |
RETAINER, TRANS FLUID CLR PIPE (INCLUDED WITH CONNECTOR) (5/8) (E-STYLE) (WHITE RETAINER CLIP) |
CK2, 3 (LB7, ML6, MN8, M74) |
2003-2005 |
01 |
| 028 |
88996648 |
RETAINER, TRANS FLUID CLR PIPE (INCLUDED WITH CONNECTOR) (5/8) (E-STYLE) (WHITE RETAINER CLIP) |
CK2, 3 (LLY, ML6, MN8, M74, MW7) |
2004-2005 |
01 |
| 029 |
29536835 |
COVER, T/CV CVR ACC HOLE |
CK2, 3 (M74) |
2001-2005 |
01 |
