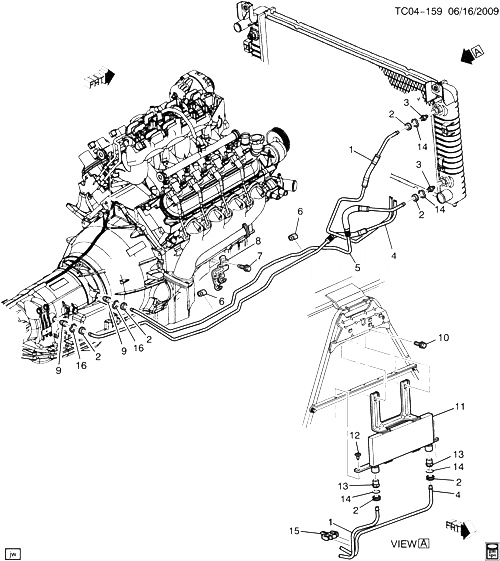

(TC04-159) - 2001-2007 CK АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА АКПП (LQ4/6.0U, MT1,KNP) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15809057 HOSE, TRANS FLUID AUX CLR INL (INCLS 2, 3) (ACDelco #15809057) CK2, 3 (LQ4, MT1, KNP) 2005-2007 01
002 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 4, 5) (PLASTIC RETAINER) (ACDelco #15052228) CK1, 2, 3 2001-2007 06
003 15226661 CONNECTOR, TRANS FLUID CLR PIPE (PART OF 1) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) CK1, 2, 3 2000-2007 02
004 15812029 PIPE, TRANS FLUID CLR LWR (INLET) (CODE CDB, KXG, KSM, KLH, KRB) (INCLS 2) (ACDelco #15812029) CK1, 2, 3 (LQ4, MT1, KNP) 2001-2006 01
005 15267484 PIPE, TRANS FLUID CLR UPR (INCLS 2) (ACDelco #15267484) CK1, 2, 3 (LQ4, MT1, KNP) 2001-2007 01
006 15068848 CLIP, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA ТРУБКИ , CLIP TOP) CK1, 2, 3 2001-2006 02
007 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (BAT POS CBL CLIP) 2000-2007 01
008 15022958 CLIP, BAT POS CBL (RETAINS 9.5MM STL TUBING) CK1, 2, 3 (LQ4) 2001-2007 01
009 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) CK1, 2, 3 (EXC M74) 2001-2005 01
010 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (TRANS FLUID CLR) 2000-2007 02
011 25877162 COOLER, TRANS FLUID AUX (CODE 4639, 5464, 9344, 7192) (INCLS 13, 14) (ACDelco #25877162) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2005 01
012 15149708 RETAINER, TRANS FLUID AUX CLR (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505) CK1, 2, 3 (KNP) 2001-2005 02
013 15724728 CONNECTOR, TRANS FLUID CLR PIPE (INCLS 14) (PART OF 11) (3/8 QUICK CONNECT, 3/8 NPTF) (AT COOLER) (ACDelco #15724728) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2007 02
014 24205103 CLIP, TRANS FLUID AUX CLR PIPE (PART OF 11, 13) (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) CK1, 2, 3 2001-2007 04
015 15049288 CLIP, TRANS FLUID CLR PIPE (BLACK) (37.7X39.3) (DOUBLE SNAIL CLIP) CK1, 2, 3 2001-2007 01
016 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) CK1, 2, 3 2001-2007 02
