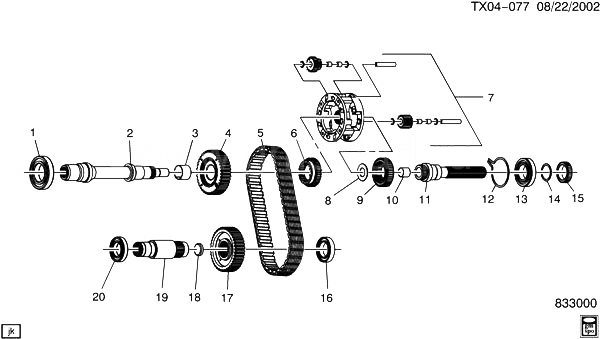

(TX04-077) - 2003-2006 K1 КОРПУС КП (NR3) ЧАСТЬ 2 INTERNAL COMPONENTS-AWD (BORG WARNER 4481) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88984507 BEARING, TRFER CASE INPUT SHF K1 (NR3) 2005-2006 01
002 89059603 SHAFT, TRFER CASE INPUT K1 (NR3) 2005-2006 01
003 BUSHING, TRFER CASE RR EXTN (PART OF 4) 2003-2006
004 89048541 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV (INCLS 3) (W/BUSHING) K1 (NR3) 2005-2006 01
005 88996485 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1 (NR3) 2005-2006 01
006 88984523 GEAR, TRFER CASE PLNT CARR SUN (OUTPUT) K1 (M32, NR3) 2003-2006 01
007 89059279 CARRIER, FRT/RR DRV DIFF K1 (NR3) 2005-2006 01
008 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR (PART OF 2) K1 (NR3) 2005-2005 01
009 88984524 GEAR, TRFER CASE PLNT CARR SUN (STAMPED PM/POWDERED METAL) (INPUT) (STAMPED PM/POWDERED METAL) K1 (NR3) 2005-2006 01
010 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (PART OF 11) K1 (NR3) 2005-2006 01
011 19168725 SHAFT, TRFER CASE RR OUTPUT (INCLS 10, 13-15) K1 (NR3) 2005-2006 01
012 88984508 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (80MM I.D.) (4.535) K1 (M32, NR3) 2003-2006 01
013 88984506 BEARING, TRFER CASE RR OUTPUT SHF RR (PART OF 11) K1 (NR3) 2005-2006 01
014 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (PART OF 11) (41MM I.D.) (ACDelco #88984493) K1 (NR3) 2005-2006 01
015 88984522 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (PART OF 11) K1 (M32, NR3) 2003-2006 01
016 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT K1 (NR3) 2005-2006 02
017 88996486 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN (*KIT1) K1 (M32, NR3) 2003-2005 01
018 89059602 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 19) K1 (NR3) 2005-2006 01
019 89059607 SHAFT, TRFER CASE FRT OUTPUT (INCLS 18) (*KIT1) K1 (NR3) 2005-2006 01
020 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT K1 (NR3) 2005-2006 02
K01 24232827 CASE, TRFER (W/GEARS) (CODE BV, CS, 9499) (INCLS 17, 19) K1 (NR3) 2005-2005 01
K01 24232827 CASE, TRFER (W/GEARS) (CODE DB) (INCLS 17, 19) K1 (NR3) 2005-2006 01
