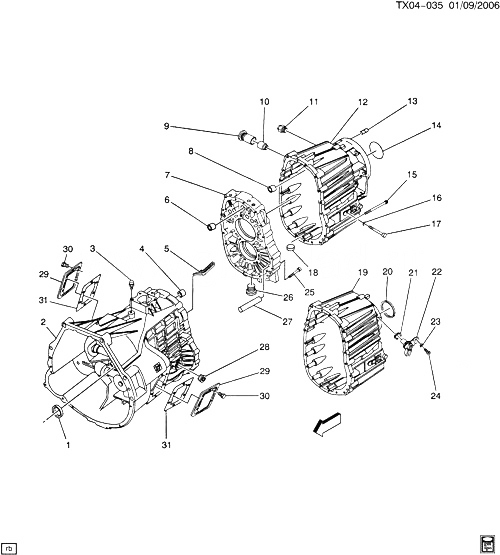

(TX04-035) - 2001-2006 CK2,3 6-ТИ СКОРОСТНАЯ МКПП (ML6) ЧАСТЬ 1 CASE ASSOCIATED PARTS CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89048562 SEAL, INPUT SHF (ACDelco #89048562) CK2, 3 (ML6) 2001-2006 01
002 19132869 CASE, TRANS FRT (0.683) (USE T/W 89059684/VENT KIT) CK2, 3 (ML6) 2001-2006 01
003 12479771 VENT, M/TRNS K2, 3 (ML6) 2003-2005 01
004 BEARING, SHFT RL 2001-2006
005 88984333 TROUGH, M/TRNS OIL CK2, 3 (ML6) 2001-2006 01
006 BEARING, SHFT RL 2001-2006
007 88984334 CASE, TRANS INTER (4.510) CK2, 3 (ML6) 2001-2006 01
008 BEARING, SHFT RL 2001-2006
009 88984412 SLEEVE, SHFT SHF DTNT CK2, 3 (ML6) 2001-2006 01
010 88984411 PLUNGER, SHFT SHF DTNT (4.311) CK2, 3 (ML6) 2001-2006 01
011 12479776 SWITCH, B/U LP (M16X1.5) (ACDelco #D1551G) CK2, 3 (ML6) 2001-2006 01
012 88984416 CASE, TRANS RR K2, 3 (ML6) 2001-2006 01
013 88984336 PIN, TRANS RR CASE LOC CK2, 3 (ML6) 2001-2006 01
014 SEAL, MAIN SHF RR BRG OIL K 2001-2006
015 88984340 БОЛТ, TRANS RR CASE CK2, 3 (ML6) 2001-2006 19
016 10140537 SEAL, REV IDLER GR ACC HOLE CVR BOLT (O RING) (ACDelco #10140537) CK2, 3 (ML6) 2001-2006 01
017 88984390 БОЛТ, REV IDLER GR SHF CK2, 3 (ML6) 2001-2005 01
018 88984338 MAGNET, TRANS CHIP COLLECTOR CK2, 3 (ML6) 2001-2006 01
021 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 22) (I.D. 20MM) (ACDelco #19133158) K2, 3 (LLY, ML6, M74, NP1, NP2) 2004-2006 01
023 WASHER, VEH SPD SEN 2001-2006
025 88984335 БОЛТ, TRANS INTER CASE OIL TROUGH (4.510) CK2, 3 (ML6) 2001-2005 03
026 12479777 PLUG, TRANS OIL DRN (7/8 X 14) CK2, 3 (ML6) 2001-2005 01
027 88984336 PIN, TRANS INTER CASE LOC CK2, 3 (ML6) 2001-2006 01
028 12479777 PLUG, TRANS OIL FIL (7/8 X 14) CK2, 3 (ML6) 2001-2005 01
029 12547312 COVER, PTO (ACDelco #12547312) CK2, 3 (ML6) 2001-2006 02
030 12479780 БОЛТ, PTO CVR (M8X16X20) CK2, 3 (ML6) 2001-2005 12
031 88984331 GASKET, PTO CVR CK2, 3 (ML6) 2001-2006 02
