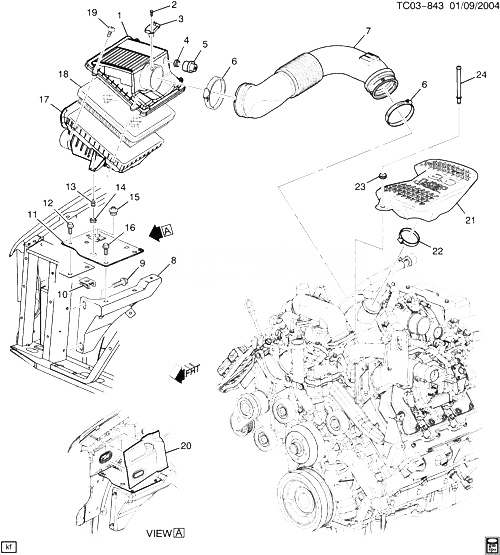

(TC03-843) - 2004-2005 CK2,3 СИСТЕМА ВПУСКА ВОЗДУХА (LLY/6.6-2) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19201277 CLEANER, AIR (INCLS BOLTS, INSERT, ELEMENT, RIVET, FASTENER, GROMMET, ШЛАНГИ, LABEL, COVER, INDICATOR) (INCLS 17-19) CK2, 3 (LLY, K47) 2004-2005 01
002 25316612 БОЛТ, MASS AIRFLOW SEN ADAP (T20 K40 X 10MM) (SELF TAPPING SCREW) (ACDelco #25316612) CK2, 3 (LLY, K47) 2004-2005 01
003 SENSOR, MASS AIRFLOW 2004-2005
004 25178714 GROMMET, A/CL AIR RSTN IND CK2, 3 (LLY, K47) 2004-2005 01
005 15073765 INDICATOR, A/CL AIR RSTN CK2, 3 (LLY, K47) 2004-2005 01
006 CLAMP, A/CL OTLT DUCT (PART OF 7) 2004-2005
007 21993712 DUCT, A/CL OTLT (INCLS 6) CK2, 3 (LLY) 2004-2005 01
008 15066121 SUPPORT, A/CL CK1, 2, 3 2004-2005 01
009 11516424 БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/CL ADAP SUPT) 2004-2005 02
010 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (A/CL BRKT) 2004-2005 02
011 25872321 BRACKET, A/CL ADAP (INCLS TWO GROMMETS) (INCLS 14) (DIESEL NOT STAMPED ON PART) CK1, 2, 3 2004-2005 01
012 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (A/CL ADAP) 2004-2005 03
013 25099299 RIVET, A/CL RESO (3.403) CK2, 3 (LLY, K47) 2004-2005 02
014 25346092 INSULATOR, A/CL BRKT (PART OF 11) (3.270) CK1, 2, 3 2004-2005 02
015 25316546 FASTENER, A/CL CK2, 3 (LLY, K47) 2004-2005 01
016 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/CL ADAP) 2004-2005 02
017 ШЛАНГИ, A/CL (PART OF 1) 2004-2005
018 19160301 ELEMENT, A/CL (PART OF 1) (ACDelco #A1618CF) (DURAPACK) (BULK PKG, QTY 6) CK2, 3 (LLY, K47) 2004-2005 01
018 19166111 ELEMENT, A/CL (PART OF 1) (ACDelco #A1618C) CK2, 3 (LLY, K47) 2004-2005 01
019 БОЛТ, A/CL HSG CVR (PART OF 1) 2004-2005
020 DEADENER, FRT S/D 2004-2005
021 21994000 COVER, UPR INT MANIF (INCLS 22, 23) CK2, 3 (LLY) 2004-2005 01
022 CLAMP, UPR INT MANIF COVER (PART OF 21) 2004-2005
023 GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 21) 2004-2005
024 15134743 БОЛТ, UPR INT MANIF CVR BRKT CK2, 3 (LLY) 2004-2005 01
