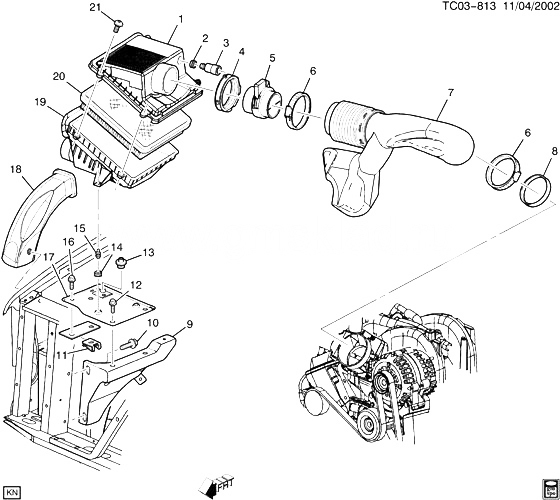

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, A/CL HSG (*KIT1, KIT2, KIT3) |
|
2001-2007 |
|
| 002 |
25178714 |
GROMMET, A/CL AIR RSTN IND (*KIT2, KIT3) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, K47) |
2001-2007 |
01 |
| 003 |
15073765 |
INDICATOR, A/CL AIR RSTN (*KIT2, KIT3)
| CK1, 2, 3 (LM7, LQ4, LR4, LU3, L18, L59, K47) |
2003-2005 |
01 |
|
| 004 |
25171042 |
ADAPTER, MASS AIRFLOW SEN INL
| CK1, 2, 3 |
2001-2007 |
01 |
|
| 005 |
15904068 |
SENSOR, MASS AIRFLOW (INCLS AIR TEMP SENSOR) (ACDelco #213-4160)
| CK1, 2, 3 (LM7, LQ4, LR4, L18, L31, L35, LU3, L59, LQ9, L33) |
2005-2006 |
01 |
|
| 006 |
|
CLAMP, CHRG AIR CLR OTLT DUCT (PART OF 7) |
|
2001-2007 |
|
| 007 |
15059111 |
DUCT, A/CL OTLT (INCLS 6, 8) (INCL SEAL) |
CK2 (06-36) (L18) |
2002-2006 |
01 |
| 008 |
25180042 |
SEAL, A/CL OTLT DUCT (PART OF 7)
| CK2, 3 (L18) |
2001-2007 |
01 |
|
| 009 |
15066121 |
SUPPORT, A/CL
| CK1, 2, 3 |
2001-2007 |
01 |
|
| 010 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/CL ADAP SUPT)
|
2001-2007 |
02 |
|
| 011 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (A/CL BRKT) |
|
2001-2007 |
02 |
| 012 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/CL ADAP) |
|
2001-2007 |
02 |
| 013 |
25316546 |
FASTENER, A/CL (*KIT1, KIT2, KIT3) |
CK1, 2, 3 (LM7, LQ4, LR4, L18, L59, LQ9) |
2003-2007 |
01 |
| 014 |
25346092 |
INSULATOR, A/CL BRKT (PART OF 17) (3.270) |
CK1, 2, 3 |
2001-2007 |
02 |
| 015 |
25099299 |
RETAINER, A/CL (*KIT1, KIT2, KIT3)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L59, L33) |
2005-2007 |
02 |
|
| 016 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (A/CL ADAP) |
|
2001-2007 |
03 |
| 017 |
25872321 |
BRACKET, A/CL ADAP (INCLS TWO GROMMETS) (INCLS 14) (DIESEL NOT STAMPED ON PART) |
CK1, 2, 3 |
2001-2007 |
01 |
| 019 |
|
ШЛАНГИ, A/CL (*KIT1, KIT2, KIT3) |
|
2001-2007 |
|
| 020 |
25313348 |
ELEMENT, A/CL (*KIT2, KIT3) (ACDelco #25313348) |
CK1, 2, 3 (LM7, LQ4, LR4, LU3, L18, L59, L33, LQ9) (EXC K47) |
2005-2006 |
01 |
| 020 |
25313349 |
ELEMENT, A/CL (*KIT2, KIT3) (ACDelco #25313349) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, L59, K47) |
2005-2006 |
01 |
| 021 |
11515268 |
SCREW, PAN HD C/R, M6X1X30, 28 THD, 4.8, NZ (A/CL HSG CVR) (*KIT1, KIT2, KIT3) (8.913) |
|
2001-2007 |
04 |
| K01 |
15908906 |
CLEANER, AIR (INCLS 1, 13, 15, 19, 21)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, L59) (EXC K47) |
2005-2007 |
01 |
|
| K02 |
25873812 |
CLEANER, AIR (INCLS 1-3, 13, 15, 19-21)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, L59, K47) |
2005-2007 |
01 |
|
