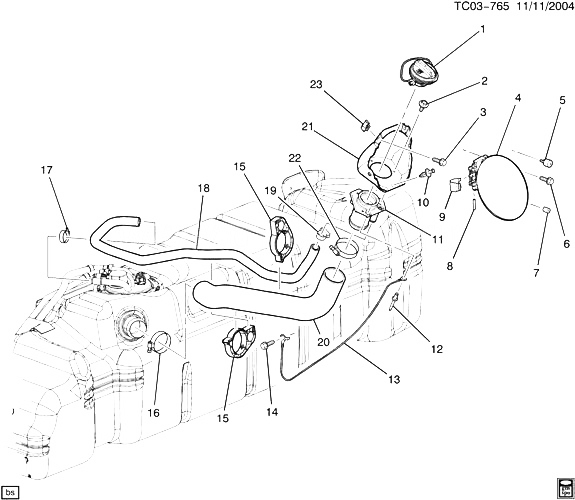

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15763226 |
CAP, F/TNK FIL (NON-LKG) (VACUUM) (ACDelco #GT230) |
CK2, 359 (LLY, E63, ZW9, 9W9) |
2005-2005 |
01 |
| 002 |
15714277 |
SCREW, W/WA AND SLR, M4.2X1.41X13, 5.4THD, 12.5 O.D., SELF TAP, ZC (PART OF 11) |
|
2004-2007 |
03 |
| 003 |
15953840 |
SCREW, PAN HD TORX W/CON WA M6X1X25 AC PT 9.8 PC 12.5-OD (F/TNK FIL PIPE HSG) (3.003)
|
2004-2007 |
02 |
|
| 005 |
15283098 |
BUMPER, F/TNK FIL DR
| CK1, 2 (E63) (EXC NYS) |
2004-2005 |
02 |
|
| 006 |
11517230 |
БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (F/TNK FIL DR)
|
2004-2007 |
02 |
|
| 007 |
14033569 |
HOSE, BULK, 7/64X25, GM6148 (PART OF 4) |
|
2004-2007 |
AR |
| 008 |
15521574 |
PIN, F/TNK FIL DR HGE (PART OF 4) (12.945) |
CK1, 2, 3 |
2004-2007 |
02 |
| 010 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (F/TNK FIL PIPE HSG)
|
2004-2007 |
01 |
|
| 011 |
15289913 |
PIPE, F/TNK FIL (INCLS 2, 12, 13, 15, 18-23) |
CK2, 359 (LLY, E63) |
2004-2005 |
01 |
| 012 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 11) |
|
2004-2005 |
|
| 013 |
|
STRAP, F/TNK FIL PIPE GND (PART OF 11) |
|
2004-2005 |
|
| 014 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TRLR WRG HARN GND)
|
2004-2007 |
01 |
|
| 015 |
15206814 |
CLAMP, F/TNK FIL VENT HOSE (PART OF 11) (3.003) |
CK2, 359 (LBZ, LLY, E63) |
2004-2006 |
01 |
| 015 |
15206814 |
CLAMP, F/TNK FIL VENT HOSE (PART OF 11) (3.003) |
CK2, 359 (LLY, E63) |
2004-2006 |
01 |
| 016 |
12338017 |
CLAMP, WORM GEAR, 28.6-76.2, STAINLESS STEEL (F/TNK FIL PIPE) (ACDelco #12338017)
|
2004-2007 |
01 |
|
| 017 |
11609970 |
CLAMP, WORM GEAR, 14.22-26.92 DIA, 13.25 THK, STAINLESS STL. (F/TNK FIL VENT HOSE) |
|
2004-2007 |
01 |
| 018 |
|
HOSE, F/TNK FIL VENT (PART OF 11) |
|
2004-2005 |
|
| 019 |
11609970 |
CLAMP, WORM GEAR, 14.22-26.92 DIA, 13.25 THK, STAINLESS STL. (PART OF 11) |
|
2004-2007 |
01 |
| 020 |
|
HOSE, F/TNK FIL (PART OF 11) |
|
2004-2007 |
|
| 021 |
15289921 |
ШЛАНГИ, F/TNK FIL PIPE (PART OF 11) |
CK2, 359 (LLY, E63) |
2005-2005 |
01 |
| 022 |
12338017 |
CLAMP, WORM GEAR, 28.6-76.2, STAINLESS STEEL (PART OF 11) (ACDelco #12338017)
|
2004-2007 |
01 |
|
| 023 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 11)
|
2004-2007 |
02 |
|
