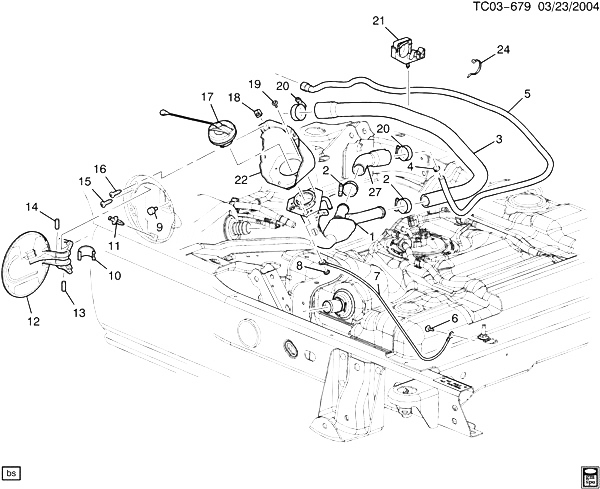

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15289914 |
PIPE, F/TNK FIL (INCLS 2-5, 7, 8, 18-22, 24, 27) |
CK2 (06-36) |
2004-2006 |
01 |
| 002 |
|
CLAMP, F/TNK FIL HOSE (PART OF 1, 3, 27) |
|
2004-2006 |
|
| 003 |
15077654 |
PIPE, F/TNK FIL (PART OF 1) (INCLS 2, 20) (INCLS CLAMP) |
CK2 (06-36) |
2004-2006 |
01 |
| 004 |
|
CLAMP, EVAP EMIS HOSE (PART OF 1) |
|
2004-2006 |
|
| 005 |
|
HOSE, EVAP EMIS CNSTR VENT (PART OF 1) |
|
2004-2006 |
|
| 006 |
11516872 |
BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (F/TNK FIL PIPE GND) |
|
2004-2006 |
01 |
| 007 |
|
STRAP, F/TNK GND (PART OF 1) |
|
2004-2006 |
|
| 008 |
|
RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) |
|
2004-2006 |
|
| 009 |
15283098 |
BUMPER, F/TNK FIL DR
| CK1, 2 (06-36) |
2004-2006 |
02 |
|
| 013 |
14033569 |
HOSE, BULK, 7/64X25, GM6148 (PART OF 12) |
|
2004-2006 |
AR |
| 014 |
15521574 |
PIN, F/TNK FIL DR HGE (PART OF 12) (12.945) |
CK1, 2, 3 |
2004-2006 |
02 |
| 015 |
11513699 |
SCREW, PAN HD, TORX, M6X1X18, 12 O.D., HD PT, 9.8, PE (F/TNK FIL DR) |
|
2004-2006 |
02 |
| 016 |
15953840 |
SCREW, PAN HD TORX W/CON WA M6X1X25 AC PT 9.8 PC 12.5-OD (F/TNK FIL PIPE HSG) (3.003)
|
2004-2006 |
02 |
|
| 017 |
15225006 |
CAP, F/TNK FIL (T-TYPE TETHER) (ACDelco #15225006) (FOR VEH BUILT PRIOR TO 3/31/05, MUST ALSO ORDER ШЛАНГИ 15289921) |
CK1, 2, 359 (LM7, LQ4, LQ9, LR4) (EXC N05) |
2005-2005 |
01 |
| 017 |
15225006 |
CAP, F/TNK FIL (T-TYPE TETHER) (ACDelco #15225006) (FOR VEH BUILT PRIOR TO 3/31/05, MUST ALSO ORDER ШЛАНГИ 15289921) |
CK1, 2, 359 (LU3, L18, L33, L59) (EXC N05) |
2005-2005 |
01 |
| 017 |
25820825 |
CAP, F/TNK FIL (BUTTON TYPE TETHER) (ACDelco #GT289) |
CK1, 2, 359 (L59) (EXC N05) |
2005-2006 |
01 |
| 017 |
25862765 |
CAP, F/TNK FIL (W/2 KEYS, W/O TETHER) (0.1KGS) (ACDelco #GT264)
| CK1, 2, 359 (L59, N05) |
2005-2006 |
01 |
|
| 017 |
25862765 |
CAP, F/TNK FIL (W/2 KEYS, W/O TETHER) (0.1KGS) (ACDelco #GT264)
| CK1, 2, 359 (LM7, LQ4, LQ9, LR4, LU3, L18, L33, N05) |
2005-2006 |
01 |
|
| 018 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 1)
|
2004-2006 |
02 |
|
| 019 |
15714277 |
SCREW, W/WA AND SLR, M4.2X1.41X13, 5.4THD, 12.5 O.D., SELF TAP, ZC (PART OF 1) |
|
2004-2006 |
03 |
| 020 |
12338017 |
CLAMP, WORM GEAR, 28.6-76.2, STAINLESS STEEL (PART OF 1, 3, 27) (ACDelco #12338017)
|
2004-2006 |
01 |
|
| 021 |
15172246 |
CLIP, EVAP EMIS CNSTR HOSE (PART OF 1) |
K2 (06-36) |
2004-2006 |
01 |
| 024 |
12337820 |
STRAP, 15 TIE STRAP (PART OF 1) (ACDelco #12337820) |
|
2004-2006 |
03 |
