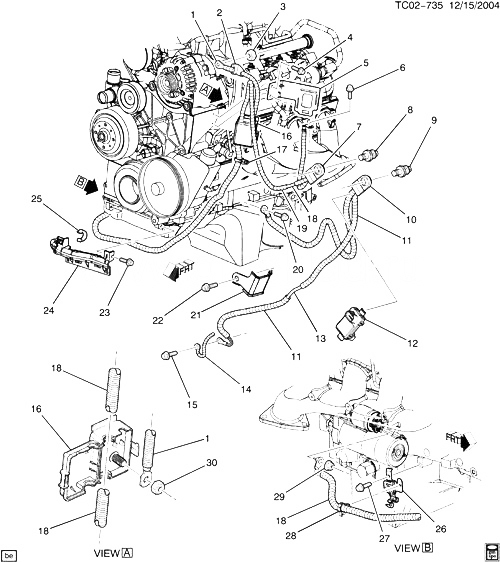

(TC02-735) - 2005 CK АККУМУЛЯТОР ПРОВОДА (LR4/4.8V,LM7/5.3T,L59/5.3Z,LQ4/6.0U,LQ9/6.0N,L33/5.3B, EXC HP2,NYS) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15321209 CABLE, GEN (INCLS 2) (286MM LG) (FUSIBLE LINK) (2.480) (ACDelco #8XX11FS) CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L33, L59) 2005-2006 01
001 15321209 CABLE, GEN (INCLS 2) (286MM LG) (FUSIBLE LINK) (ACDelco #8XX11FS) CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L33, L59) 2005-2006 01
002 COVER, GEN WIRE TERM (PART OF 1) 2005-2005
003 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) 2005-2007 01
004 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL J/BLK BRKT) 2005-2007 02
005 15045107 BRACKET, BAT POS CBL J/BLK CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) 2005-2007 01
006 12092282 БОЛТ, BAT POS CBL J/BLK (M6X1X20.4) CK1, 2, 3 2005-2007 01
007 12160210 COVER, BAT POS CBL TERM (RED) (SURROUNDS CABLE END AT BATT SIDE TERM) CK1, 2, 3 2005-2007 01
008 19115561 БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (BAT POS CBL) (8.900) (ACDelco #19115561) 2005-2007 01
009 19115561 БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (BAT NEG CBL) (8.900) (ACDelco #19115561) 2005-2007 01
010 12160209 COVER, BAT NEG CBL TERM (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) CK1, 2, 3 2005-2007 01
011 08919355 CONDUIT, ELECTRICAL, 15 FT ROLL X 1/2 I.D. (BAT NEG) 2005-2007 AR
012 15263889 MODULE, GEN BAT CONT CK1, 2 (LM7, LQ4, LQ9, LR4, L33, L59) (EXC HP2) 2005-2005 01
013 15321212 CABLE, BAT NEG (812.8MM LG) (ACDelco #2SX32-1A) CK1 (L33) (EXC T64, 9L4) 2005-2005 01
013 15321212 CABLE, BAT NEG (812.8MM LG) (ACDelco #2SX32-1A) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L59) (EXC T64, 9L4) 2005-2005 01
013 15321221 CABLE, BAT NEG (812.8MM LG, PRIMARY BAT) (ACDelco #2SX32-2) CK1, 2, 3 (LM7, LQ4, LR4, L18, L59, LQ9, 9L4) 2005-2005 01
013 88862745 CABLE, BAT NEG (AUX BAT) (ACDelco #6SD46) K259 (36) (LQ9) 2005-2005 AR
013 88862745 CABLE, BAT NEG (AUX BAT) (ACDelco #6SD46) K159 (36) (L59) 2005-2006 AR
013 88862745 CABLE, BAT NEG (AUX BAT) (ACDelco #6SD46) K159 (36) (LQ9) 2005-2006 AR
013 88864182 CABLE, BAT NEG (ALL MAKES) CK159 (36) (L59) (EXC 9L4) 2005-2005 01
013 88864182 CABLE, BAT NEG (ALL MAKES) K259 (36) (LQ9) (EXC 9L4) 2005-2005 01
013 88864182 CABLE, BAT NEG (ALL MAKES) K159 (36) (LQ9) (EXC 9L4) 2005-2006 01
013 88864183 CABLE, BAT NEG (ALL MAKES) CK159 (36) (L59, 9L4) 2005-2005 01
013 88864183 CABLE, BAT NEG (ALL MAKES) K259 (36) (LQ9, 9L4) 2005-2005 01
013 88864183 CABLE, BAT NEG (ALL MAKES) K159 (36) (LQ9, 9L4) 2005-2006 01
014 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
015 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (FWD LP WRG HARN GND) 2005-2007 01
016 12191376 BLOCK, BAT POS CBL JUNC (W/1 BOLT) CK1, 2, 3 2005-2007 01
017 19130464 STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (BAT POS CBL) 2005-2007 01
018 15372005 CABLE, BAT POS (1989.836MM LG) (ACDelco #2SX78-1B) CK1, 2 (06-36) (LM7, LQ4, LQ9, LR4, L59) (EXC NYS) 2005-2006 01
019 08919354 CONDUIT, ELECTRICAL, 15FT X.350 I.D. (BAT CBL) 2005-2007 AR
020 11513703 БОЛТ, HFH M8X1.25X18 (ENG WRG HARN GND) 2005-2007 02
021 15041964 BRACKET, BAT POS NEG CBL CK1 2005-2007 01
022 11609619 БОЛТ, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (BAT POS NEG CBL BRKT) 2005-2005 01
023 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL RET) 2005-2007 01
024 15326075 CHANNEL, BAT POS CBL (240MM LONG) CK1, 2, 3 (L33) 2005-2006 01
024 15326075 CHANNEL, BAT POS CBL (240MM LONG) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59) 2005-2006 01
025 15326303 RETAINER, BAT CBL (TO CHANNEL) CK1, 2, 3 2005-2007 03
026 15022958 CLIP, BAT POS CBL (RETAINS 9.5MM STL TUBING) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) (EXC HP2) 2005-2007 01
027 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (BAT POS CBL CLIP) 2005-2007 01
028 19130464 STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (BAT CBL) 2005-2007 01
029 21021808 ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS) CK1, 2, 3 2005-2005 01
030 12084536 ГАЙКА, BAT POS CBL EXTN CBL J/BLK LEAD (M10) (2.483) CK1, 2, 3 2005-2005 01
