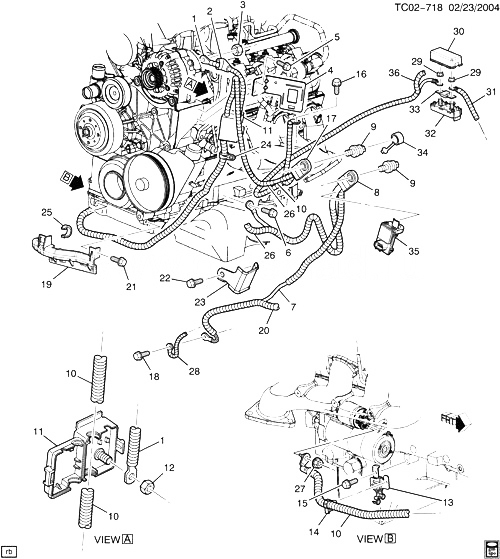

(TC02-718) - 2005 CK АККУМУЛЯТОР ПРОВОДА (LR4/4.8V,LM7/5.3T,LQ4/6.0U, QUADRASTEER NYS) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15321209 CABLE, GEN (286MM LG) (FUSIBLE LINK) (2.480) (ACDelco #8XX11FS) CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L33, L59) 2005-2005 01
001 15321209 CABLE, GEN (286MM LG) (FUSIBLE LINK) (ACDelco #8XX11FS) CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L33, L59) 2005-2005 01
002 12146808 COVER, BAT POS CBL TERM (AT BLOCK SWITCH) (BLACK) (TERMINAL BOOT COVER) (2.313) CK1, 2, 3 2005-2005 01
003 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) 2005-2005 01
004 15045107 BRACKET, BAT POS CBL J/BLK CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) 2005-2005 01
005 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL J/BLK BRKT) 2005-2005 02
006 11513703 БОЛТ, HFH M8X1.25X18 (ENG WRG HARN GND) 2005-2005 02
007 15321212 CABLE, BAT NEG (32) (ACDelco #2SX32-1A) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L59) (EXC T64, 9L4) 2005-2005 01
007 15321221 CABLE, BAT NEG (32) (PRIMARY АККУМУЛЯТОР) (ACDelco #2SX32-2) CK1, 2, 3 (LM7, LQ4, LR4, L18, L59, LQ9, 9L4) 2005-2005 01
008 12160209 COVER, BAT NEG CBL TERM (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) CK1, 2, 3 2005-2005 01
009 19115561 БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (BAT POS CBL) (8.900) (ACDelco #19115561) 2005-2005 02
010 88986783 CABLE, BAT POS (1295.4MM LG) (INCLS 30, 32) (ACDelco #2SX78-2A) CK1, 2 (LM7, LQ4, LR4, NYS) 2005-2005 01
011 12191376 BLOCK, BAT POS CBL JUNC (W/1 BOLT) CK1, 2, 3 2005-2005 01
012 12084536 ГАЙКА, BAT POS CBL EXTN CBL J/BLK LEAD (M10) (2.483) CK1, 2, 3 2005-2005 01
014 08917937 CLIP, 1/4 DIA HOLE, 5/32 IN THK MAX STK (BAT POS CBL) 2005-2005 01
015 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (BAT POS CBL CLIP) 2005-2005 01
016 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (AUX BAT POS CBL) 2005-2005 01
017 12160210 COVER, BAT POS CBL TERM (RED) (SURROUNDS CABLE END AT BATT SIDE TERM) CK1, 2, 3 2005-2005 01
018 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (FWD LP WRG HARN GND) 2005-2005 01
019 15326075 CHANNEL, BAT POS CBL (240MM LONG) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59) 2005-2005 01
020 08919355 CONDUIT, ELECTRICAL, 15 FT ROLL X 1/2 I.D. (BAT NEG) 2005-2005 AR
021 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (BAT POS CBL RET) 2005-2005 01
022 11609619 БОЛТ, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (BAT POS NEG CBL BRKT) 2005-2005 01
023 15041964 BRACKET, BAT POS NEG CBL CK1 2005-2005 01
024 08917937 CLIP, 1/4 DIA HOLE, 5/32 IN THK MAX STK (BAT POS CBL) 2005-2005 01
025 15326303 RETAINER, BAT CBL (TO CHANNEL) CK1, 2, 3 2005-2005 03
026 08919354 CONDUIT, ELECTRICAL, 15FT X.350 I.D. (BAT CBL) 2005-2005 01
027 21021808 ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS) CK1, 2, 3 2005-2005 01
028 HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2005
029 11509226 ГАЙКА, HEX W/CON WA, M8X1.25, 7.5THK, 19 O.D., 9, ZN (FUSE BLK) 2005-2005 02
030 COVER, BAT POS CBL TERM (PART OF 10) 2005-2005
031 HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2005
032 RETAINER, BAT CBL (PART OF 10) 2005-2005
033 12177251 FUSE, 125 AMP MEGA FUSE () (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) 2005-2005 01
034 12010050 COVER, BAT POS CBL TERM (CABLE END COVER AT АККУМУЛЯТОР) (RED) (HAS SLOTTED HOLE) (SNAPS ON TO АККУМУЛЯТОР BOLT) CK1, 2, 3 2005-2005 01
035 15263889 MODULE, GEN BAT CONT CK1, 2 (LM7, LQ4, LQ9, LR4, L33, L59) (EXC HP2) 2005-2005 01
036 12125347 CONDUIT, 10MM X 15 FEET (BLA/GRA NYLON) (BAT CBL) 2005-2005 AR
