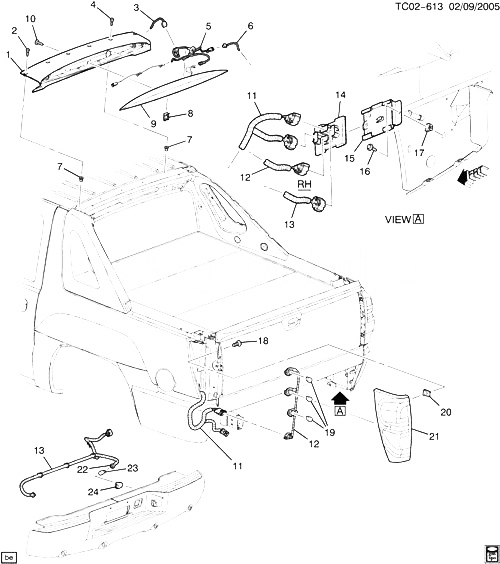

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
BAR, CARGO BOX BRIDGE CR (СМ. ГРУППУ 17.000 MOLDINGS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 5, 8, 10) |
|
2002-2006 |
|
| 002 |
11518705 |
SCREW, PAN TORX HD, W/WA SEAL, M6X1X27, 21 THD, 12.5O.D., 9.8, 6138M (CARGO BOX BRIDGE C/BAR) |
|
2002-2006 |
02 |
| 003 |
|
HARNESS, BODY WRG (СМ. ГРУППУ 13.000 ЖГУТЫ ПРОВОДОВ/КУЗОВ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2002-2006 |
|
| 004 |
11518329 |
SCR, TORX PAN HD, W/WA, M6X1X25, 18 THD, 15 OD, 9.8, 6138M, TORX (CARGO BOX BRIDGE C/BAR) |
|
2002-2006 |
06 |
| 005 |
15077257 |
HARNESS, HIGH MT S/LP CARGO BOX STOW BOX LP WRG (PART OF 1) (HAS RH AND LH CARGO LAMP CONN) (TAPE BACK UNUSED CARGO LP CONN.) |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 006 |
|
HARNESS, CARGO BOX STOW BOX LP WRG (СМ. ГРУППУ 17.000 STOWAGE BOX ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS LAMP SOCKET) |
|
2002-2006 |
|
| 007 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| K1, 2 (36) (B41) |
2004-2006 |
06 |
|
| 007 |
11518684 |
ГАЙКА, CARGO BOX BRIDGE C/BAR (M6X1X16) (HEX CHROME FREE FINISH) (17.070)
| K1, 2 (36) (B41) |
2004-2006 |
06 |
|
| 008 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 1)
|
2002-2006 |
03 |
|
| 009 |
15098920 |
LAMP, HIGH MT STOP |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 010 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 1)
|
2002-2006 |
03 |
|
| 011 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/CHASSIS ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2002-2006 |
|
| 012 |
|
HARNESS, T/LP WRG (PART OF 21) |
|
2002-2006 |
|
| 013 |
15092637 |
HARNESS, RR LIC PLT LP WRG (RR OBJECT SEN HARN) (INCLS 22) |
K159 (36) (VT5, Y91, Z75) |
2003-2006 |
01 |
| 013 |
15240525 |
HARNESS, RR LIC PLT LP WRG (INCLS 22) |
K1, 2 (36) (V43) (EXC WBH) |
2003-2006 |
01 |
| 014 |
15304995 |
BLOCK, RR LP WRG HARN JUNC
| K1, 2, 3 |
2002-2006 |
01 |
|
| 015 |
15084541 |
BRACKET, RR LP WRG HARN J/BLK |
K1, 2 (06-36) |
2002-2006 |
01 |
| 016 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RR LP WRG HARN BRKT)
|
2002-2006 |
01 |
|
| 017 |
|
ГАЙКА, RR LP WRG HARN J/BLK (PART OF PANEL, BODY SI INR LWR - 16.570) |
|
2002-2006 |
|
| 018 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (T/LP) |
|
2002-2006 |
04 |
| 019 |
12450108 |
BULB, TRADE #3157KX (PART OF 21) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON)
|
2002-2006 |
03 |
|
| 020 |
52351724 |
ГАЙКА, M4.2X1.41-.065 TO 3.8 PNLS19.5 LONG, 14 WIDE ZOR (T/LP RET) |
|
2002-2006 |
02 |
| 021 |
15096923 |
LAMP, TAIL (INCLS 12, 19) (W/HARNESS) |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 021 |
15096924 |
LAMP, TAIL (INCLS 12, 19) (W/HARNESS) |
K159 (36) (Y91, Z75) |
2002-2006 |
01 |
| 022 |
88986416 |
SOCKET, RR LIC PLT LP (PART OF 13) (GRAY) (2-WAY FEMALE) (W/LEADS) (2.596) (ACDelco #LS44)
| K1, 2, 3 |
2002-2006 |
02 |
|
| 023 |
09421330 |
BULB, TRADE#194, 12V, 2CP (RR LIC PLT LP) (ACDelco #L194) |
|
2002-2006 |
02 |
| 024 |
15082619 |
LAMP, RR LIC PLT (BLACK) (GRAINED) (MAY NEED TO REPLACE IN PAIRS DUE TO COLOR CHANGE) |
K1, 2 (36) (V43) |
2002-2006 |
02 |
| 024 |
15082619 |
LAMP, RR LIC PLT (BLACK) (GRAINED) (MAY NEED TO REPLACE IN PAIRS DUE TO COLOR CHANGE) |
K159 (36) (VT5, Y91, Z75) |
2002-2006 |
02 |
| 024 |
15082619 |
LAMP, RR LIC PLT (BLACK) (GRAINED) (MAY NEED TO REPLACE IN PAIRS DUE TO COLOR CHANGE) |
K1 (36) (VB3) |
2003-2006 |
02 |
