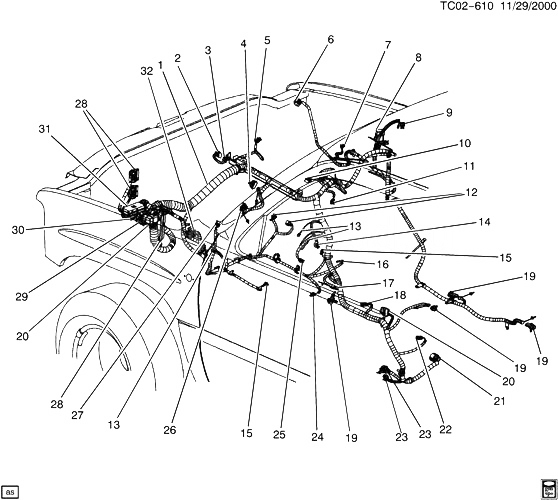

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10368708 |
HARNESS, ENG WRG (INCLS 2-32) |
CK2, 3 (L18, ML6, NF4, NF9, NT9) (EXC PTO) |
2005-2005 |
01 |
| 001 |
10368711 |
HARNESS, ENG WRG (INCLS 2-32) |
CK2, 3 (L18, M74, NC1, NC8) (EXC PTO) |
2005-2005 |
01 |
| 001 |
10368711 |
HARNESS, ENG WRG (INCLS 2-32) |
CK2, 3 (L18, M74, NF4, NF9, NT9) (EXC PTO) |
2005-2005 |
01 |
| 001 |
15200633 |
HARNESS, ENG WRG (INCLS 2-32) |
CK2 (L18, MN8) |
2005-2005 |
01 |
| 001 |
15200636 |
HARNESS, ENG WRG (INCLS 2-32) |
CK2, 3 (L18, ML6, NC8) (EXC PTO) |
2005-2005 |
01 |
| 002 |
15306119 |
CONNECTOR, SEN-THROT POSN (PART OF 1) (GRAY) (10-WAY FEMALE W/LEADS) (2.530) (ACDelco #PT1280) |
CK2 |
2003-2005 |
01 |
| 003 |
15306071 |
CONNECTOR, GEN (PART OF 1) (NATURAL) (1-WAY FEMALE, W/LEADS) (ACDelco #PT1235) |
CK2, 3 |
2003-2005 |
01 |
| 003 |
15306329 |
CONNECTOR, GEN (PART OF 1) (BEIGE) (2-WAY FEMALE) (4-WAY BASE W/LEADS) (ACDelco #PT1383) |
CK1, 2, 3 |
2001-2005 |
01 |
| 004 |
88988814 |
CONNECTOR, INJR-FUEL (1IN) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS MICRO 064) (ACDelco #PT2135) |
CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L18) |
2002-2005 |
08 |
| 004 |
88988963 |
CONNECTOR, INJR-FUEL (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.8 SERIES) (2.530) (ACDelco #PT2183) |
CK2, 3 |
2004-2005 |
08 |
| 005 |
12117372 |
CONNECTOR, INLINE-TO ELEK TRACT CONT MDL (PART OF 1) (BLACK) (10-WAY MALE) (2.530) (ACDelco #PT505) |
CK2, 3 |
2001-2005 |
01 |
| 005 |
88987977 |
CONNECTOR, INLINE-TO ELEK TRACT CONT MDL (PART OF 1) (16-WAY F W/O LEADS INCLS CONN, TPA, CPA, CBL STRAIN RELIEF LOC) (3.670) |
CK1, 2, 3 |
2001-2005 |
01 |
| 006 |
15306113 |
CONNECTOR, SEN-MASS AIRFLOW (SHROUD HAS ROUND EDGES, PURPLE, RECTANGLE) (PART OF 1) (BLACK) (5-WAY FEMALE) (W/LEADS) (ACDelco #PT1274) |
CK1, 2, 3 |
2002-2007 |
01 |
| 006 |
88953157 |
CONNECTOR, SEN-MASS AIRFLOW (SHROUD HAS SHARPER EDGES, WHITE) (PART OF 1) (5-WAY FEMALE 090II SLD) (W/ LEADS) (ACDelco #PT1504) |
CK2, 3 (ML6, M74) |
2004-2005 |
01 |
| 007 |
15306302 |
CONNECTOR, SW-A/C CYCLING SW (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.710) (ACDelco #PT1357) |
CK1, 2, 3 |
2001-2005 |
01 |
| 008 |
|
SOLENOID, SECD AIR INJN SW VLV SOL VLV (PART OF 1) |
|
2002-2007 |
|
| 009 |
12126486 |
CONNECTOR, MDL-BLO MOT CONT (PART OF 1) (BLACK) (3-WAY FEMALE) (W/LEADS) (2.694) (ACDelco #PT756) |
CK1, 2, 3 |
2001-2005 |
01 |
| 010 |
88987997 |
CONNECTOR, SEN-MAP (PART OF 1) (GRAY) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT1799)
| CK1, 2, 3 |
2001-2007 |
01 |
|
| 013 |
|
STRAP, ENG WRG HARN (PART OF 1) |
|
2001-2007 |
|
| 014 |
88988301 |
CONNECTOR, SEN-ENG OIL PRESS GA (ROUND) (PART OF 1) (BLACK) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT1825) |
CK1, 2, 3 |
2003-2007 |
01 |
| 015 |
12102621 |
CONNECTOR, SEN-KNOCK (ENG HARN) (PART OF 1) (GRAY) (1-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT308) |
CK1, 2, 3 |
2001-2006 |
02 |
| 015 |
12102747 |
CONNECTOR, SEN-KNOCK (PART OF 1) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2, 3 |
2001-2005 |
01 |
| 015 |
15306376 |
CONNECTOR, SEN-KNOCK (PART OF 1) (1-WAY FEMALE) (W/LEADS) (M/P 150) (ACDelco #PT1428) |
CK2, 3 (L18) |
2003-2005 |
02 |
| 016 |
11502848 |
NUT-HEX STYLE 2 (TO STARTER) (PART OF 1) |
|
2001-2007 |
01 |
| 017 |
|
CONNECTOR, INLINE-TO TRANS (INPUT SENSOR) (PART OF 1) |
|
2001-2007 |
|
| 020 |
|
CONNECTOR, PTO) (PART OF 1 |
|
2001-2007 |
|
| 021 |
12186609 |
CONNECTOR, INLINE-TO TRANS (PART OF 1) (BLACK) (20-WAY FEMALE M/P 100) (W/O LEADS) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 021 |
15305857 |
CONNECTOR, INLINE-TO TRANS (PART OF 1) (14-WAY FEMALE) (W/LEADS) (ACTUALLY 20-WAY W/6 CAVITIES MOLDED) (ACDelco #PT1008) |
CK1, 2, 3 |
2001-2005 |
01 |
| 022 |
15306187 |
CONNECTOR, SEN-VEH SPD (GT150) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (ACDelco #PT1345) |
CK1, 2, 3 |
2001-2007 |
02 |
| 023 |
12085485 |
CONNECTOR, SW-B/U LP (PART OF 1) (BROWN) (2-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT107) |
CK1, 2, 3 |
2001-2007 |
01 |
| 023 |
88987498 |
CONNECTOR, SW-PARK/NEU POSN (PART OF 1) (11-WAY FEMALE) (W/O LEADS) (GT 150) |
CK2, 3 (L18) |
2004-2005 |
01 |
| 024 |
12102747 |
CONNECTOR, SEN-ENG OIL LVL (PART OF 1) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2, 3 |
2001-2005 |
01 |
| 024 |
88953151 |
CONNECTOR, SEN-ENG OIL LVL (PART OF 1) (NATURAL) (2-WAY FEMALE W/LEADS) |
CK2, 3 (L18) |
2001-2005 |
01 |
| 025 |
15306120 |
CONNECTOR, SEN-CR/SHF POSN (PART OF 1) (NATURAL) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT1281) |
CK1, 2, 3 |
2001-2005 |
01 |
| 026 |
12102754 |
CONNECTOR, COIL-IGN (ENG HARN) (PART OF 1) (GRAY) (7-WAY FEMALE) (W/LEADS) (2.530) (ACDelco #PT381) |
CK1, 2, 3 |
2002-2005 |
02 |
| 026 |
88987184 |
CONNECTOR, COIL-IGN (GT150) (PART OF 1) (BLACK) (4-WAY FEMALE) (W/LEADS) (ACDelco #PT1627) |
CK1, 2, 3 |
2001-2006 |
04 |
| 027 |
12117025 |
CONNECTOR, SEN-CM/SHF POSN (SIDE TABS) (PART OF 1) (BLACK) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT420) |
CK1, 2 |
2004-2005 |
01 |
| 027 |
88986451 |
CONNECTOR, SEN-CM/SHF POSN (W/O SIDE TABS) (PART OF 1) (BLACK) (3-WAY FEMALE MP150) (W/LEADS) (2.535) (ACDelco #PT1604) |
CK1, 2, 3 |
2003-2005 |
01 |
| 028 |
12167308 |
CONNECTOR, MDL-PWRT CONT (PART OF 1) (INCLS SEAL, COVER, RETS) (W/O LEADS) (80-WAY FEMALE USE TERM 12084912 18 GA TERM 12084913 20 GA) |
CK1, 2, 3 |
2001-2007 |
02 |
| 028 |
12176408 |
RETAINER, ECM WRG HARN CONN (PART OF 1) (BLUE) (RETAINS 40-WAY CONN) |
CK1, 2, 3 |
2001-2007 |
02 |
| 029 |
12085487 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (4-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT109) |
CK1, 2, 3 |
2002-2005 |
01 |
| 029 |
12085669 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (1-WAY MALE) (W/LEADS) (ACDelco #PT1223) |
CK1, 2, 3 |
2001-2006 |
01 |
| 029 |
12101827 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (8-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT219)
| CK1, 2, 3 |
2003-2006 |
01 |
|
| 029 |
12101852 |
CONNECTOR, INLINE-TO I/P HARN (M/P 150) (PART OF 1) (BLACK) (6-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT244) |
CK1, 2, 3 |
2001-2006 |
01 |
| 029 |
12129135 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (4-WAY MALE) (W/O LEADS) (2.694) |
CK1, 2, 3 |
2003-2006 |
01 |
| 029 |
12129490 |
CONNECTOR, INLINE-TO I/P HARN (FROM LH FRT DR) (PART OF 1) (BLACK) (3-WAY MALE) (W/O LEADS) (CLIP SLOT) (13.100) |
CK1, 2 |
2001-2006 |
01 |
| 029 |
15300003 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (3-WAY MALE) (W/O LEADS) (M/P 280-BODY ONLY) |
K1, 2, 3 |
2003-2005 |
01 |
| 029 |
15304692 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (18-WAY FEMALE) (W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 029 |
15306039 |
CONNECTOR, INLINE-TO I/P HARN (SEAT HARN TO BODY HARN, GT150/280) (PART OF 1) (16-WAY MALE W/LEADS) (16.490) (ACDelco #PT1199) |
CK1, 2, 3 |
2003-2006 |
01 |
| 029 |
15306231 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (GRAY) (24-WAY MALE W/O LEADS) (9.656) |
CK1, 2, 3 |
2003-2006 |
01 |
| 029 |
15306371 |
CONNECTOR, INLINE-TO I/P HARN (FROM HDLNG HARN, GT150) (PART OF 1) (BLACK) (16-WAY MALE) (W/LEADS) (13.100) (ACDelco #PT1423) |
CK1, 2, 3 |
2002-2006 |
01 |
| 029 |
15317322 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (GRAY) (22-WAY MALE) (W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 029 |
19151490 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (10-WAY MALE) (W/O LEADS) (W/TPA CAVITY PLUG) (13.100) |
CK1, 2, 3 |
2003-2007 |
01 |
| 029 |
19153767 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) |
CK1, 2 (06-36) |
2003-2006 |
01 |
| 029 |
88986252 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (12-WAY MALE) (W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 029 |
88986267 |
CONNECTOR, INLINE-TO I/P HARN (FROM FUSE BLK BRK JPR) (PART OF 1) (BLACK) (34.6MM WIDE) (12-WAY FEMALE) (W/LEADS) |
CK1, 2, 3 |
2003-2007 |
01 |
| 029 |
88987501 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (12-WAY MALE GT) (W/O LEADS) |
K1, 2, 3 |
2003-2006 |
01 |
| 029 |
88987519 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (16-WAY MALE) (W/O LEADS) |
CK1, 2, 3 |
2004-2005 |
01 |
| 029 |
88987998 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) |
CK1, 2, 3 |
2003-2007 |
02 |
| 029 |
88988307 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (40-WAY MALE) (W/CAM LVR, TPA STABLZR) |
CK1, 2, 3 |
2001-2007 |
01 |
| 029 |
89047431 |
CONNECTOR, INLINE-TO I/P HARN (PART OF 1) (BLACK) (38-WAY FEMALE) (W/O LEADS) |
CK1, 2 |
2005-2006 |
01 |
| 030 |
12065172 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (1-WAY FEMALE M/P280) (2.535) |
CK1, 2, 3 |
2003-2006 |
01 |
| 030 |
12162000 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLACK) (2-WAY MALE M/P150 W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 030 |
12167120 |
CONNECTOR, INLINE-TO CHAS HARN (M/P 150) (PART OF 1) (BLACK) (2-WAY MALE) (W/LEADS) (OVAL) (4.720) (ACDelco #PT786) |
CK1, 2, 3 |
2003-2006 |
01 |
| 030 |
15326842 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLACK) (10-WAY FEMALE) (W/O LEADS) (W/O CPA) (13.100) |
CK1, 2, 3 (EXC JL4) |
2003-2006 |
01 |
| 030 |
15326843 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLACK) (10-WAY FEMALE) (W/O LEADS) (W/ CPA) |
CK1, 2, 3 |
2003-2007 |
01 |
| 030 |
19151508 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLACK) (38-WAY MALE) (W/STABILIZER, TPA CAVITY PLUGS) (ACDelco #PT2389) |
CK1, 2 (06-36) |
2001-2006 |
01 |
| 030 |
19167005 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLACK) (24-WAY MALE) (W/CAV PLGS, TPAS PLR) (W/O LEADS) |
CK1, 2, 3 (JL4) |
2004-2006 |
01 |
| 030 |
88953158 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLUE) (12-WAY MALE W/LEADS) (ACDelco #PT1505) |
CK1, 2, 3 |
2001-2006 |
01 |
| 030 |
88953290 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (NATURAL) (12-WAY MALE W/LEADS) (ACDelco #PT1621) |
CK1, 2, 3 |
2003-2005 |
01 |
| 030 |
88986245 |
CONNECTOR, INLINE-TO CHAS HARN (GT280) (PART OF 1) (BLACK) (10-WAY MALE) (W/LEADS, GT280) (ACDelco #PT1595) |
CK1, 2 |
2003-2006 |
01 |
| 030 |
88986255 |
CONNECTOR, INLINE-TO CHAS HARN (PART OF 1) (BLACK) (8-WAY FEMALE) (W/LEADS) (3.454) (ACDelco #PT1572)
| CK259 |
2003-2006 |
01 |
|
| 031 |
12193906 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BLACK) (68-WAY FEMALE W/O LEADS) |
CK1, 2, 3 |
2001-2005 |
01 |
| 031 |
12193914 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BLACK) (32-WAY FEMALE W/O LEADS) |
CK1, 2, 3 |
2001-2005 |
01 |
| 031 |
12193916 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (RED) (32-WAY FEMALE W/O LEADS) |
CK1, 2, 3 |
2001-2005 |
01 |
| 031 |
12193929 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (GREEN) (6-WAY FEMALE W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 031 |
15306105 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (CREAM) (6 WAY FEMALE W/LEADS) (2.530) (ACDelco #PT1266) |
CK1, 2, 3 |
2003-2006 |
01 |
| 031 |
15306106 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BROWN) (6-WAY FEMALE W/LEADS) (2.530) (ACDelco #PT1267) |
CK1, 2, 3 (V92, Z82) |
2002-2006 |
01 |
| 031 |
15306107 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BLACK) (6-WAY F W/LEADS) (2.530) (ACDelco #PT1268) |
CK1, 2, 3 |
2003-2005 |
01 |
| 031 |
15306133 |
CONNECTOR, BLK-ACSRY WRG JUNC (M/P 480) (PART OF 1) (BLACK) (2-WAY MALE W/LEADS) (9.276) (ACDelco #PT1294) |
CK1, 2, 3 |
2001-2005 |
01 |
| 031 |
19167007 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (RED) (32-WAY FEMALE UNSEALED W/O LEADS W/TPAS) |
CK1, 2, 3 |
2001-2005 |
01 |
| 031 |
19167008 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BLUE) (8-WAY FEMALE SEALED W/LEADS) (14GA WIRES) (13.100) (ACDelco #PT2274) |
CK1, 2, 3 |
2001-2006 |
01 |
| 031 |
88986446 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (2-WAY FEMALE W/LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 031 |
88988945 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (LT GRAY) (68-WAY FEMALE W/O LEADS) |
CK1, 2, 3 |
2002-2006 |
01 |
| 031 |
89046825 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (NATURAL) (12-WAY FEMALE W/O LEADS) (ACDelco #7436) |
CK1, 2, 3 |
2004-2006 |
01 |
| 031 |
89046826 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (BROWN) (12-WAY FEMALE W/O LEADS) |
CK1, 2, 3 |
2003-2006 |
01 |
| 032 |
15305916 |
CONNECTOR, MOT-THROT ACTR (PART OF 1) (BLACK) (10-WAY FEMALE W/LEADS) (3.885) (ACDelco #PT1105) |
CK2 |
2003-2006 |
01 |
| 032 |
88986255 |
CONNECTOR, MOT-THROT ACTR (PART OF 1) (BLACK) (8-WAY FEMALE) (W/LEADS) (3.454) (ACDelco #PT1572)
| CK1, 2, 3 |
2003-2005 |
01 |
|
