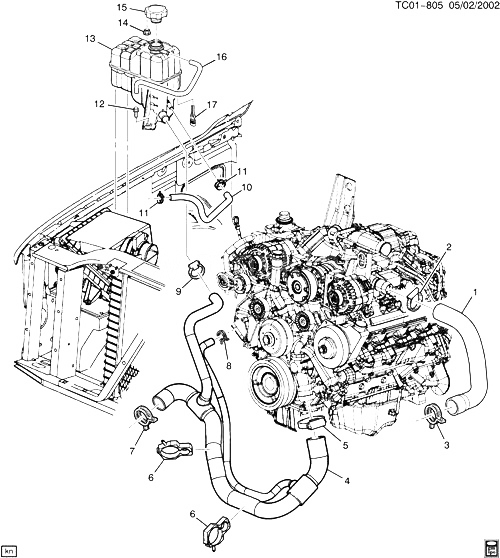

(TC01-805) - 2005 CK2,3 ТРУБКИ РАДИАТОРА (LLY/6.6-2) CADILLAC - ESCALADE EXT (AWD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15792832 HOSE, RAD INL (PHY IDENT URT) (INCLS 2, 3) (INCL CLAMP) CK2, 3 (LLY) 2004-2005 01
001 15792832 HOSE, RAD INL (PHY IDENT URT) (INCLS 2, 3) (INCL CLAMP) CK2, 3 (LLY) 2005-2005 01
002 11562100 CLAMP, RAD INL HOSE (ПРУЖИНАBAND, NOMINAL DIA 56MM, 20 WIDTH, MATL 6298M, ROBO FINISH) (PART OF 1) (8.948) CK2, 3 (LLY) 2005-2005 02
002 15032531 CLAMP, RAD INL HOSE (PART OF 1) (DIA 49MM, 20 WIDTH) CK2, 3 (LLY) 2005-2005 01
003 11562100 CLAMP, RAD INL HOSE (ПРУЖИНАBAND, NOMINAL DIA 56MM, 20 WIDTH, MATL 6298M, ROBO FINISH) (PART OF 1) (8.948) CK2, 3 (LLY) 2005-2005 02
003 15032531 CLAMP, RAD INL HOSE (PART OF 1) (DIA 49MM, 20 WIDTH) CK2, 3 (LLY) 2004-2005 01
004 15792828 HOSE, RAD OTLT (PHY IDENT URN) (INCLS 5-9) (INCL CLAMPS, TEE, PROTECTOR) CK2, 3 (LLY) 2005-2005 01
005 15199607 CLAMP, RAD OTLT HOSE (PART OF 4) (2.15-2.67) CK2, 3 (LLY) 2005-2005 01
006 15075709 CLIP, RAD OTLT HOSE (PART OF 4) (DIA 52.9-56.3 AND 25.18 HOLES, NYLON GMP) CK2, 3 (LLY) 2005-2005 01
007 15032531 CLAMP, RAD OTLT HOSE RAD (PART OF 4) (DIA 49MM, 20 WIDTH) CK2, 3 (LLY) 2004-2005 01
008 11517133 CLAMP, ПРУЖИНА, 22-26MM, 24 NOM., BLK (PART OF 4) 2001-2005 01
009 15768684 CLAMP, RAD SURGE TK OTLT HOSE (PART OF 4) (31-37MM DIA RANGE) CK1, 2, 3 2001-2005 01
010 15023969 HOSE, RAD SURGE TK INL (INCLS 11) (349.1X165.0X151.9) CK2, 3 (LLY) 2004-2005 01
011 15012559 CLAMP, SPR (18.4MM TO 21.6MM) NOMINAL SIZE 20MM, STAMPED 20 (PART OF 10) (1.240) 2001-2005 02
012 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (RAD SURGE TK) 2001-2005 01
013 15808714 TANK, RAD SURGE (INCLS 16, 17) (INCLS HOSE, SWITCH AND COVER) (ACDelco #15808714) CK2, 3 (LLY) 2005-2005 01
014 11508388 ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (RAD SURGE TK) (8.915) 2001-2005 01
015 15075118 CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98) CK1, 2, 3 2001-2005 01
016 HOSE, RAD SURGE TK OVFL (PART OF 13) 2005-2005
017 SWITCH, LOW ENG COOL LVL (PART OF 13) 2005-2005
